Bopla BoLink BL 704015 WL2 DO-9003 carcasa universal, policarbonato, blanca, 70,4 x 42,4 x 15,5 mm, IP65, UL 94 V-0, 1 ud. 16174363.HMT1

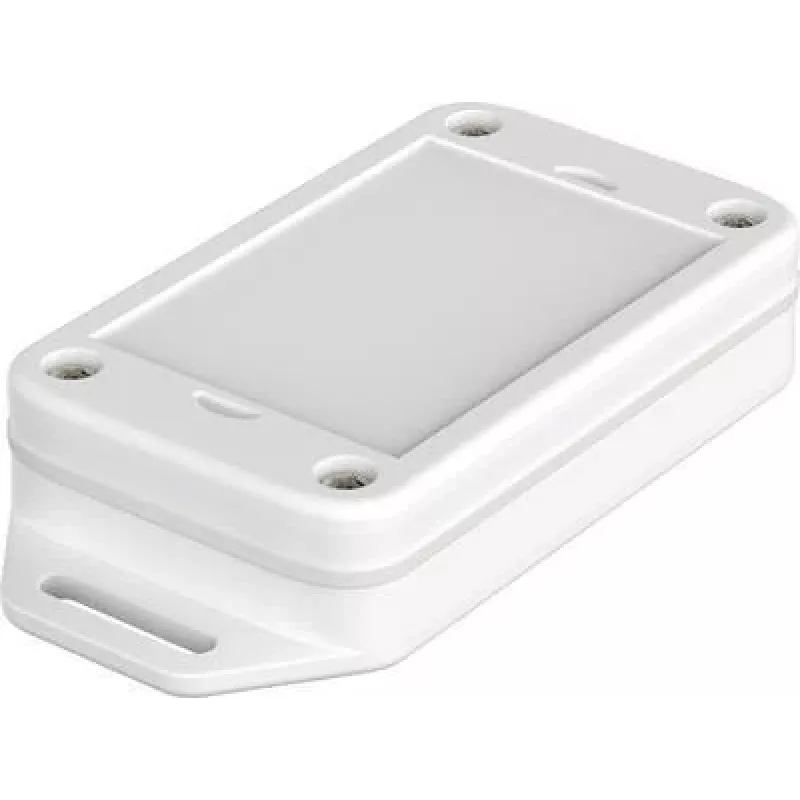

The Bopla BoLink BL 704015 WL2 DO-9003 stands out with its recessed lid area, purpose-built for membrane keypads or front foils, making it a ready-to-use housing for custom control interfaces. Its compact 70.4 x 42.4 x 15.5 mm footprint suits space-constrained electronics, while the flat lid and four stainless steel screws ensure a clean, secure closure.

Highlights

• Material: Polycarbonate (PC) in white (RAL 9003)
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Recessed area for membrane keypads or front foils
• Internal mounting bosses for PCBs
• Impact resistance: IK07
• Operating temperature range: -40 °C to +80 °C

In daily use

This universal enclosure is designed for wall or screw mounting and includes a polyurethane (PUR) gasket to maintain the IP65 seal. The flat lid and stainless steel screws provide reliable closure, while the internal bosses simplify PCB installation. Whether for industrial sensors, IoT devices, or custom controllers, the BoLink series offers a durable and versatile housing solution.

Full specifications

• External dimensions: 70.4 mm (L) x 42.4 mm (W) x 15.5 mm (H)
• Material: Polycarbonate (PC)
• Colour: White (RAL 9003)
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Operating temperature range: -40 °C to +80 °C
• Impact resistance: IK07
• Gasket material: Polyurethane (PUR)
• Lid fastening: 4x stainless steel screws
• Mounting type: Wall / screw mounting
• Special features: Recessed area for membrane keypads/front foils, internal mounting bosses for PCBs
• Product series: BoLink
• Supplied quantity: 1 piece

Final note

The Bopla BoLink BL 704015 WL2 DO-9003 combines a compact, robust design with practical features for custom electronics, backed by Bopla's engineering expertise.
