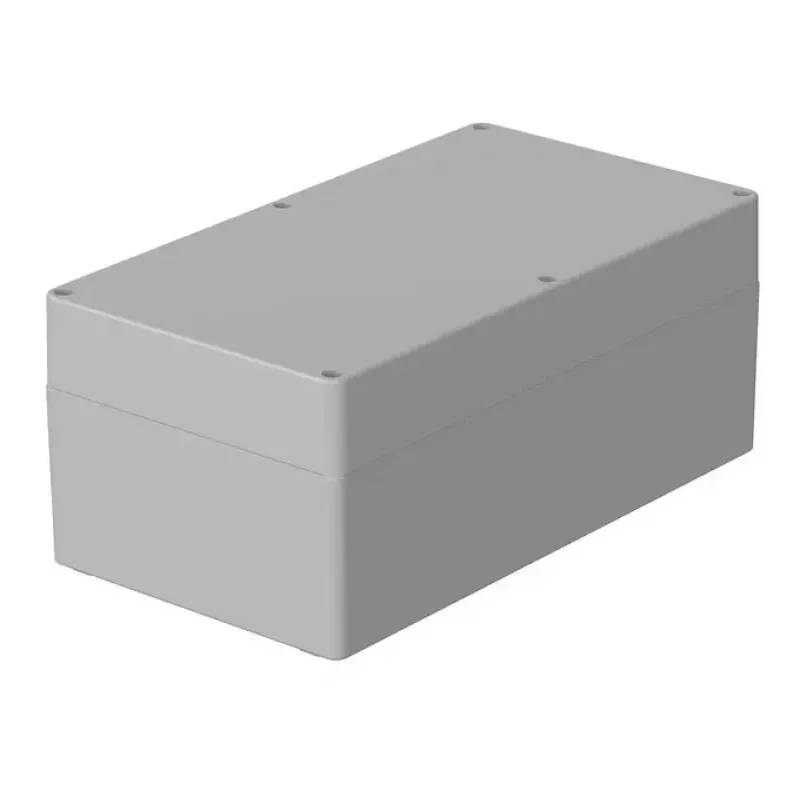

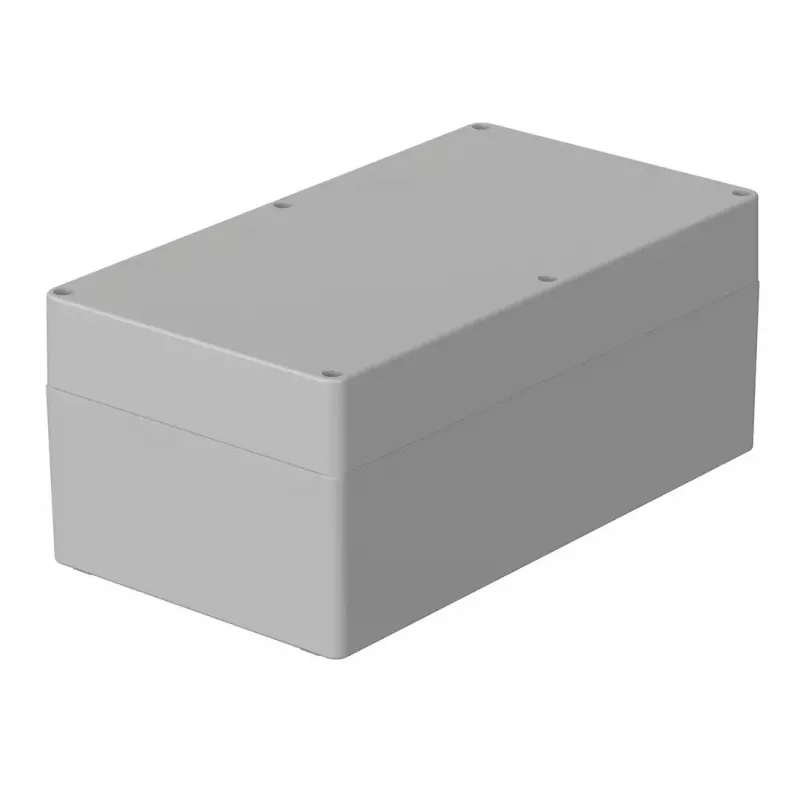

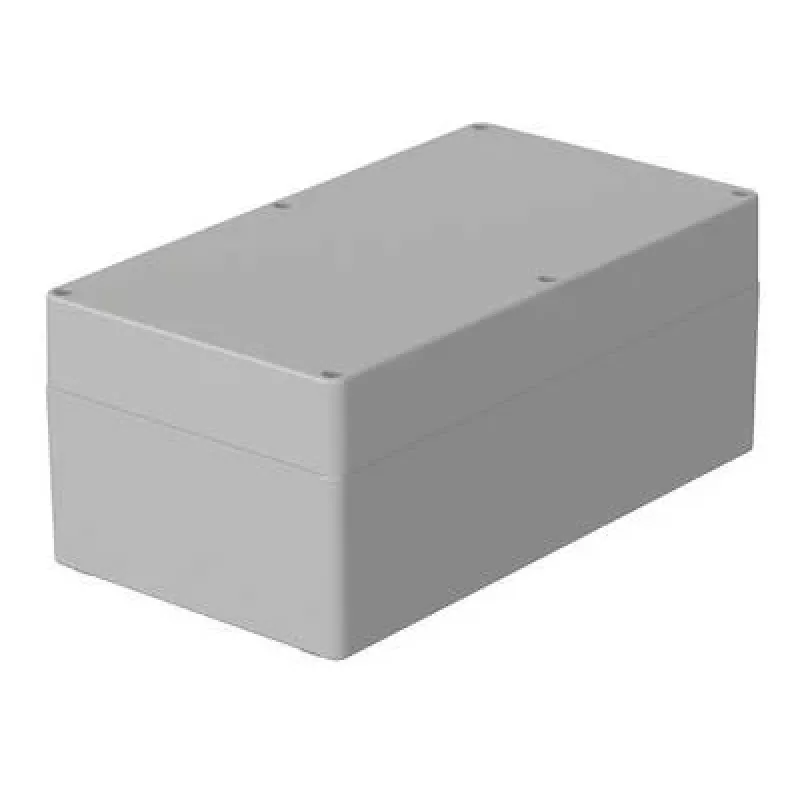

Bopla EUROMAS M 255 carcasa universal 360 x 200 x 150 mm policarbonato gris claro IP65 02255094

Industrial and electrical components need robust protection against dust, moisture, and mechanical impact. The Bopla EUROMAS M 255 universal enclosure provides a secure housing solution with a light grey polycarbonate body, offering high impact resistance and reliable sealing for demanding environments.

Who is it for

This enclosure is ideal for electrical engineers, panel builders, and system integrators who require a durable, wall-mountable housing for control electronics, DIN rail components, or PCB assemblies in industrial settings.

Main features

• Material: Polycarbonate (PC), light grey (RAL 7035)
• Dimensions: 360 x 200 x 150 mm (W x H x D)
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Impact resistance: IK08
• UV resistant and halogen-free
• Stainless steel lid screws and polyurethane gasket
• Internal mounting bosses for DIN rails, mounting plates, and PCBs
• Opaque lid

Specifications

• Series: EUROMAS M
• Type: Universal enclosure
• Operating temperature range: -40 °C to +100 °C
• Mounting type: Wall mountable

Tips

For outdoor or washdown applications, ensure proper cable gland selection to maintain the IP65 rating. The enclosure can be combined with Bopla mounting plates and DIN rail kits for flexible internal layout.
