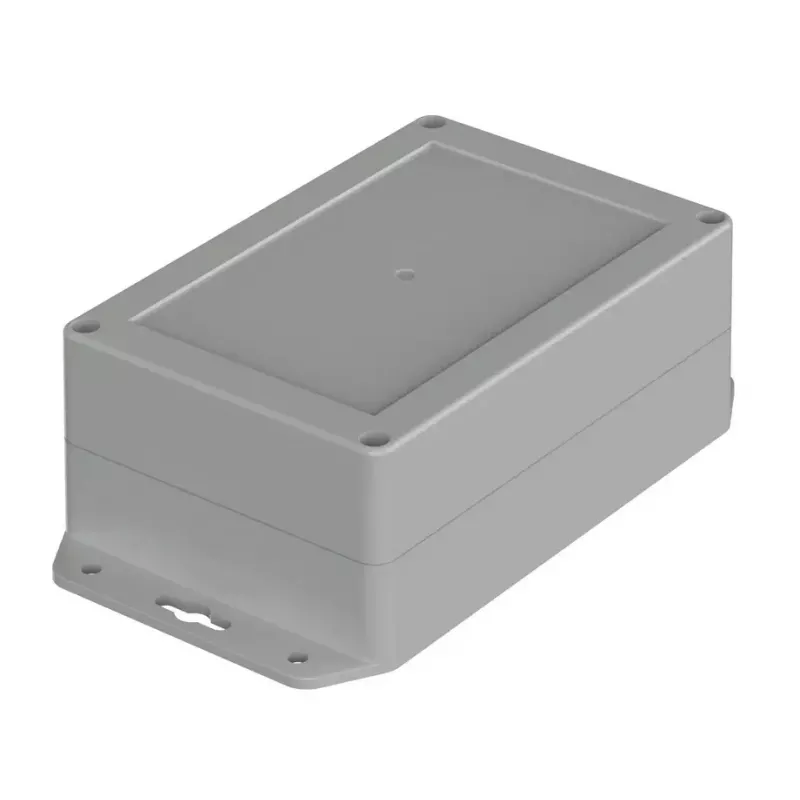

Bopla Euromas X, XT 151006 WL 7035 Carcasa electrónica 150 x 100 x 60 mm ABS gris claro (RAL 7035) 07815106

The Bopla Euromas X, XT 151006 WL 7035 is an electronics enclosure engineered for robust protection in industrial environments. Its IP65 rating ensures dust-tight performance and resistance against water jets, making it ideal for demanding applications.

Advantages

The enclosure features a modern, robust design with a recessed lid area, providing both aesthetic appeal and functional durability. Integrated mounting bosses allow for easy installation of PCBs or mounting plates, while screw channels outside the sealed area enable wall mounting without compromising the IP65 seal. The polyurethane gasket and polyamide lid screws ensure a reliable closure, and the ABS material offers a balance of strength and impact resistance.

Suitable for

• Industrial electronics
• Control systems
• IoT devices
• Measurement technology

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 150 x 100 x 60 mm
• Ingress protection: IP65
• Operating temperature: -40 °C to +80 °C
• Flammability rating: UL 94 HB

Recommendations

For reliable protection of sensitive electronics in harsh conditions, the Euromas X/XT enclosure provides a proven solution with its sealed design and versatile mounting options.
