Cable de alimentación interno DeLOCK 85236 0,2 m

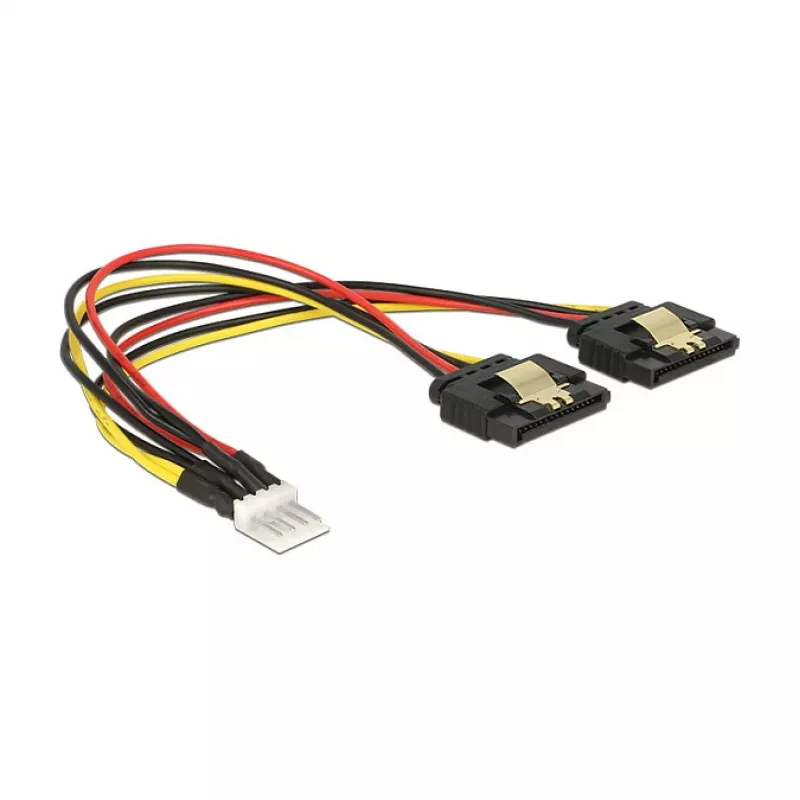

The DeLOCK 85236 internal power cable is a 0.2 m cable with a 4-pin Floppy (Berg) connector on one end and two 15-pin SATA power connectors on the other. It allows a single floppy-style 4-pin power output from a PC power supply to feed power to two SATA devices. The cable is black and is intended for internal use in computer cases where a short, space-saving connection is required.

Advantages

The cable supports powering two SATA devices from one floppy 4-pin connector, saving unused PSU connectors and simplifying cable routing. Metal locking clips on the SATA connectors provide a secure, audible click when connected. Its 0.2 m length reduces cable clutter inside the case and is suitable for compact builds.

Suitable for

• Connecting two SATA hard drives or SSDs when only a floppy 4-pin PSU connector is available
• Small form factor or compact PC cases with limited cable length requirements
• Upgrading or adding internal storage where extra SATA power connectors are lacking

Key specifications

• Cable length: 0.2 m
• Connector 1: Floppy (4-pin)
• Connector 2: 2 × SATA (15-pin)
• Product colour: Black
• Brand: DELOCK, MPN: 85236, EAN: 4043619852369

How to use

Power off the computer and disconnect it from mains before installation. Plug the floppy 4-pin connector into the matching power output on the power supply, then connect each SATA 15-pin connector to the power receptors on the SATA devices. Ensure the metal clips engage to lock the connectors in place. Reconnect mains power and power on the system to verify the devices receive power.

Recommendations

Use this cable only for internal PC power connections. Do not force connectors; ensure correct orientation before mating. Avoid using the cable beyond its rated purpose and check that the PSU floppy connector can provide sufficient current for both SATA devices.
