helos Cat.6a Superflex Cat.7 Cable en bruto GHMT AWG 26/7 Cable de conexión 363676, 0,15 m, gris

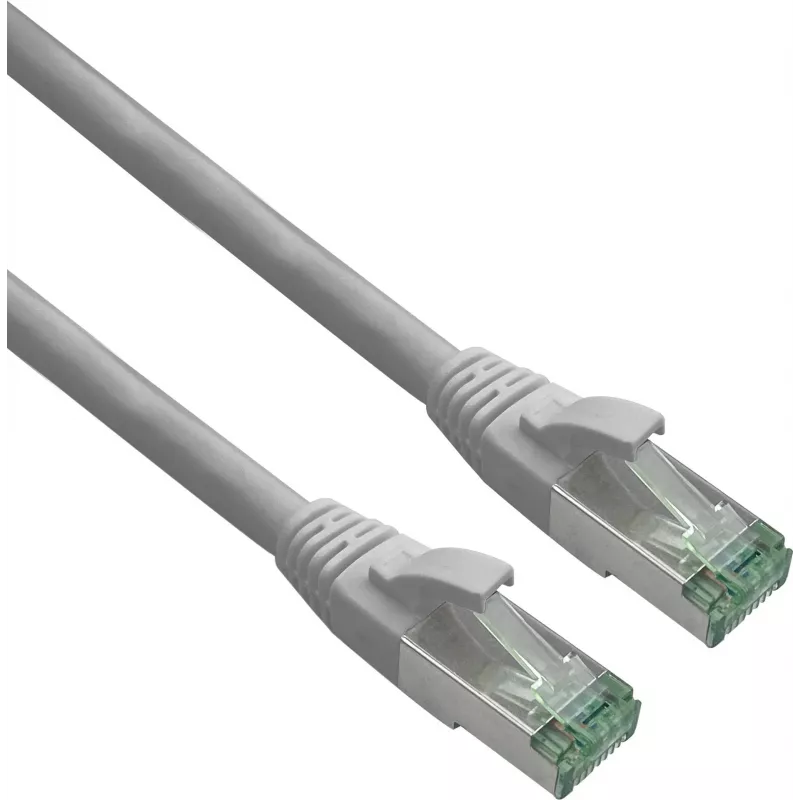

The helos Cat.6a Superflex Cat.7 Raw Cable GHMT AWG 26/7 Patch Cable 363676 is a 0.15 m grey network cable with RJ-45 connectors on both ends. It supports data transfer rates up to 10000 Mbit/s and frequencies up to 600 MHz.

Key features

• Cat.7 raw cable with Cat.6A RJ-45 connectors
• Halogen-free LSZH and TPE jacket
• Gold-plated contacts
• Nickel connector shielding
• S/FTP (S-STP) shielding
• Power over Ethernet support: PoE+, PoE++ (4PPoE)
• Plug & Play
• GRS-certified (Global Recycled Standard)

Specifications

• Brand: helos
• MPN: 363676
• Product colour: Grey
• Cable length: 0.15 m
• Cable standard: Cat7
• Cable shielding: S/FTP (S-STP)
• Connector 1: RJ-45
• Connector 2: RJ-45
• Connector 1 gender: Male
• Connector 2 gender: Male
• Connector 1 form factor: Straight
• Connector 2 form factor: Straight
• Contact plating: Gold
• Connector shielding material: Nickel
• Jacket material: Low smoke halogen-free (LSZH), Thermoplastic Elastomer (TPE)
• Cable shape: Round
• Conductor type: Flexible
• Conductor material: Copper
• Cable class: Ea
• Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
• Network standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• AWG cable size: 26/7
• Data transfer rate: 10000 Mbit/s
• Frequency: 600 MHz
• Bending radius (min.): 2.4 cm
• Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
• Operating temperature: -20 - 65 °C
• Storage temperature: -20 - 80 °C
• Contains no: Halogen
• Conformity certificates: REACH, RoHS, WEEE
• Outer diameter: 6 mm
• Quantity per pack: 1 piece(s)
