Caja de distribución FTTH Digitus DN-968914

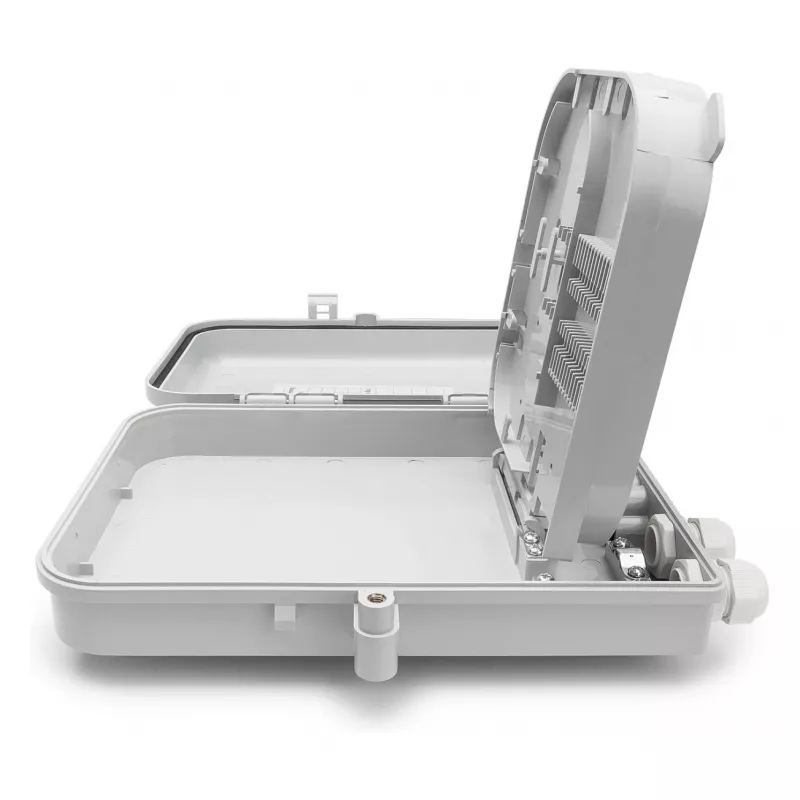

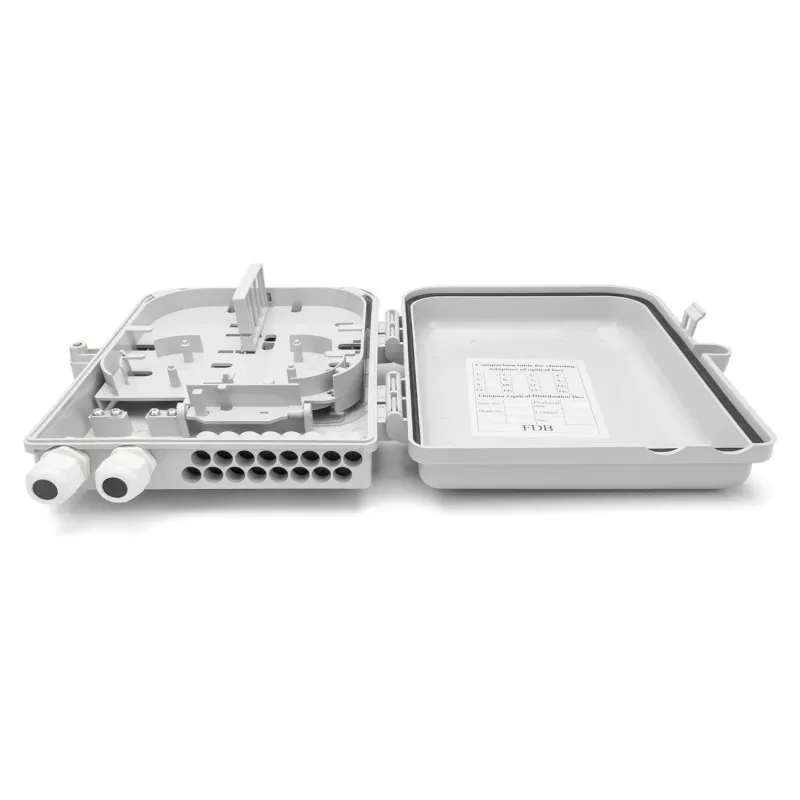

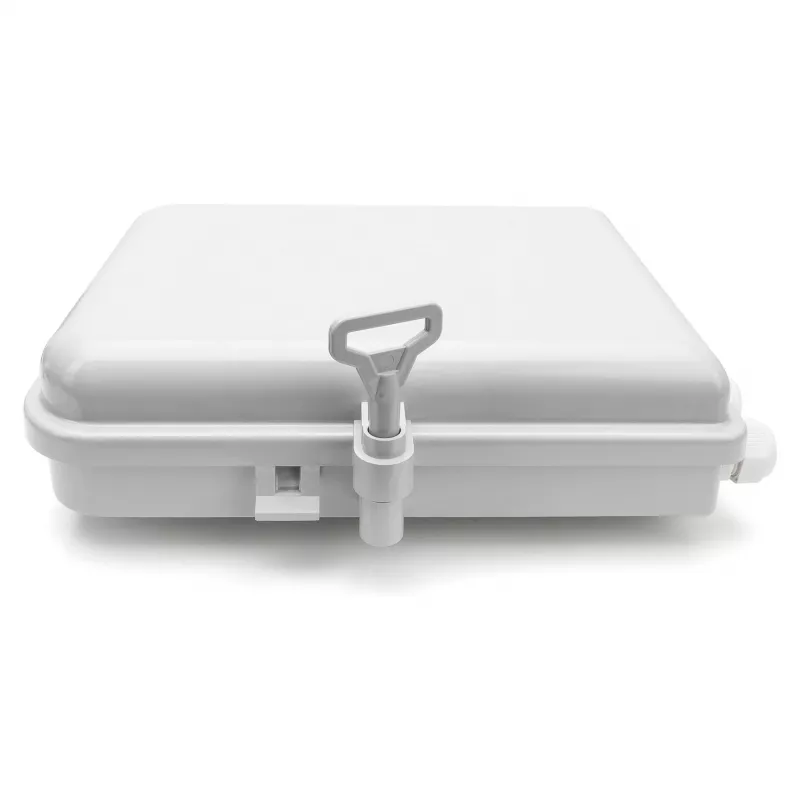

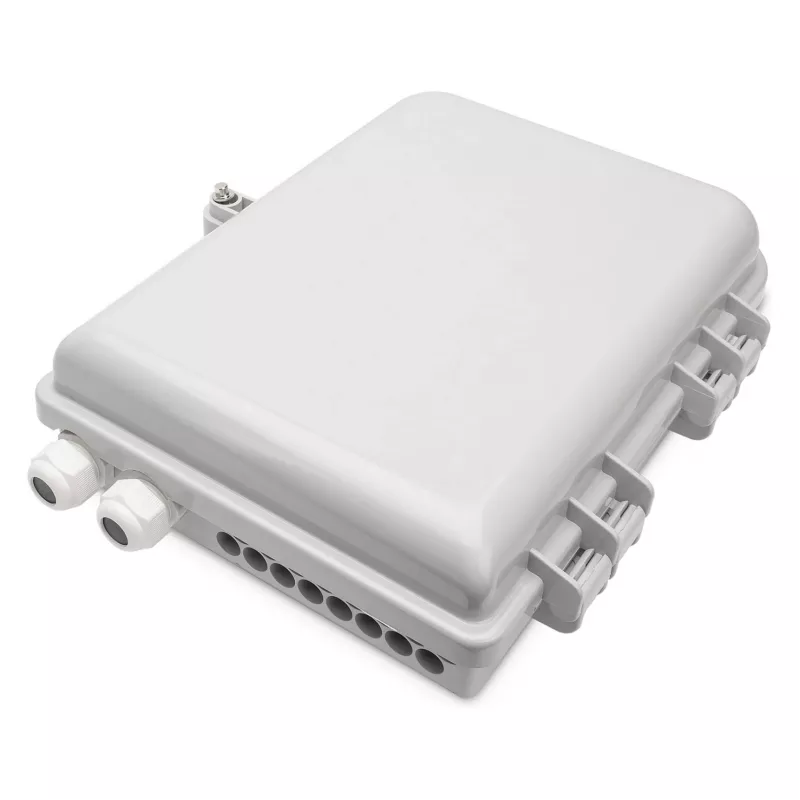

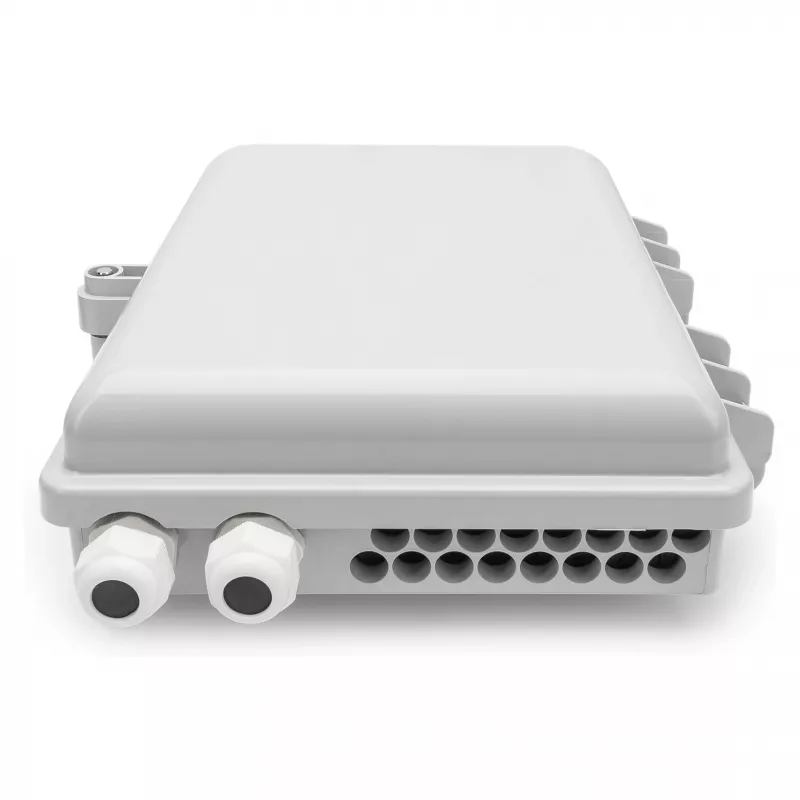

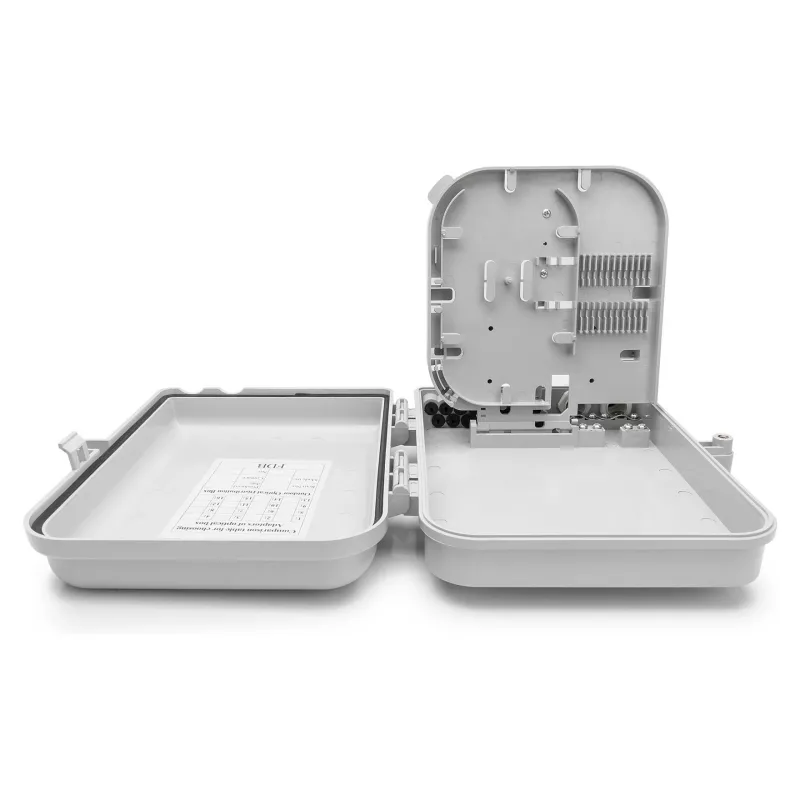

The FTTH Distribution Box Digitus DN-968914 is an outdoor-rated enclosure designed for neat management and protection of fiber optic terminations. It accommodates up to 16 LC (DX) or SC (SX) couplers and includes an internal holder and overlength tray for pigtails. The compact grey housing (250 mm × 300 mm × 80 mm) provides multiple cable inlet options to support flexible cabling arrangements.

Advantages

The distribution box supports both LC (DX) and SC (SX) connector types without additional modification, offers an overlength tray to store excess pigtail length, and provides several cable entry points for different installation scenarios. Its compact dimensions make it suitable for space-constrained outdoor mounting while protecting fiber connections from the environment.

Suitable for

• Outdoor FTTH terminations
• Small to medium fiber distribution points
• Residential and multi-dwelling unit fiber installations
• Cabinet or wall-mounted feeder/pigtail management

Key specifications

• Model: Digitus DN-968914
• Connector capacity: 16 × LC (DX) or SC (SX) couplers
• Dimensions: 250 mm (W) × 300 mm (D) × 80 mm (H)
• Color: Grey
• Packaging: Single pack
• Manufacturer country: China
• EAN: 4016032371014

How to use

Mount the FTTH distribution box at the chosen outdoor location using appropriate fasteners for the surface. Route incoming feeder and outgoing drop fibers through the selected cable inlets, secure pigtails on the overlength tray, and install up to 16 LC or SC couplers into the internal holder. Perform fiber splicing or connector termination as required and close the enclosure to protect connections from moisture and mechanical damage.

Recommendations

Use suitable cable glands and sealing materials at the inlets to maintain environmental protection. Follow standard fiber handling and ESD precautions during splicing and termination to avoid damage to fibers and connectors.
