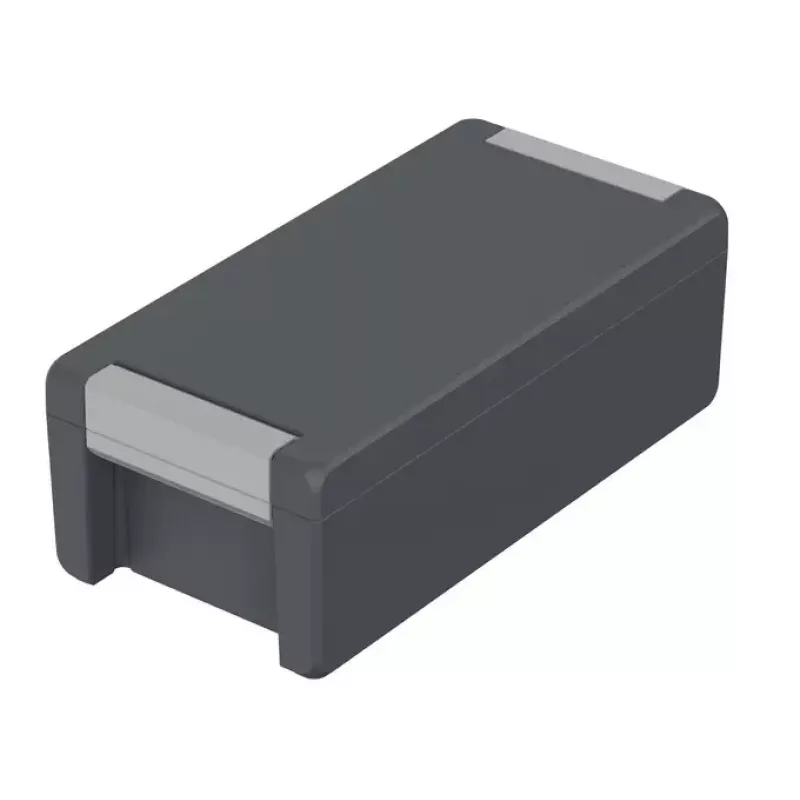

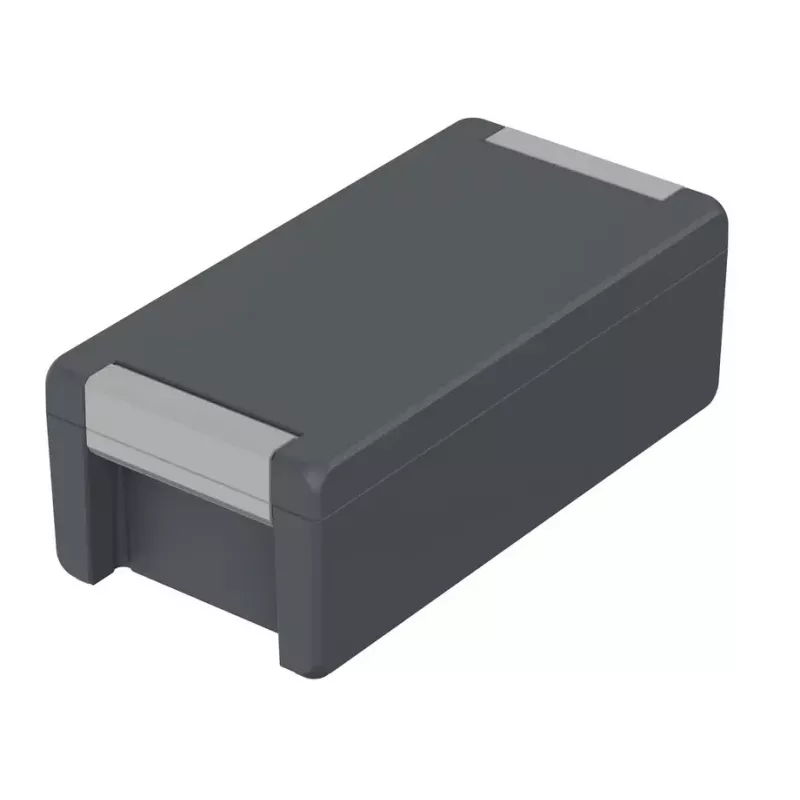

Carcasa universal Bopla BA 241309-7024 259 x 128 x 90 mm aluminio gris grafito RAL 7024 00115234

Universal enclosure crafted from aluminium with a graphite grey powder-coated finish (RAL 7024), offering robust protection for electronic components in industrial environments. Its 259 x 128 x 90 mm internal space accommodates a wide range of PCBs and wiring.

Advantages

The aluminium body provides excellent mechanical stability and heat dissipation, while the polyurethane gasket ensures a reliable seal. Stainless steel lid screws resist corrosion and allow repeated access.

Suitable for

• Industrial control units and interface modules
• Measurement and sensor electronics
• Outdoor or harsh environment installations

Key specifications

• External dimensions: 259 x 128 x 90 mm
• Material: Aluminium, powder coated
• Colour: Graphite grey (RAL 7024)
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PUR)

Recommendations

Pair with Bopla mounting accessories for wall installation. Verify internal clearance for your components before ordering.
