CLAGE Calentador de agua instantáneo bajo encimera 3,5 kW listo para enchufar 230 V con monomando mezclador

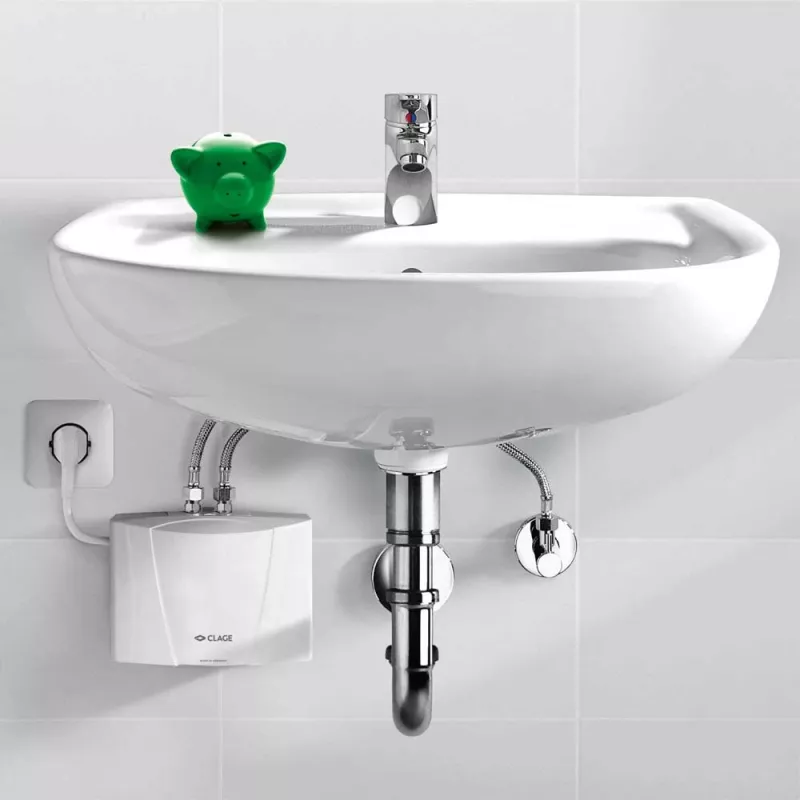

The CLAGE under-sink instantaneous water heater provides hot water on demand directly at the point of use. With a power output of 3.5 kW and plug-ready 230 V connection, it is ideal for hand wash basins or kitchen sinks. The included single-lever mixer tap allows precise temperature and flow control.

Advantages

Compact design fits neatly under the sink, saving space. Instantaneous heating eliminates the need for a storage tank, reducing standby energy losses. Energy efficiency class A ensures economical operation. The hydraulic control activates the heater only when water flows, minimizing energy consumption.

Suitable for

• Hand wash basins in bathrooms
• Kitchen sinks
• Small commercial washrooms

Key specifications

• Power: 3.5 kW
• Voltage: 230 V
• Current: 15.2 A
• Installation: Under-sink / under-counter
• Water connection: G 3/8"
• Protection class: IP24
• Hot water flow rate at 38°C: approx. 2.0 l/min
• Temperature increase at 2.0 l/min: approx. 25 K
• Minimum flow rate for activation: 1.5 l/min
• Heating system: Bare wire
• Control type: Hydraulic
• Colour: White

Recommendations

For optimal performance, ensure the electrical circuit is rated for at least 16 A. The heater is pressureless (0 MPa) and must be used with the supplied mixer tap. Professional installation is recommended.
