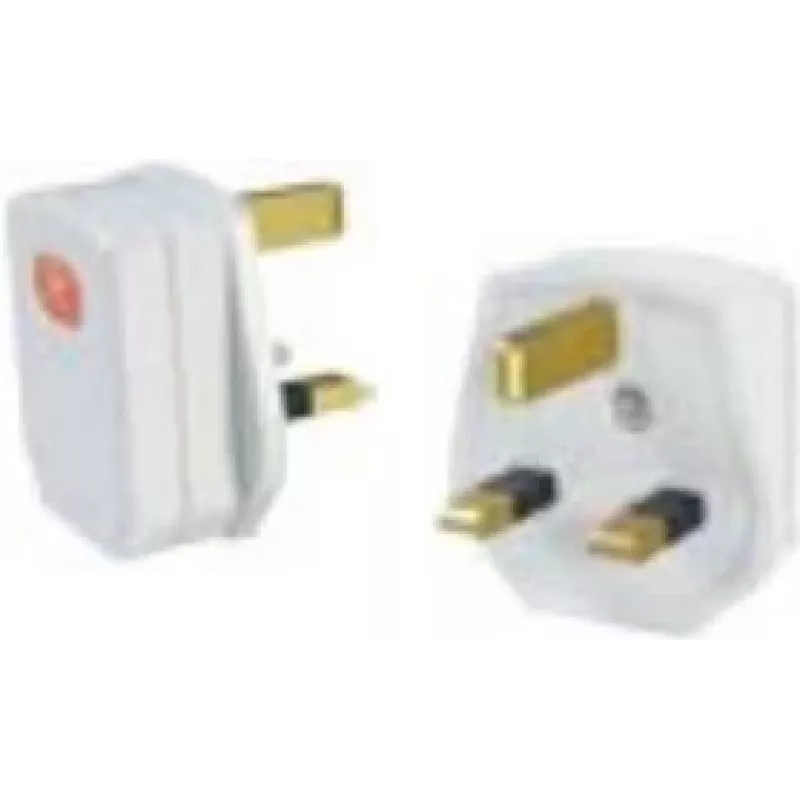

Clavija de red Bachmann 910.276 blanco 3P

The Bachmann 910.276 White 3P is a compact three-pole electrical power plug designed for safe mains connections. Made of durable plastic, it supports conductors up to 3G 1.50 mm², accepts an AC input voltage of 250 V and a maximum current of 13 A. The plug includes an integral 13 A miniature fuse and a built-in strain relief for secure cable fixation.

Advantages

This plastic power plug provides reliable electrical contact for three-pole installations while keeping installation straightforward. The integrated 13 A miniature fuse offers overcurrent protection within the plug itself, and the strain relief reduces stress on the cable entry to extend service life. The white plastic housing is resilient and suitable for indoor electrical applications.

Suitable for

• Connecting appliances and equipment to a 250 V mains supply
• Residential and light commercial electrical installations
• Applications using cables up to 3G 1.50 mm²
• Situations requiring an inline 13 A fuse

Key specifications

• Brand: Bachmann
• Model / MPN: 910.276
• EAN: 4016514012190
• Poles: 3P (three-pole)
• Conductor capacity: up to 3G 1.50 mm²
• Material: plastic housing
• Rated voltage: 250 V AC
• Rated current: 13 A (integral 13 A miniature fuse)

How to use

Strip the cable to the required length and insert the conductors into the corresponding terminals according to the plug's wiring marking. Ensure the conductor sizes do not exceed 3G 1.50 mm². Secure the cable with the built-in strain relief and close the housing according to the manufacturer's assembly steps. Verify the 13 A fuse is fitted and intact before connecting the plug to the mains.

Recommendations

Use the plug only with appropriate cable sizes (up to 3G 1.50 mm²) and within the specified ratings (250 V, 13 A). Replace the miniature fuse with the correct 13 A type if necessary and perform installation with the power disconnected. For commercial or regulated installations, follow local electrical codes and, if required, consult a qualified electrician.
