Conector coaxial DeLOCK 89812

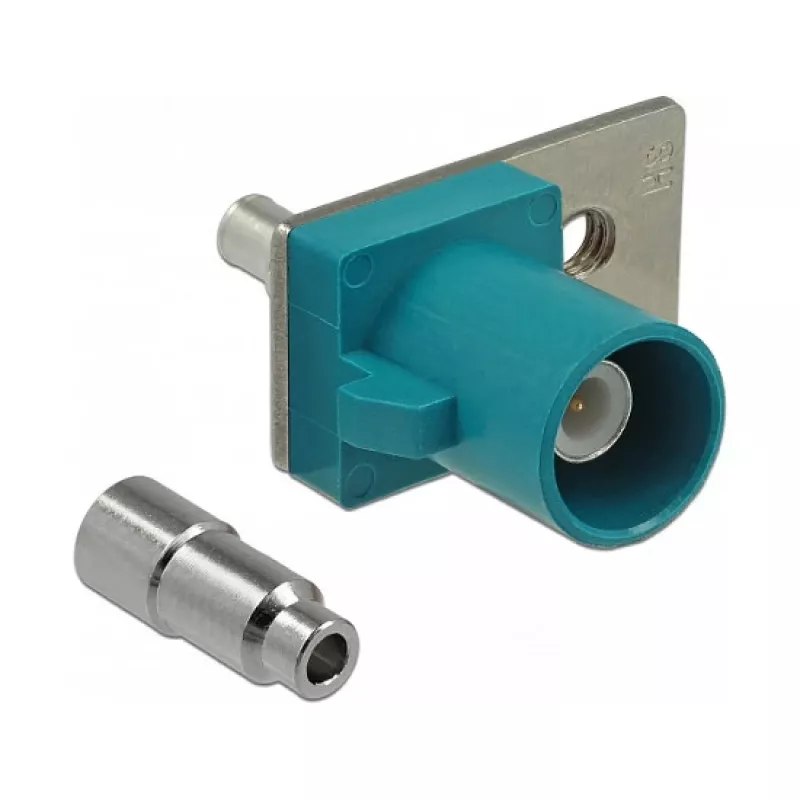

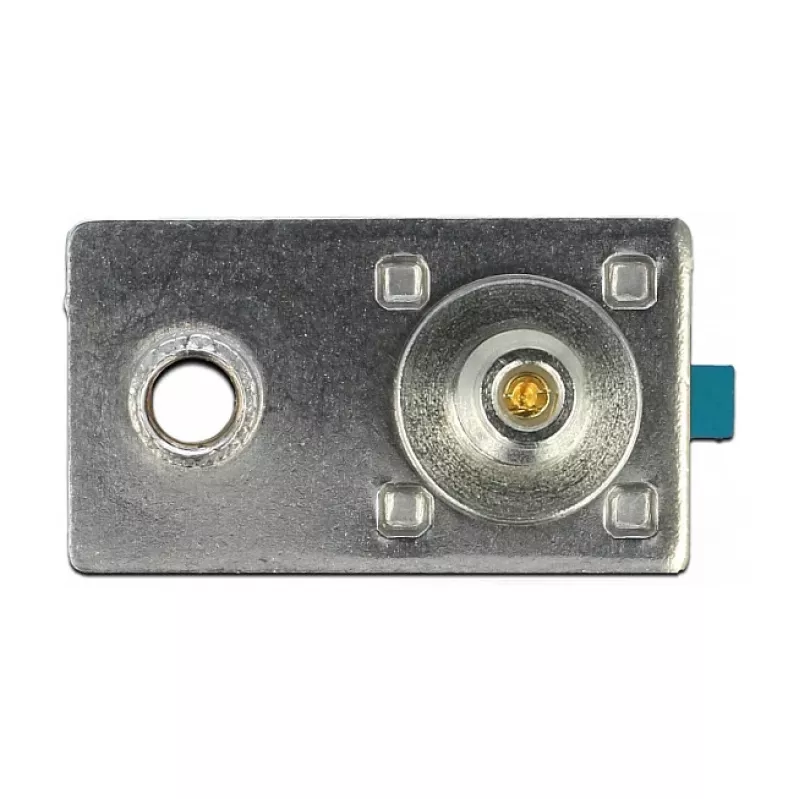

The DeLOCK 89812 coaxial connector is a compact FAKRA Z male plug designed for radio frequency technology. It features gold‑plated contacts for reliable conductivity and corrosion resistance. The connector comes individually packaged in a polybag and has a small form factor (17.8 mm × 21.2 mm × 7.5 mm), making it suitable for installations with limited space.

Advantages

The FAKRA Z male design ensures secure mating with compatible female sockets, while gold‑plated contacts improve signal transmission and reduce contact resistance. Its compact dimensions and durable stainless steel and blue housing allow straightforward integration into RF systems and cable assemblies.

Suitable for

Key specifications

How to use

Align the FAKRA Z male plug with the corresponding female socket and push until it clicks into place to ensure a secure connection. Verify correct orientation before mating to avoid damage to the contacts. For disconnection, depress any locking mechanism (if present) and pull the connector straight out. Use appropriate cable strain relief and routing to prevent mechanical stress on the connector after installation.

Recommendations

Use the DeLOCK 89812 connector with compatible FAKRA Z female counterparts and follow manufacturer guidelines for cable assembly and mounting. Avoid excessive bending or tensile forces on the cable and keep connections dry and free from contaminants to maintain optimal RF performance.
