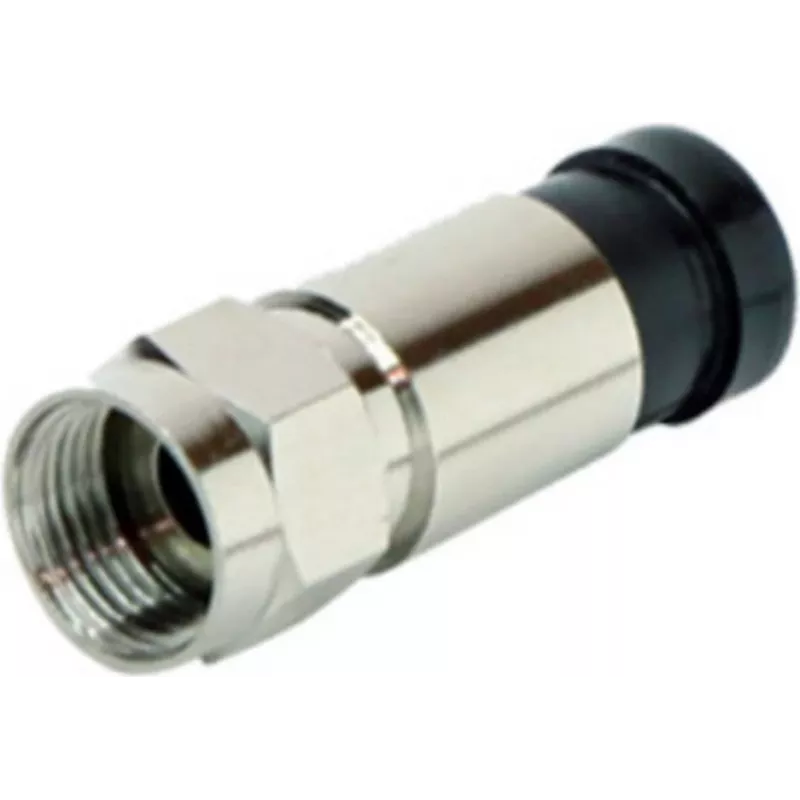

Conector de compresión ShiverPeaks 85029-A para cable de 7 mm, coaxial tipo F

The ShiverPeaks Compression Connector 85029-A for 7 mm cable is an F-type coaxial connector engineered for reliable RF connections in satellite, cable TV and antenna systems. Designed to fit 7 mm coaxial cable, this compression-style connector provides consistent impedance matching and low insertion loss to maintain signal integrity across TV and satellite installations. Its mechanical design focuses on stable electrical contact and resistance to environmental influences common in indoor and field installations.

Advantages

The compression mechanism creates a tight, reproducible connection that reduces the risk of signal leakage and impedance discontinuities. Construction materials and plating offer corrosion resistance and mechanical stability to support long service life under normal use. The connector is compatible with standard F-type interfaces and enables professional-quality results for both assembly and repair tasks without soldering.

Suitable for

• Satellite dish installations and LNB connections
• Cable television (CATV) terminations and patching
• Antenna feeds for terrestrial TV and FM systems
• Field repairs and on-site cable assembly
• Do-it-yourself home installations requiring durable RF connections

Key specifications

• Connector type: F-type compression coaxial connector
• Cable compatibility: designed for 7 mm coaxial cable outer diameter
• Impedance: nominal 75 ohm performance for RF systems
• Contact style: solid center pin/contact suitable for reliable signal transfer
• Mechanical connection: compression fitting for stable mechanical and electrical contact
• Typical application frequency range: TV and satellite RF bands (VHF/UHF and GHz satellite frequencies)

How to use

Prepare the 7 mm coaxial cable by stripping to the specified jacket, shield and dielectric lengths recommended by the connector manufacturer, ensuring the center conductor and outer conductor are exposed cleanly. Slide the connector body onto the cable, align the center conductor with the pin contact and use the appropriate compression tool to compress the connector body until it seats securely. Inspect the assembled connection visually and, if available, verify with a signal meter or return loss tester to confirm proper installation and low insertion loss.

Recommendations

For best results, use a compatible compression tool sized for F-type connectors and 7 mm cable. Avoid over-compressing the connector and ensure the cable braid and foil are properly folded back to prevent shorts. When installing in outdoor or exposed locations, apply suitable weatherproofing such as sealing tape or boots to protect the connection from moisture and corrosion.
