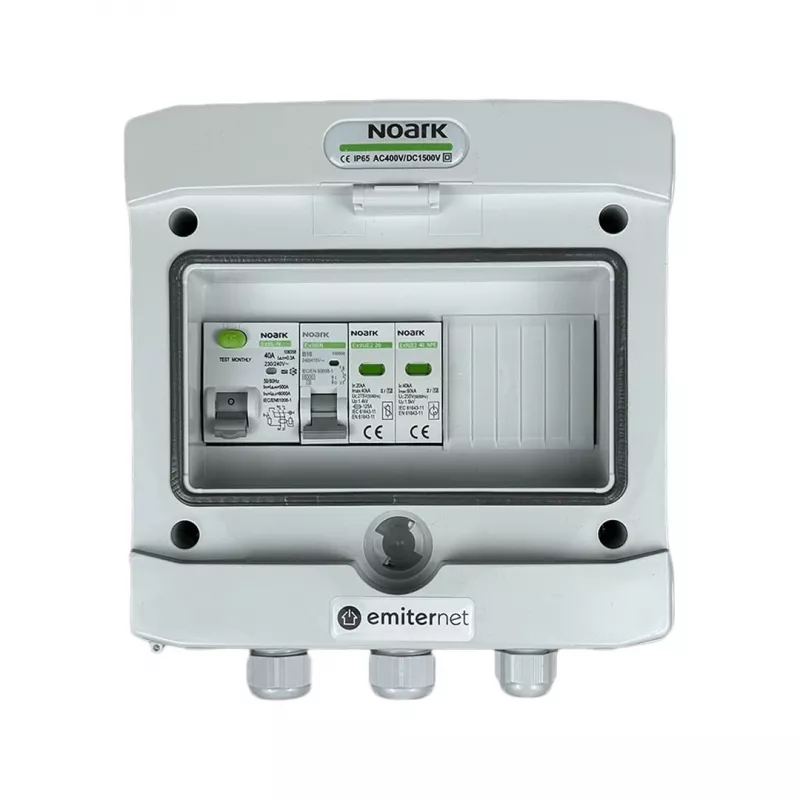

Cuadro eléctrico AC EMITER hermético IP65 con protector contra sobretensiones AC Noark tipo 2, 16A monofásico, RCD tipo A 40A/300mA

The EMITER EM-264N_AC is a robust AC protection box designed for outdoor and industrial applications. It integrates a 16A single-phase circuit breaker, a Type A residual current device (RCD) with 40A/300mA rating, and a Type 2 surge protective device (SPD) with 20kA nominal discharge current. The IP65-rated enclosure ensures dust and water ingress protection, making it ideal for harsh environments.

Advantages

This all-in-one switchgear simplifies installation and reduces space requirements. The UV-resistant polycarbonate housing withstands extreme temperatures (-25°C to +55°C) and provides long-lasting durability. The integrated SPD protects sensitive equipment from voltage surges, while the RCD ensures personnel safety against earth faults.

Suitable for

• AC inverter output protection in solar PV systems
• Outdoor AC distribution and disconnect applications
• Industrial and commercial electrical installations requiring IP65 protection

Key specifications

• Product Type: AC Protection Box / AC Disconnect Box
• Enclosure Ingress Protection: IP65
• Number of Phases: Single-Phase (1-Phase)
• Nominal AC Voltage: 230V AC
• Rated Frequency: 50/60 Hz
• Integrated MCB Rating: 16A, 1P+N
• Integrated RCD Type: Type A, 40A, 300mA
• Integrated SPD Type: Type 2, In 20kA, Imax 40kA
• Short-Circuit Breaking Capacity (Icn): 6kA
• Terminal Capacity: Up to 16mm²
• Enclosure Material: UV-resistant Polycarbonate
• Operating Temperature Range: -25°C to +55°C
• Mounting Type: Surface Mount
• Standards Compliance: IEC/EN 61439-1, IEC/EN 61643-11, IEC/EN 61008-1

Recommendations

For optimal performance, install in a shaded location and ensure proper cable sealing to maintain IP65 integrity. Suitable for use with AC inverters and outdoor electrical panels.
