DSIT Armario de servidores de pared 22U con puerta de cristal 600x600x1100mm (DS6622-WAND)

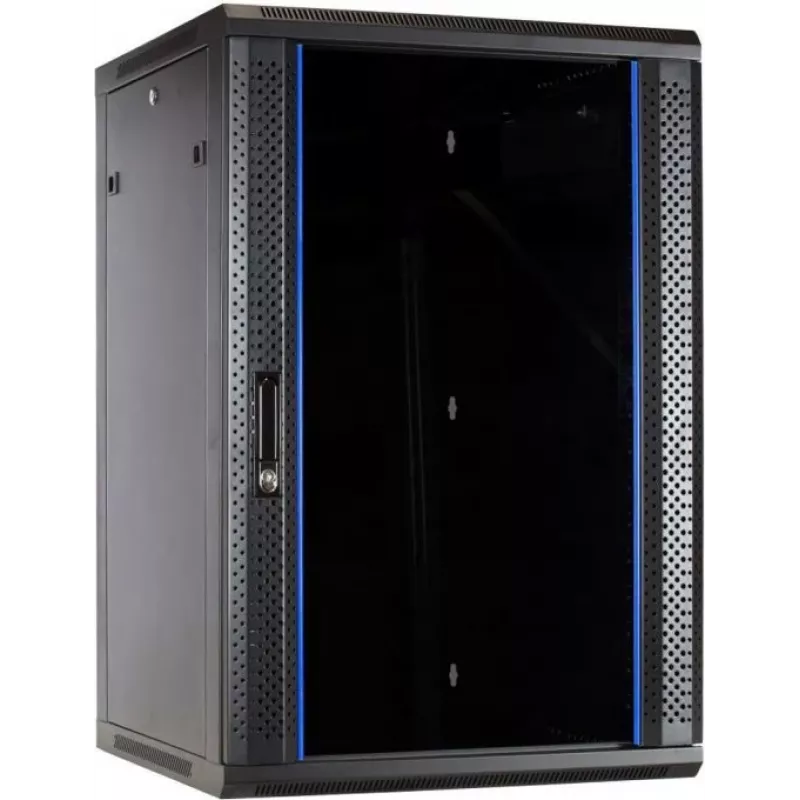

Wall-mount server cabinet with a tempered glass front door, offering a secure and space-saving 19" enclosure for IT equipment. Its 22U capacity and 60 kg load rating make it ideal for branch offices, retail environments, and network closets where floor space is limited.

Advantages

The DSIT DS6622-WAND combines robust construction with easy access. The lockable glass door provides visibility of installed equipment while preventing unauthorized access. Removable side panels allow convenient cabling and maintenance, and the adjustable mounting rails accommodate various equipment depths. Top and bottom cable entries with brush strips keep installations tidy and dust-free.

Suitable for

• Network switches and patch panels in small to medium installations
• Servers and UPS units in branch offices
• Security and surveillance equipment
• Industrial control systems
• Audio/video distribution setups

Key specifications

• 22U rack capacity, 19-inch standard
• External dimensions: 600 mm width x 600 mm depth x 1100 mm height
• Maximum load capacity: 60 kg
• Tempered glass front door with key lock
• Removable, lockable side panels
• Adjustable depth mounting rails
• Top and bottom cable entry with brush strips
• Material: SPCC cold rolled steel, powder coated black (RAL 9005)
• Protection rating: IP20
• Included accessories: keys, cage nuts & screws

Recommendations

For installations requiring high airflow, consider adding a fan unit (not included) to the pre-cut openings. Ensure the wall structure can support the cabinet's weight plus equipment load. Use cage nuts and screws provided to mount equipment securely.
