EFB Elektronik adaptador para carril DIN para SC/APC Singlemode, 1 puerto

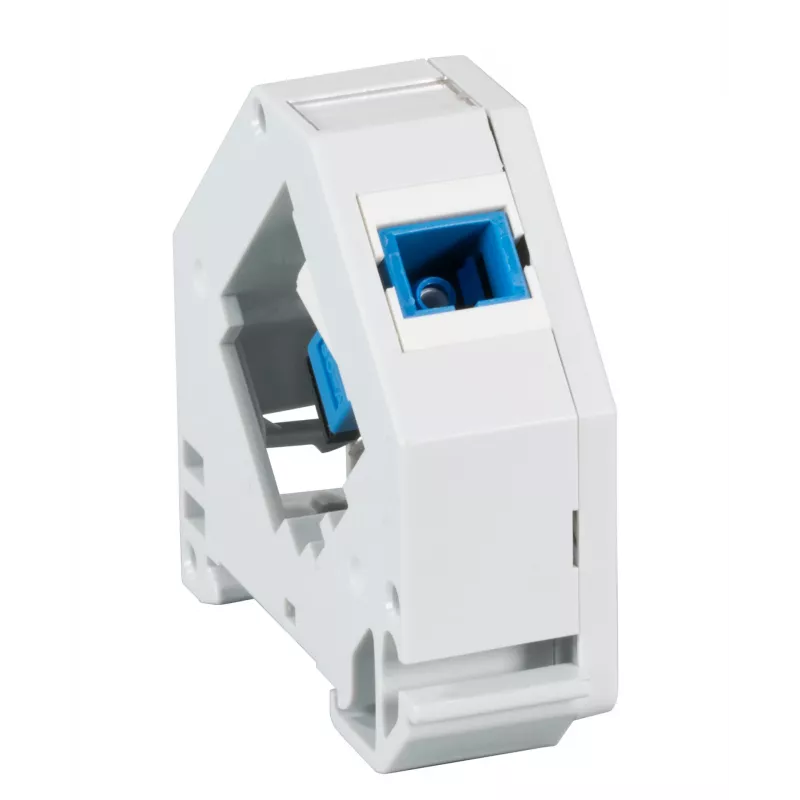

The EFB Elektronik DIN Rail Adapter for SC/APC Singlemode is a compact and robust mounting solution designed to securely hold a standard SC simplex fiber optic coupler on a DIN rail. Ideal for industrial automation, network distribution, and fiber optic cabling applications, this adapter enables tool-free snap-on installation and ensures reliable fiber connections in control cabinets and patch panels.

Advantages

Tool-free snap-on mounting saves installation time and effort. The light grey (RAL 7035) PC/ABS housing offers durability and protection for the inserted coupler. Its compact dimensions (45 x 18 x 45 mm) and low weight (0.02 kg) make it ideal for space-constrained environments. The adapter is compliant with RoHS and REACH standards.

Suitable for

• Fiber optic cabling in industrial automation
• Network distribution and telecommunication systems
• DIN rail mounted patch panels and splice enclosures
• SC/APC simplex coupler installations

Key specifications

• Connector Type Compatibility: SC/APC
• Fiber Mode: Singlemode (SM)
• Number of Ports: 1
• Mounting Type: DIN Rail (Hutschiene)
• Adapter Type: Simplex
• Housing Material: PC/ABS (Polycarbonate/Acrylonitrile Butadiene Styrene)
• Color: Light Grey (RAL 7035)
• Installation: Tool-free snap-on
• Dimensions (H x W x D): 45 x 18 x 45 mm
• Weight: 0.02 kg
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -20°C to +70°C
• Protection Class: IP20
• Standard Compliance: RoHS, REACH
• Product Series: EFB Elektronik DIN Rail Components
• Function: Adapter holder for fiber optic couplers
• Design: Modular, compact

Recommendations

For optimal performance, use with standard SC/APC simplex couplers. Ensure the DIN rail is properly grounded and the operating environment stays within the specified temperature range.
