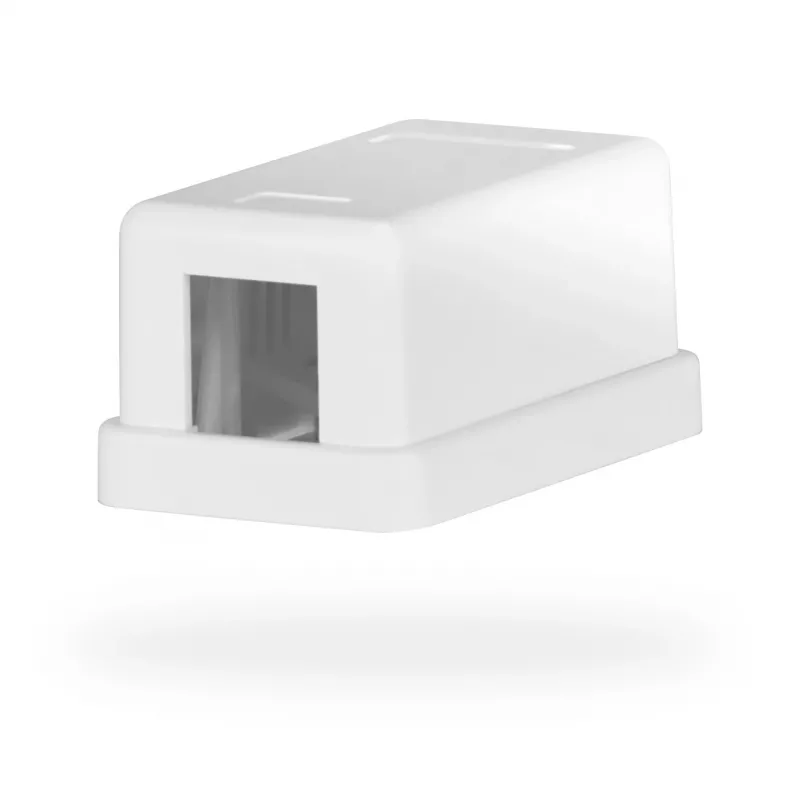

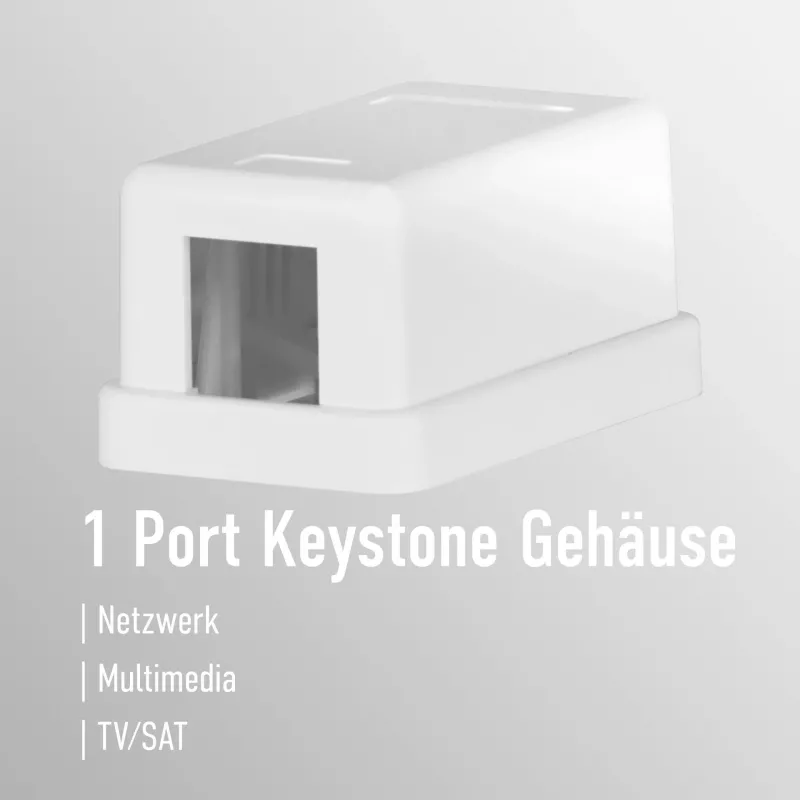

EFB Elektronik Set de marco de 1 puerto para módulos Keystone, DIN 49075, blanco puro (RAL 9010)

The EFB Electronics Keystone Connection Box is a high-quality surface mount enclosure designed for single keystone modules. Ideal for structured cabling and telecommunications, this compact box provides a clean and professional installation for data network outlets. The pure white (RAL 9010) ABS plastic housing blends seamlessly with any interior, while the empty housing allows you to insert your choice of standard keystone module (19.2 x 14.9 mm).

Advantages

Easy surface mount installation with screw mounting; rear and side cable entry options for flexible routing; compact flat design saves space; durable ABS plastic with UL94 V-0 flammability rating ensures safety; IP20 protection suitable for indoor use.

Suitable for

• Data network cabling (Ethernet, telephone, audio/video)
• Telecommunications outlets
• Office and home network installations
• Surface mount applications where flush mounting is not possible

Key specifications

• Product Type: Keystone Connection Box
• Number of Ports: 1
• Mounting Type: Surface Mount (Aufputz)
• Module Included: No (Empty Housing)
• Compatible Module Type: Standard Keystone (19.2 x 14.9 mm)
• Color: Pure White (RAL 9010)
• Material: ABS Plastic

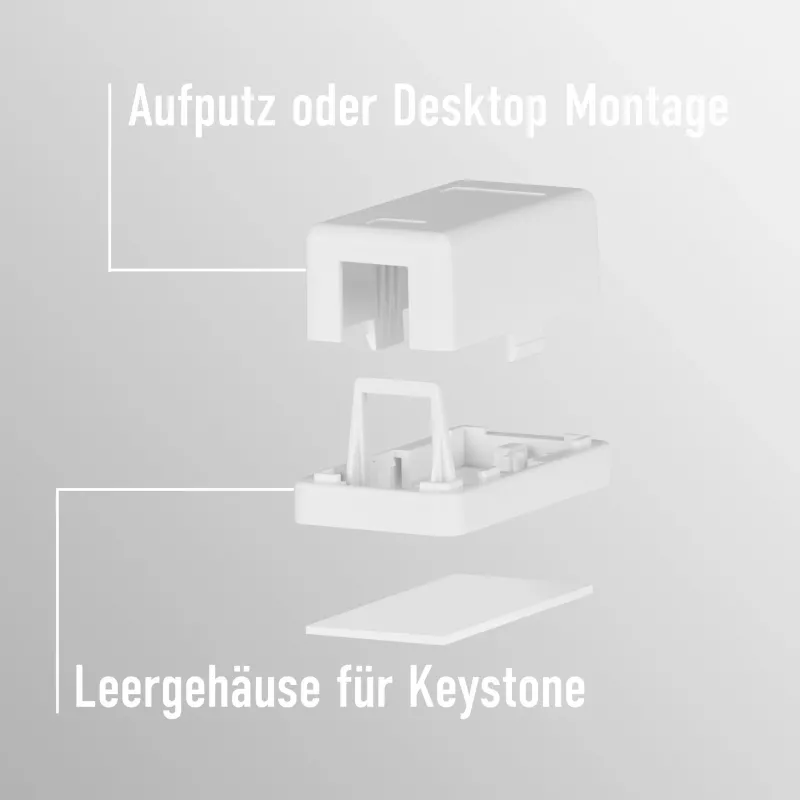

• Cable Entry: Rear and Side Options

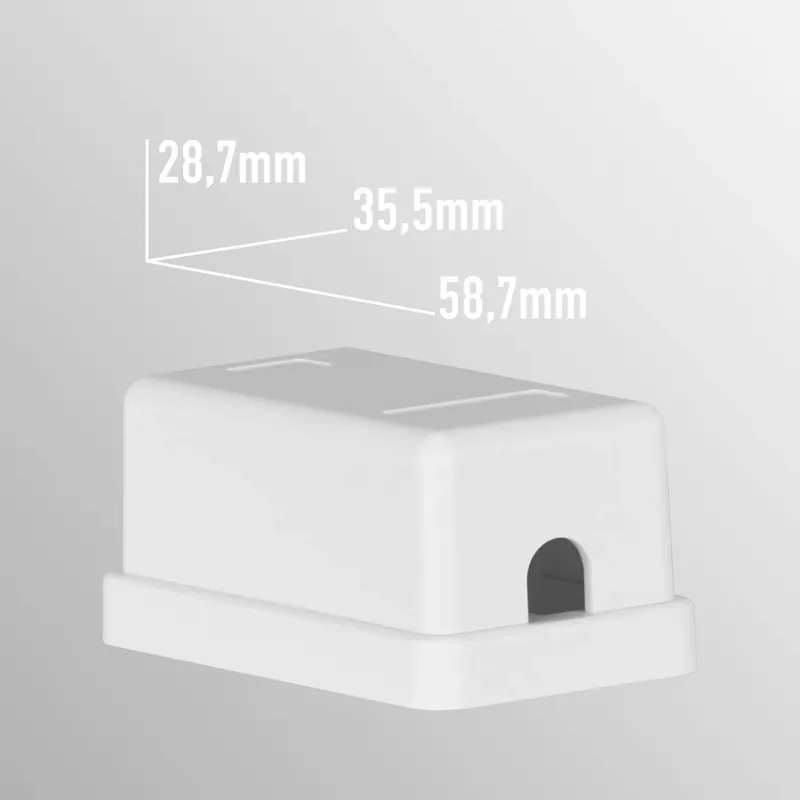

• Dimensions (W x H x D): 60 x 60 x 28 mm
• Weight: 50 g
• Protection Class: IP20
• Operating Temperature Range: -10°C to +50°C
• Flammability Rating: UL94 V-0
• Installation: Screw Mounting
• Application: Data Network Cabling, Telecommunications
• Design: Compact, Flat Design
• Standard Compliance: ISO/IEC 11801, EN 50173-1
• Manufacturer Series: EFB Keystone System

Recommendations

For a complete installation, pair this box with a compatible keystone module (sold separately). Ensure proper cable management and secure screw mounting for reliable performance.
