EFB PRO-4280GR.0D Armario de red 19" 42U 800x1000mm gris claro RAL7035

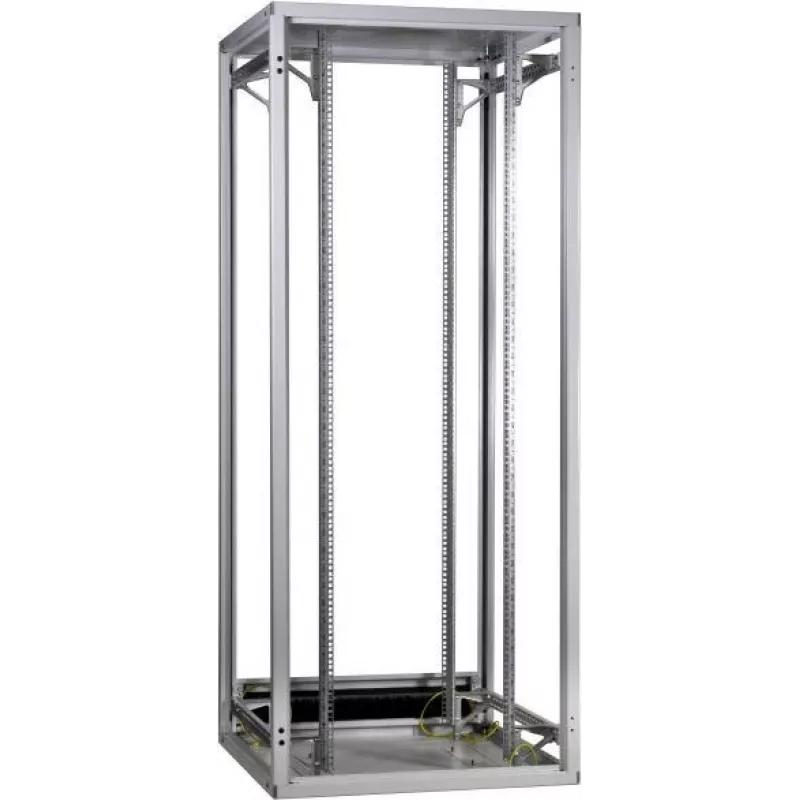

The EFB PRO-4280GR.0D is a high-quality 19-inch network cabinet designed for professional data center and server room environments. With 42U of rack space and dimensions of 800x1000mm, this cabinet offers ample capacity for mounting servers, switches, patch panels, and other network equipment. The cabinet is finished in light grey (RAL 7035) and features a robust welded steel frame for maximum stability and durability.

Advantages

This network cabinet provides exceptional value with its combination of security, ventilation, and ease of access. The front safety glass door is lockable, while the rear steel door and removable side panels also feature locks, ensuring your equipment is protected. The adjustable 19-inch profile rails (front and rear) allow for flexible mounting of various devices. With a static load capacity of 800 kg, it can support heavy equipment. The cabinet includes adjustable leveling feet for stable placement on uneven floors and a grounding kit for safety. Passive ventilation helps maintain optimal operating temperatures.

Suitable for

• Data centers and server rooms requiring secure and organized equipment housing
• Network infrastructure for enterprises, ISPs, and telecommunications
• Mounting 19-inch rack-mountable devices such as servers, switches, routers, and patch panels
• Environments where cable management and airflow are critical

Key specifications

• Rack Type: 19-inch Network Cabinet
• Rack Units: 42U
• External Dimensions (WxDxH): 800 x 1000 x 2000 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel
• Front Door: Safety glass, lockable
• Rear Door: Steel, lockable
• Side Panels: Removable, lockable
• Static Load Capacity: 800 kg
• Protection Class: IP20
• Cable Entry: Top and bottom
• Mounting Rails: Adjustable 19-inch profile rails (front and rear)
• Frame Construction: Welded frame
• Feet: Adjustable leveling feet included
• Grounding: Grounding kit prepared
• Door Opening Angle: 180°
• Ventilation: Passive ventilation

Recommendations

For optimal performance, ensure proper cable management and airflow within the cabinet. Use cable ties and management panels to organize cables. The cabinet is designed for indoor use only. For additional security, consider installing a temperature monitor or fan kit if deploying high-density equipment.
