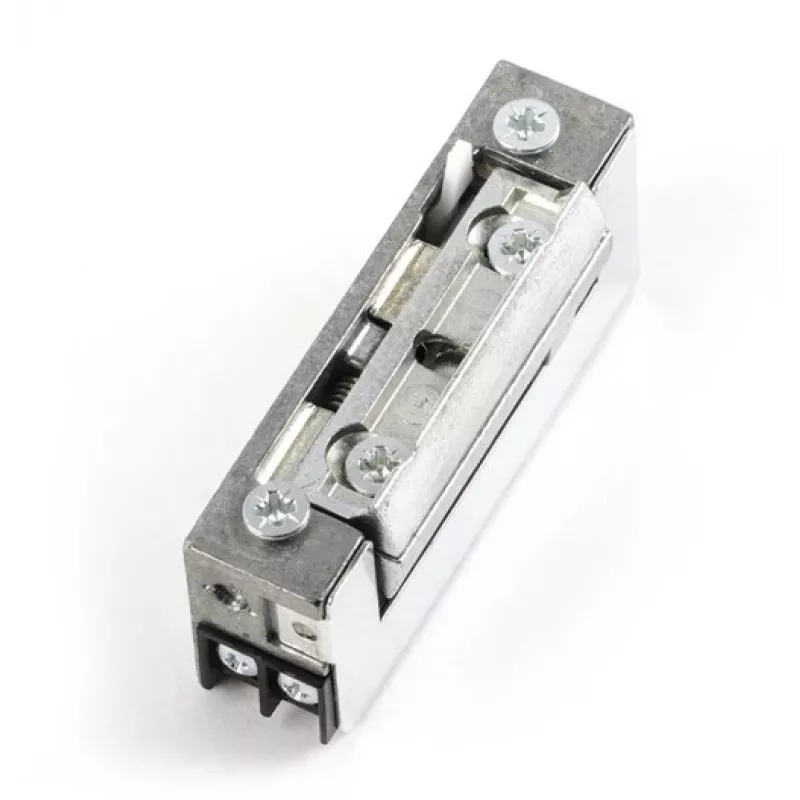

ELEKTRA-PLUS R5-24.20 Abrepuertas eléctrico 24V con mecanismo de bloqueo

The ELEKTRA-PLUS R5-24.20 is a high-quality electric strike designed for 24V AC/DC operation, featuring a mechanical hold-open function and fail-secure mode. Ideal for access control and intercom systems, this robust unit offers a holding force of 3000 N and a durability rating of 200,000 cycles.

Advantages

Reliable fail-secure operation ensures security even during power loss. The mechanical day/night latch adjustment allows flexible access control. Universal handing (left/right) simplifies installation. Low noise operation makes it suitable for quiet environments.

Suitable for

• Access control systems
• Intercom systems
• Residential and commercial door security

Key specifications

• Operating Voltage: 24V AC/DC
• Holding Force: 3000 N (approx. 300 kg)
• Durability: 200,000 cycles
• Body Material: Zinc Alloy (ZnAl)
• Dimensions (HxWxD): 67 x 21 x 28 mm
• Operating Temperature: -15°C to +40°C

Recommendations

For optimal performance, pair with a compatible 24V power supply and ensure proper flush mounting. Suitable for standard 67x21mm faceplates.
