EMITER Cuadro eléctrico conectado DC hermético IP65 EMITTER con protector contra sobretensiones DC Noark 1000V Tipo 2, 1x string PV, 1x MPPT

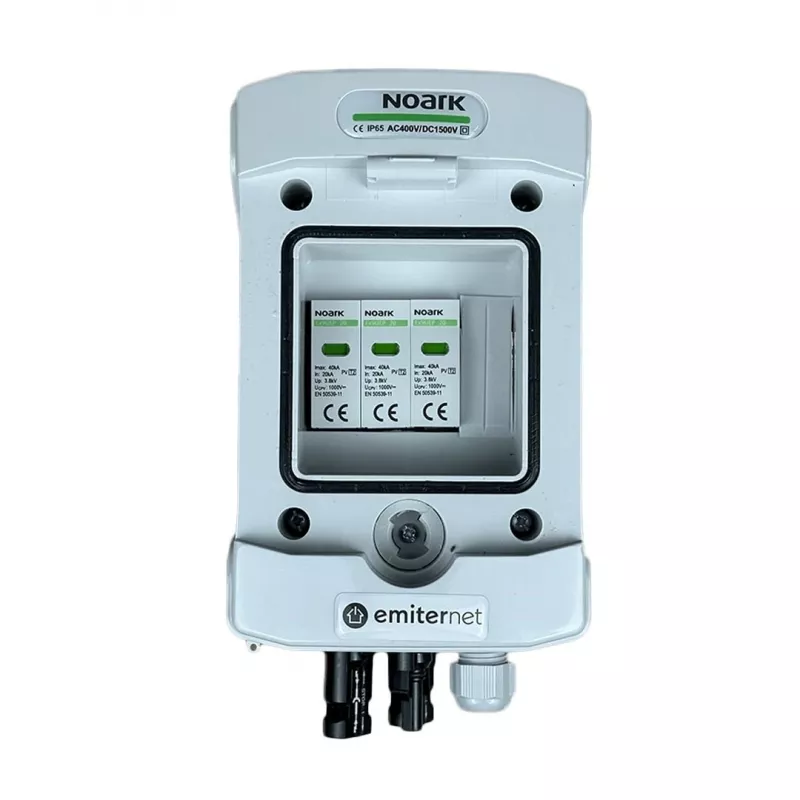

The EMITER Switchgear Attached DC Hermetic IP65 EMITTER is a robust and reliable solution for photovoltaic systems, integrating a Noark 1000V Type 2 DC surge arrester. Designed for outdoor use, it ensures protection against overvoltages and environmental factors, making it ideal for solar installations.

Advantages

This device combines a DC disconnector and surge protection in a single hermetic enclosure, simplifying installation and reducing costs. Its IP65 rating guarantees dust and water ingress protection, while the UV-resistant polycarbonate housing ensures long-term durability. The integrated Noark Type 2 SPD provides reliable protection against transient overvoltages.

Suitable for

• Photovoltaic systems with one PV string and one MPPT input
• Outdoor installations requiring IP65 protection
• Systems operating at up to 1000V DC

Key specifications

• Maximum System Voltage (DC): 1000 V
• Number of PV Strings (Input): 1
• Number of MPPT Inputs (Output): 1
• Surge Protective Device (SPD) Type: Type 2
• SPD Manufacturer: Noark
• SPD Max Continuous Operating Voltage (Uc): 1060 V DC
• SPD Nominal Discharge Current (In): 20 kA (8/20 µs)
• Enclosure Protection Rating: IP65
• Enclosure Material: UV-resistant Polycarbonate
• DC Disconnector/Isolator: Included
• Number of Disconnector Poles: 2-pole
• Max String Current: 20 A
• Connection Type: MC4 Compatible
• Mounting Type: Wall Mount
• Operating Temperature Range: -25°C to +60°C
• Hermetic Sealing: Yes
• Standards Compliance: IEC 61439-2, IEC 61643-31

Recommendations

For optimal performance, ensure proper grounding and follow manufacturer guidelines for installation. This device is designed for use in photovoltaic systems and should be installed by qualified personnel.
