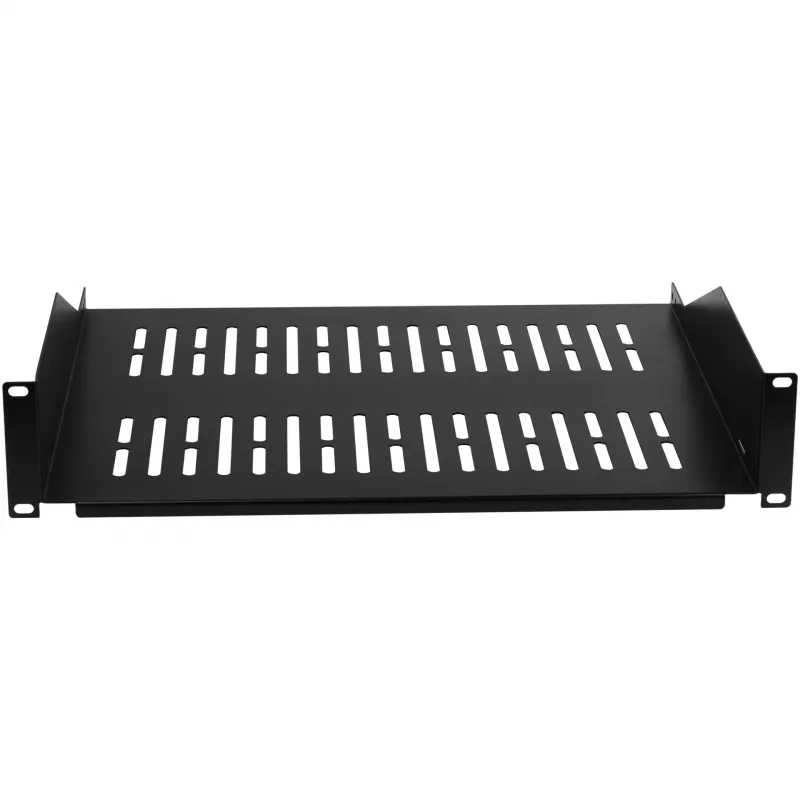

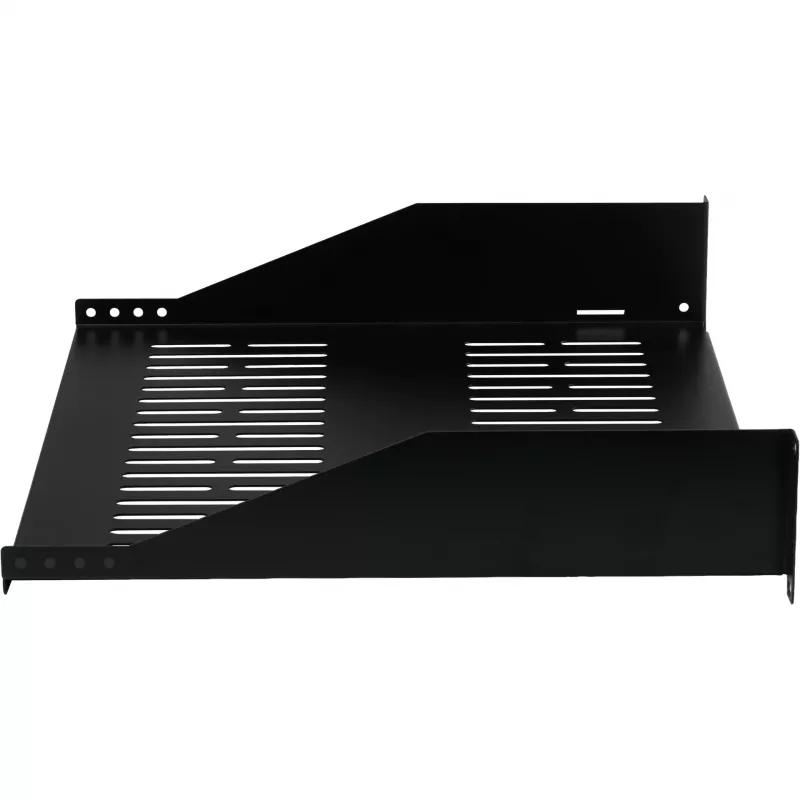

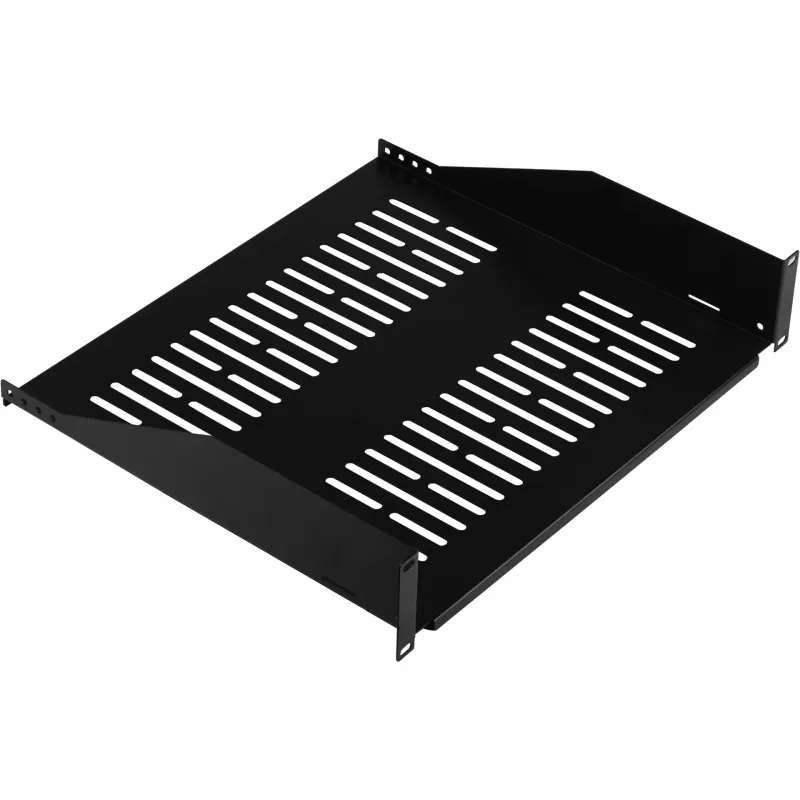

Estante fijo de rack de 19 inch 2U EFB Elektronik, 400 mm de profundidad, carga 22 kg, negro RAL 9005

Rack installations often suffer from wasted vertical space and unstable equipment placement. The EFB Elektronik 19" 2U fixed shelf solves this by providing a solid, front-mounted platform for non-rackmount devices, tools, or spare parts inside standard 19-inch cabinets. With a 400 mm depth and 22 kg load capacity, it keeps your gear secure and accessible.

Who is it for

IT technicians, network administrators, and AV integrators who need to mount smaller devices, patch panels, or test equipment in server rooms, data centers, or structured cabling enclosures. Ideal for environments where equipment does not have its own rack ears but must reside inside a rack.

Main features

• Fits standard 19-inch racks (EIA-310-D) and occupies 2U of vertical space.
• Fixed, non-ventilated steel construction with durable black powder coating (RAL 9005).
• Front mounting with 4-point support ensures stable load distribution.
• Supports up to 22 kg of equipment weight.
• 400 mm usable depth accommodates a wide range of devices.
• Includes mounting screws for immediate installation.

Specifications

• Rack compatibility: 19 inch
• Rack units: 2U
• Shelf type: Fixed / stationary
• Depth: 400 mm
• Load capacity: 22 kg
• Colour: Black (RAL 9005)
• Material: Steel
• Finish: Powder coated
• Mounting type: Front mounting
• Construction: Solid (non-ventilated)
• Usable depth: 400 mm
• Usable width: approx. 450 mm
• Mounting points: 4-point
• Standard compliance: EIA-310-D
• Included accessories: Mounting screws

Tips

Before installation, verify the total weight of the equipment to be placed on the shelf does not exceed 22 kg. Distribute the load evenly across the shelf surface to maintain stability and prevent sagging. Use the included screws to secure the shelf to the rack rails, and ensure all four mounting points are properly fastened.
