ESYLUX detector de presencia de techo 360° de superficie Ø24m conmutación por paso por cero controlable por mando PD

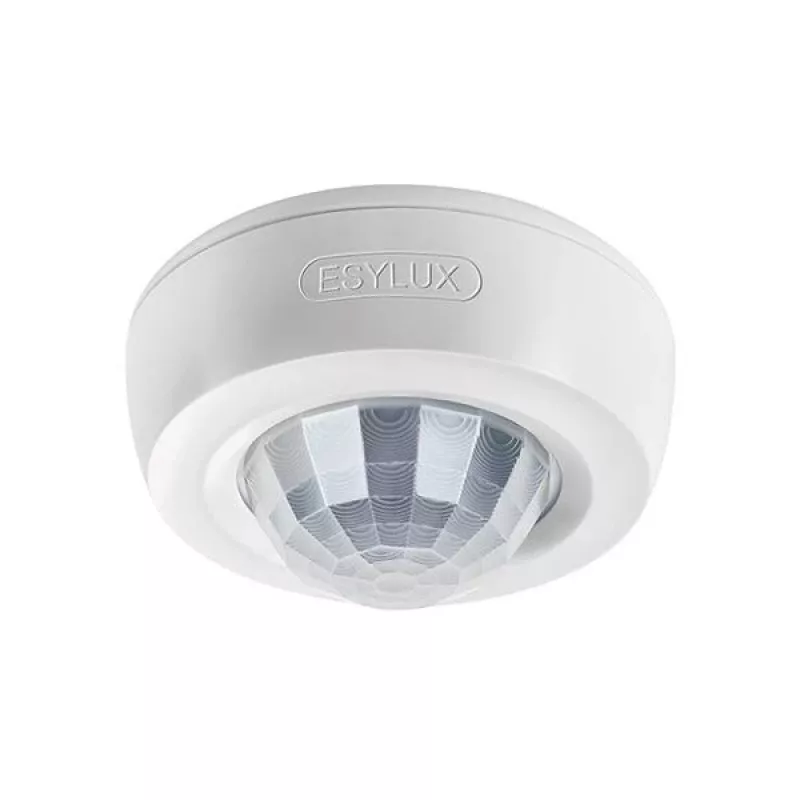

The ESYLUX EB10430879 is a high-performance ceiling presence detector designed for professional lighting and HVAC control in commercial and industrial environments. Featuring a 360° detection angle and a large detection range of up to Ø24 m (at 3 m mounting height), this surface-mounted device integrates seamlessly into DALI-2 systems as an Application Controller (APC). It combines presence detection, constant light control, and zero-crossing switching for relay outputs, ensuring energy efficiency and extended relay life. The detector is remote controllable via optional IR remote and is built with a robust IP54-rated housing in traffic white (RAL 9010).

Advantages

• Large detection area (452 m² tangential) reduces the number of devices needed
• Zero-crossing switching minimizes relay wear and extends product lifespan
• DALI-2 Application Controller capability enables advanced lighting scenes and HVAC integration
• Mixed light measurement works with all modern light sources (LED, fluorescent, etc.)
• Remote control capability for easy commissioning and adjustments

Suitable for

• Open-plan offices and meeting rooms
• Classrooms and lecture halls
• Warehouses and logistics areas
• Corridors and stairwells
• Industrial production halls

Key specifications

• Product Type: Presence Detector
• Installation: Ceiling surface-mounted
• Detection Angle: 360°
• Detection Range: Ø24 m (at 3 m mounting height)
• Recommended Mounting Height: 2.5 - 3.5 m
• Control System: DALI-2 Application Controller (APC)
• Output Channels: 1x DALI-2, 1x Relay (potential-free)
• Relay Switching Capacity: 230V AC, 10A (cos φ=1), 3A (cos φ=0.5)
• Zero-crossing Switching: Yes
• Remote Control: Yes (via optional IR remote)
• Protection Class: IP54
• Operating Temperature: -25 °C to +50 °C
• Supply Voltage: 230 V AC, 50/60 Hz
• Power Consumption: approx. 0.5 W
• Colour: Traffic White (RAL 9010)
• Housing Material: UV-stabilised polycarbonate
• Light Measurement: Mixed light
• Max. DALI ECGs: Up to 20
• Detection Area (Tangential): 452 m²

Recommendations

For optimal performance, mount at the recommended height of 2.5–3.5 m. Use the optional ESYLUX IR remote control (e.g., EB10430900) for easy parameter adjustment. This detector is ideal for new installations or retrofits in DALI-2 lighting systems.
