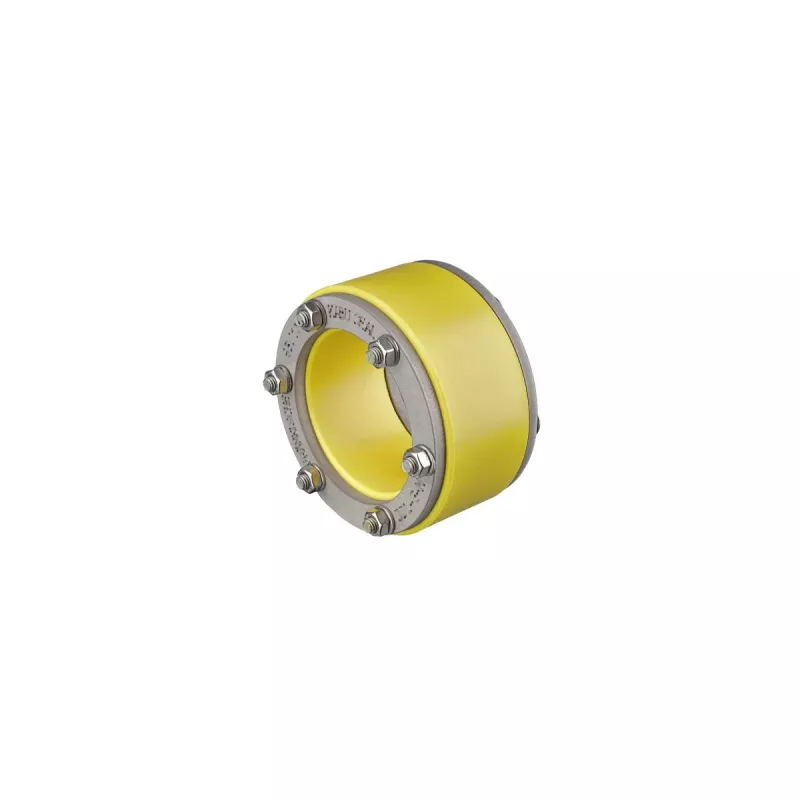

FRAENKISCHE ROHRWERKE inserto de sellado para anillo de prensado Kabu-Seal 110/150 (19965110)

The FRAENKISCHE ROHRWERKE Press Ring Sealing Insert Kabu-Seal 110/150 provides a mechanical compression seal for a single cable or conduit with an outer diameter of 110 mm passing through a 150 mm core bore. Its EPDM sealing element and stainless steel pressure plates ensure reliable gas and water tightness without the need for wet installation materials.

Highlights

• Seals cables or conduits with 110 mm outer diameter in 150 mm core bores
• EPDM sealing element for long-term flexibility and resistance
• Stainless steel pressure plates and fasteners (V2A / AISI 304)
• Dry installation – no mortar or foam required
• Resistant to UV, aging, and chemicals

In daily use

The Kabu-Seal insert is placed into the core bore or wall sleeve, and the pressure ring is tightened to compress the EPDM element against the cable and bore wall. This creates a durable seal that withstands water pressure up to 2.5 bar and gas pressure up to 1.0 bar. The operating temperature range of -30°C to +100°C makes it suitable for a wide range of environments.

Full specifications

• Product Type: Press Ring Sealing Insert
• Sealing Principle: Mechanical Compression
• Application: Gas and Water-tight Sealing
• Core Bore Diameter: 150 mm
• Cable/Conduit Outer Diameter: 110 mm
• Sealing Element Material: EPDM
• Pressure Plate Material: Stainless Steel (V2A / AISI 304)
• Fastener Material: Stainless Steel (V2A / AISI 304)
• Max. Water Pressure Resistance: 2.5 bar (25 m water column)
• Max. Gas Pressure Resistance: 1.0 bar
• Operating Temperature Range: -30°C to +100°C
• Number of Cable Entries: 1
• Installation Type: Dry Installation
• Resistance: UV-resistant, Aging-resistant, Chemical-resistant
• Suitable For: Core bores and wall sleeves
• Manufacturer Series: Kabu-Seal

Final note

The Kabu-Seal 110/150 is a robust sealing solution for single large-diameter cables or conduits in core bores, offering reliable performance without the mess of wet installation.
