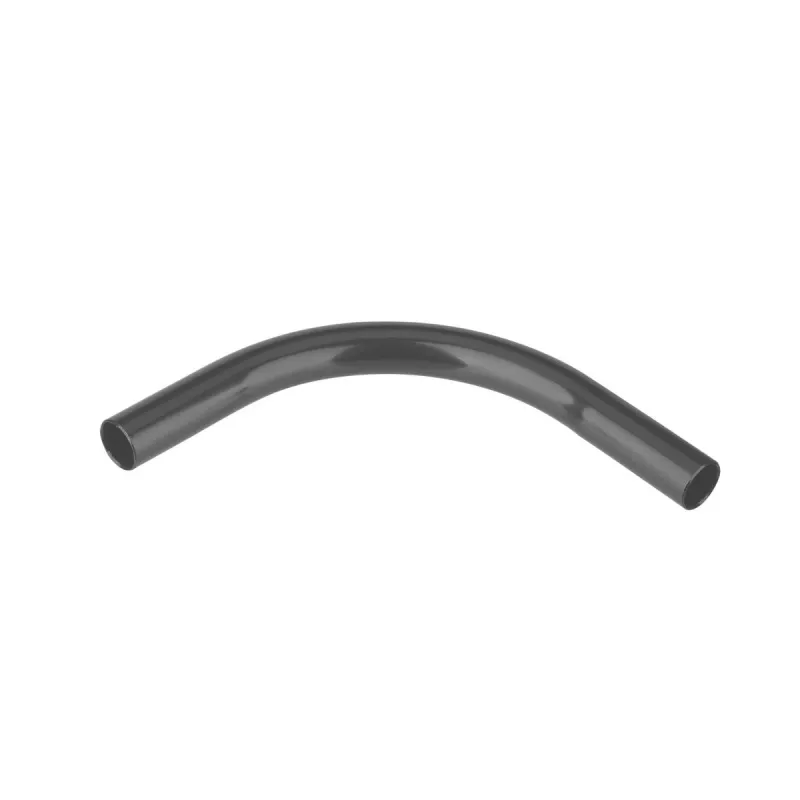

FRAENKISCHE ROHRWERKE GEBR. KIRCHNER GMBH & CO. KG codo de tubo de acero para StaroSteck-ES, 20 mm, lacado negro, 90° 20360020

With a 1250 N compression resistance, this steel conduit bend withstands heavy loads in electrical installations. The 90° bend with 60 mm radius enables clean directional changes in conduit runs.

Overview

The FRAENKISCHE ROHRWERKE GEBR. KIRCHNER GMBH & CO. KG SBS-E 20 is a plug-in steel conduit bend for the StaroSteck-ES system. It connects without tools, speeding up installation. The black lacquered finish protects against corrosion and blends into industrial environments.

What stands out

• Steel construction with lacquered surface for durability
• Plug-in connection for quick assembly
• 90° bend angle with 60 mm radius
• 20 mm nominal diameter, compatible with StaroSteck-ES

Technical details

• Material: Steel
• Colour: Black
• Nominal diameter: 20 mm
• Bend angle: 90°
• Bend radius: 60 mm
• Connection type: Plug-in
• Compression resistance: 1250 N
• Impact resistance: 2 J
• Temperature range: -25 to +60 °C
• Halogen-free: Yes

Our verdict

A robust steel bend that simplifies conduit routing in demanding installations. Its plug-in design and corrosion-resistant finish make it a practical choice for electricians.
