FRAENKISCHE ROHRWERKE codo de tubo de acero 90° M25 lacado negro para StaroSteck-ES 20360025

Engineered for rigid steel conduit systems, this 90° bend features a 100 mm bending radius and a robust lacquered finish, delivering reliable performance in electrical installations.

Overview

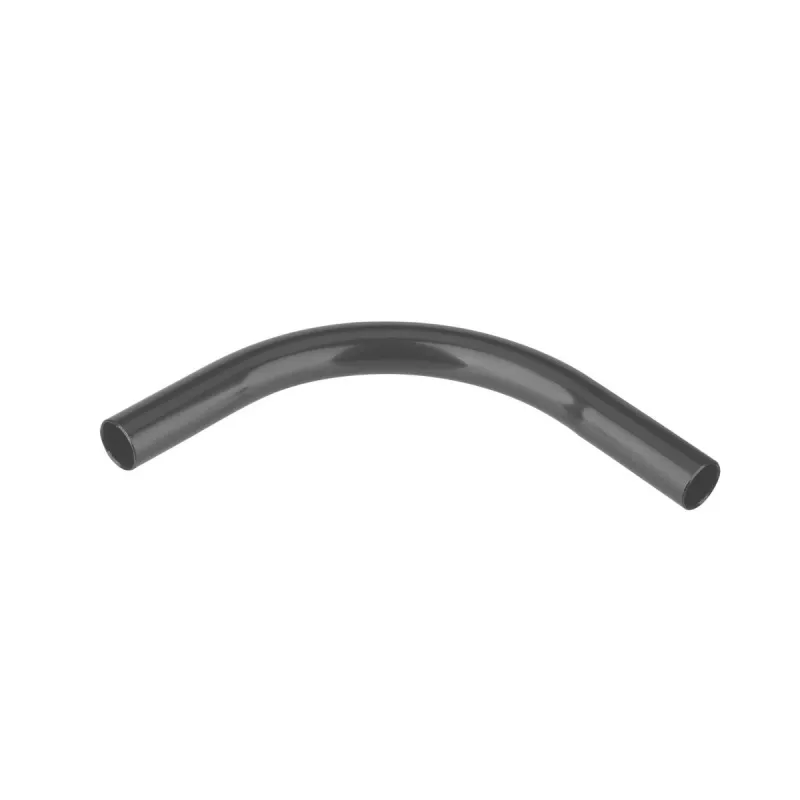

The FRAENKISCHE ROHRWERKE Stahlrohr-Steckbogen SBS-E 25 is a plug-in bend designed for use with StaroSteck-ES conduit systems. Its 25 mm nominal diameter and 90° angle enable clean directional changes in conduit runs. The black lacquered steel construction provides a durable surface suitable for indoor applications.

What stands out

• Plug-in connection for quick assembly without special tools
• 90° bend with 100 mm bending radius for smooth cable pulling
• Lacquered steel surface for enhanced corrosion resistance
• Compatible with OBO Bettermann StaroSteck-ES system

Technical details

• Material: Steel
• Surface finish: Lacquered
• Colour: Black
• Nominal diameter: 25 mm (M25)
• Bend angle: 90°
• Bending radius: 100 mm
• Connection type: Plug-in
• System compatibility: OBO Bettermann StaroSteck-ES
• Conduit type: Rigid steel conduit
• Application: Electrical installation, conduit systems
• Temperature range: -25 to +250 °C
• Compressive strength: Class 5 (>4000 N)
• Impact resistance: Class 5 (>20 J)
• Corrosion resistance: Medium (due to lacquer coating)
• Standard: DIN EN 61386-21
• Halogen-free: No
• UV-resistant: No (primarily for indoor use)

Our verdict

A reliable steel bend for StaroSteck-ES installations, offering a secure plug-in connection and durable lacquered finish for indoor conduit routing.
