Fuente de alimentación Sharkoon Rebel P30 Gold 1000 W

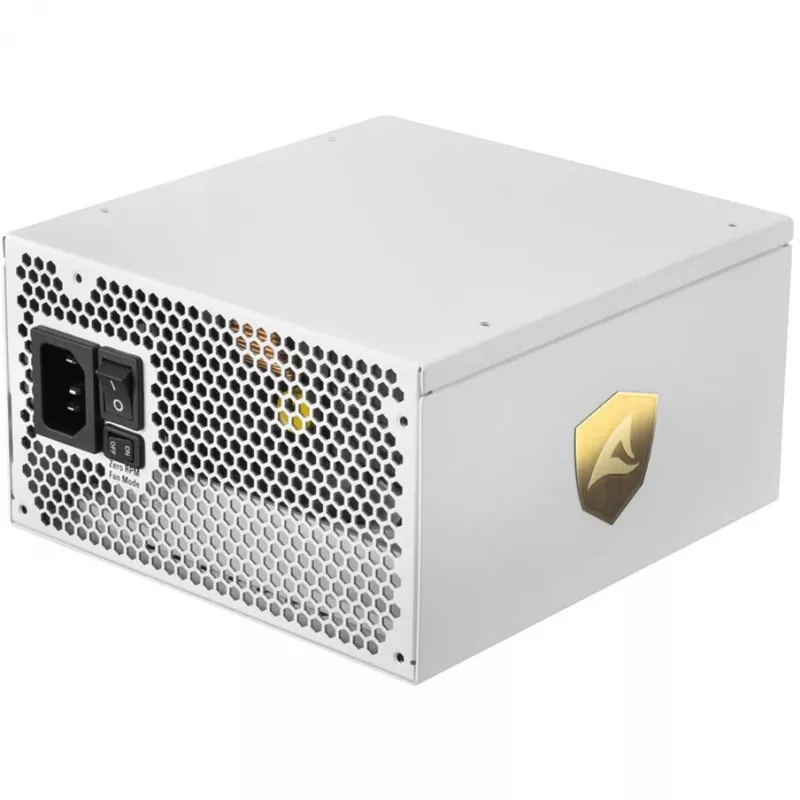

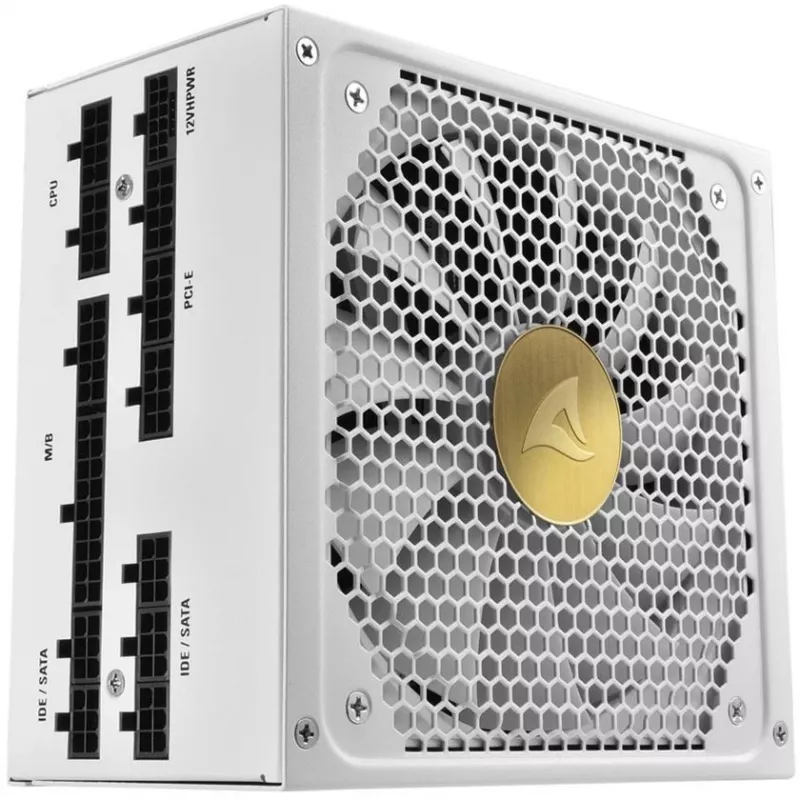

The Sharkoon Rebel P30 Gold 1000 W is a fully modular power supply unit with 80 PLUS Gold certification designed for high-performance desktop systems. It implements the ATX 3.0 standard and includes a PCIe Gen5 12VHPWR connector for compatibility with modern high-end graphics cards. The unit uses LLC resonant-converter and DC/DC technology and high-quality Japanese capacitors to provide stable voltages and optimized noise and heat characteristics. Cooling is provided by a quiet 135 mm fan with fluid dynamic bearing and an intelligent Zero RPM mode.

Advantages

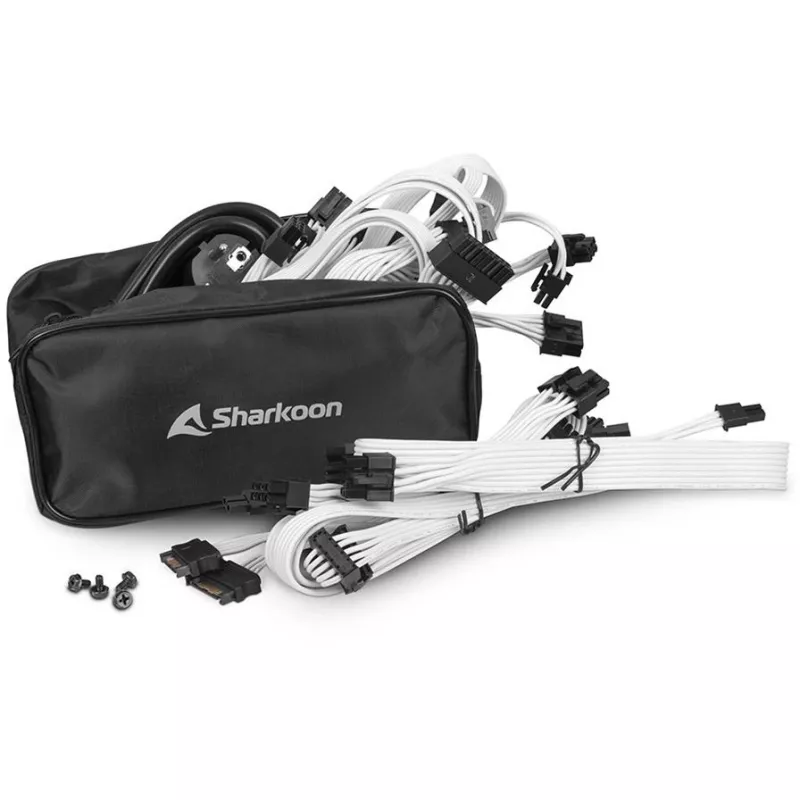

The PSU delivers up to 1000 W of continuous power while maintaining high conversion efficiency thanks to its 80 PLUS Gold certification. The ATX 3.0 compliance and the integrated PCIe Gen5 12VHPWR connection ensure support for current high-end GPUs. Built-in protective circuits guard against over-current, over- and under-voltage, short circuit, over-temperature and over-power events. The fully modular cable system reduces clutter and allows custom cable routing.

Suitable for

• Gaming PCs with high-end graphics cards
• Workstations requiring reliable 1000 W power delivery
• Custom builds where modular cabling and clean cable management are needed
• Systems that benefit from quiet operation and Zero RPM fan mode

Key specifications

• Total power: 1000 W
• 80 PLUS certification: 80 PLUS Gold
• Motherboard connector: 20+4 pin ATX (cable length 62 cm)
• PCIe: PCIe Gen5 12VHPWR and up to four 6+2-pin PCIe connectors (1,300 W model supports up to eight)
• SATA connectors: 12
• Additional adapters: two IDE and one floppy via included adapters

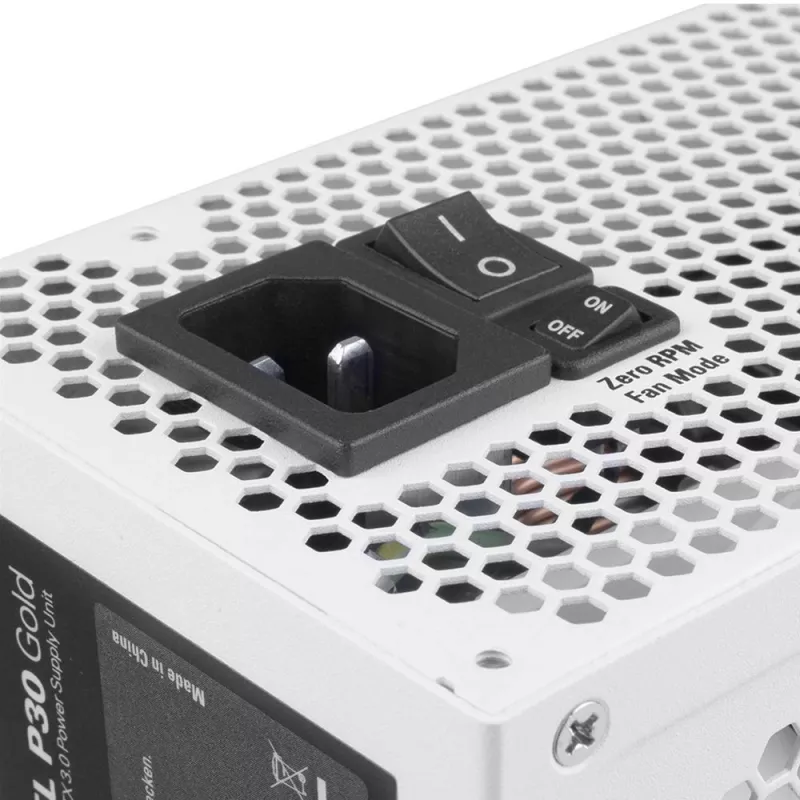

• Fan diameter: 135 mm (fluid dynamic bearing) with Zero RPM and fan delay modes
• AC input: 100–240 V, 50/60 Hz
• Weight: 1.7 kg
• Product colour: White

How to use

Install the Rebel P30 Gold into a compatible ATX chassis and connect the 20+4 pin ATX cable to the motherboard. Use the modular cables to connect drives, peripherals and graphics cards; attach the PCIe Gen5 12VHPWR connector to supported GPUs and use the 6+2-pin PCIe connectors as required. Configure the PSU fan behavior via the Zero RPM option for silent idle operation; note the fan delay feature continues cooling for up to 60 seconds after shutdown. Ensure the AC input matches the local mains specification and secure all cable connections before powering on.

Recommendations

For stable long-term operation, place the PSU in a well-ventilated case, route cables to avoid obstructing airflow, and verify that your graphics card and other components are within the 1000 W power budget. Use the modular cables provided and attach adapters only when necessary.
