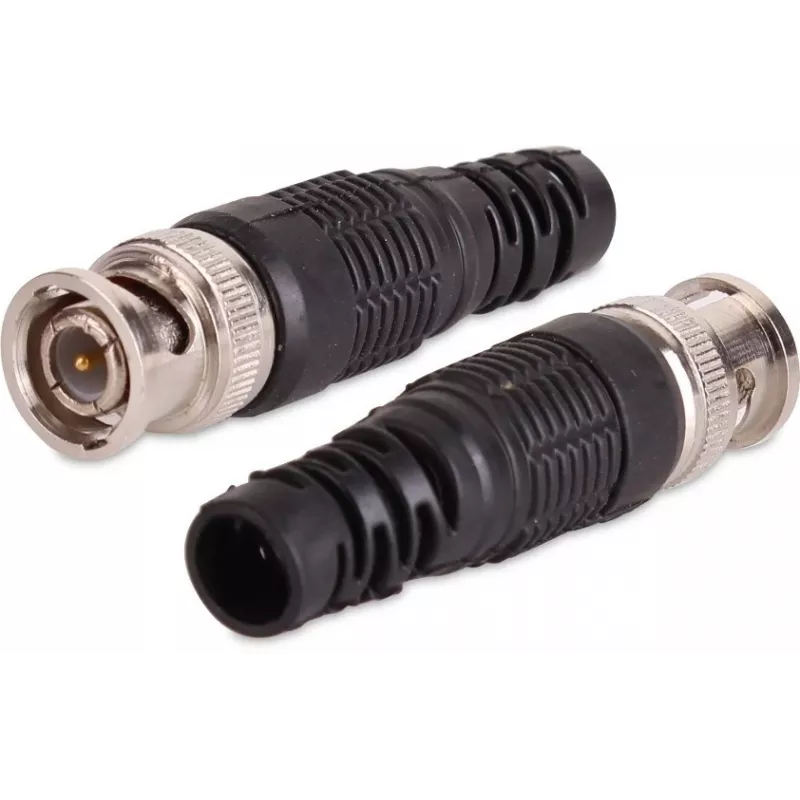

GETFORT Conector BNC macho para cable coaxial RG59, carcasa de plástico, conexión por tornillo, 75 ohmios

BNC male connector with screw-on termination for RG59 coaxial cable, delivering secure, solderless connections in CCTV and video surveillance systems. The nickel-plated brass body and Delrin insulation maintain stable 75 Ohm impedance for clear signal transmission up to 1 GHz.

Advantages

Tool-free installation reduces setup time and eliminates soldering errors. The robust plastic housing protects the connector in demanding environments, while nickel-plated contacts resist corrosion for long-term performance. With a durability of 500 mating cycles, this connector maintains integrity through repeated connections.

Suitable for

• CCTV camera installations using RG59 coaxial cable
• Video surveillance system maintenance and upgrades
• Professional AV setups requiring reliable BNC terminations
• Field technicians needing quick, repeatable connections

Key specifications

• Connector type: BNC male, straight form factor
• Impedance: 75 Ohm, frequency range DC to 1 GHz
• Termination: Solderless screw-on for RG59 cable
• Body material: Nickel-plated brass, plastic housing
• Operating temperature: -20°C to +70°C
• Voltage rating: 500V AC peak
• Compliance: MIL-STD-348B BNC interface

Recommendations

For consistent signal quality in coaxial video links, pair this connector with high-grade RG59 cable and ensure proper stripping dimensions. The screw-on design is ideal for on-site terminations where speed and reliability are paramount.
