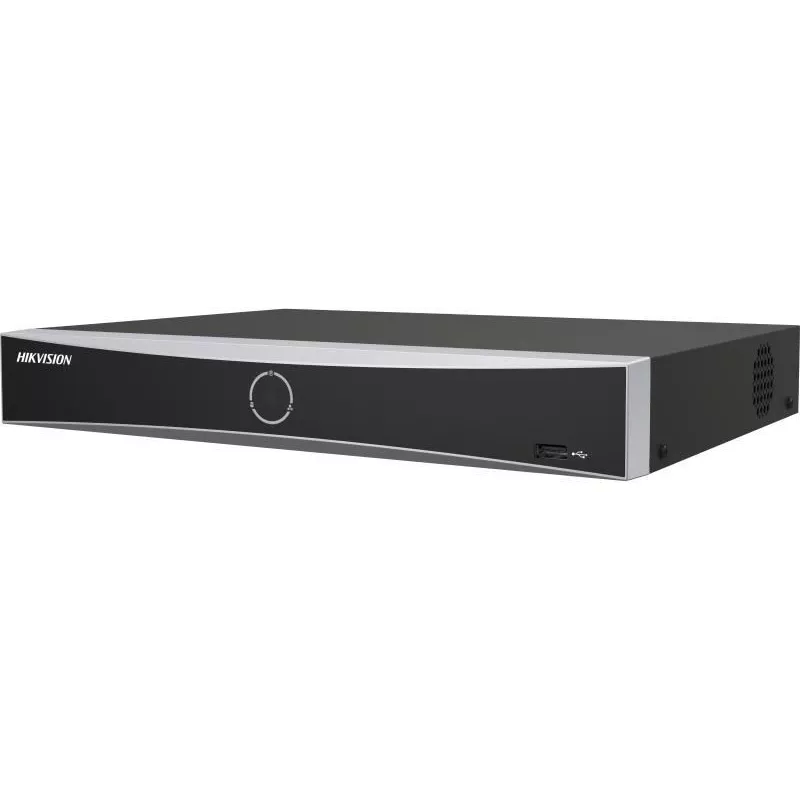

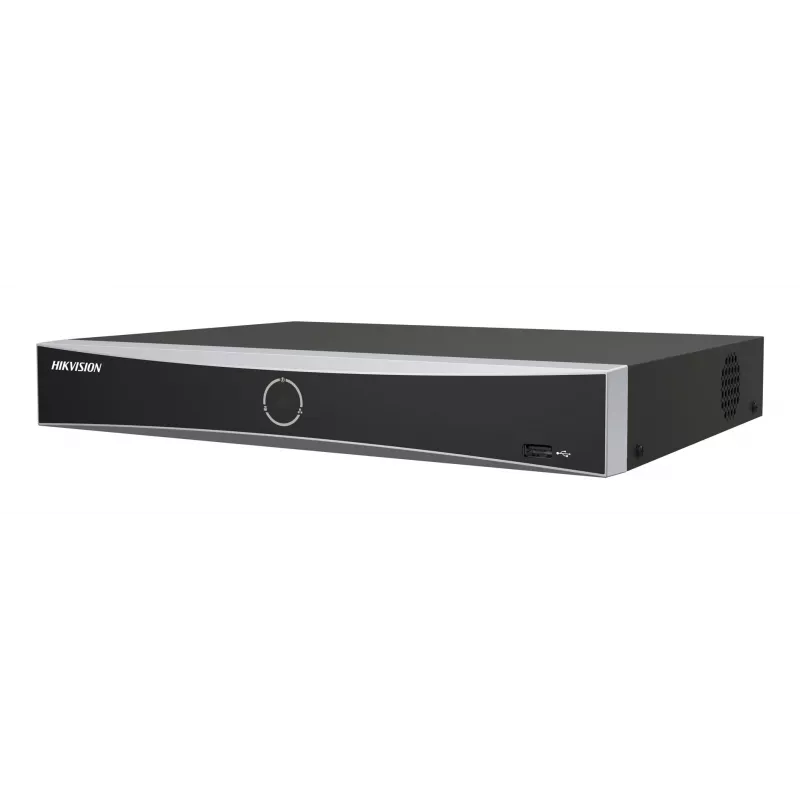

Grabador de vídeo en red Hikvision DS-7608NXI-K1(D) – grabador IP, 8 canales, alarma 4+1

Hikvision DS-7608NXI-K1(D) is an 8-channel IP network video recorder built to record, manage and play back streams from multiple IP cameras. The recorder offers centralized storage, live monitoring and synchronized playback, and supports Alarm 4+1 functionality for basic alarm integration. It is intended for small to medium commercial and residential surveillance installations that require multi-channel recording with alarm inputs and networked camera management.

Advantages

The recorder provides stable multi-channel recording and remote access over IP networks, enabling continuous or scheduled capture of camera streams. Alarm 4+1 support allows linking of external alarm inputs and a dedicated alarm output to trigger recording, notifications and external devices. The device supports centralized storage and timeline-based playback for efficient incident review. Compatible with common IP camera management protocols and Hikvision ecosystem tools, it simplifies configuration and monitoring for integrators and end users.

Suitable for

• Small retail shops and boutiques
• Residential buildings and apartment complexes
• Small offices and administrative premises
• Reception areas, parking spots and entry points
• Remote monitoring and basic alarm-integrated surveillance

Key specifications

• Channel capacity: 8 IP video channels for simultaneous camera connections
• Alarm interface: multiple alarm inputs with one alarm output for external device control
• Recording modes: continuous, scheduled and event-triggered recording
• Playback: synchronized multi-channel playback with timeline search
• Network: remote live view, playback and management via standard network interfaces
• Storage: internal HDD bay support for centralized video storage (HDD sold separately)
• Compatibility: supports common IP camera streams and Hikvision management protocols

How to use

Install the recorder in a suitable rack or cabinet with adequate ventilation and connect it to a local network switch. Attach IP cameras to the same network and add them to the recorder via the device interface or discovery tools. Configure recording schedules, motion detection and alarm linkage so that alarm inputs trigger recording or output actions as required. Use the recorder’s local HDMI/VGA outputs or remote client software and mobile apps to view live feeds and perform playback. Regularly monitor disk usage and configure overwriting policies to maintain continuous recording.

Recommendations

Place the recorder in a secure, ventilated location and use enterprise-grade hard drives designed for surveillance workloads. Verify camera compatibility and network bandwidth to ensure stable multi-channel recording. Configure user access rights and enable secure remote access settings to protect recorded data and management interfaces.
