GÜDE EPC 87-1310-18 16A 24xC13 6xC19 2xSensorPort - unidad de distribución de energía

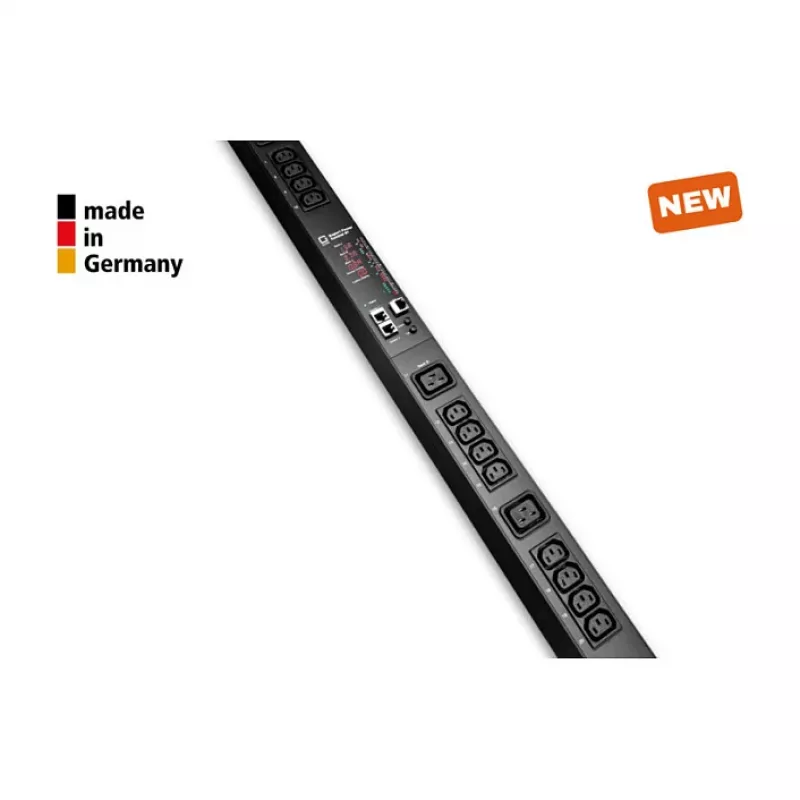

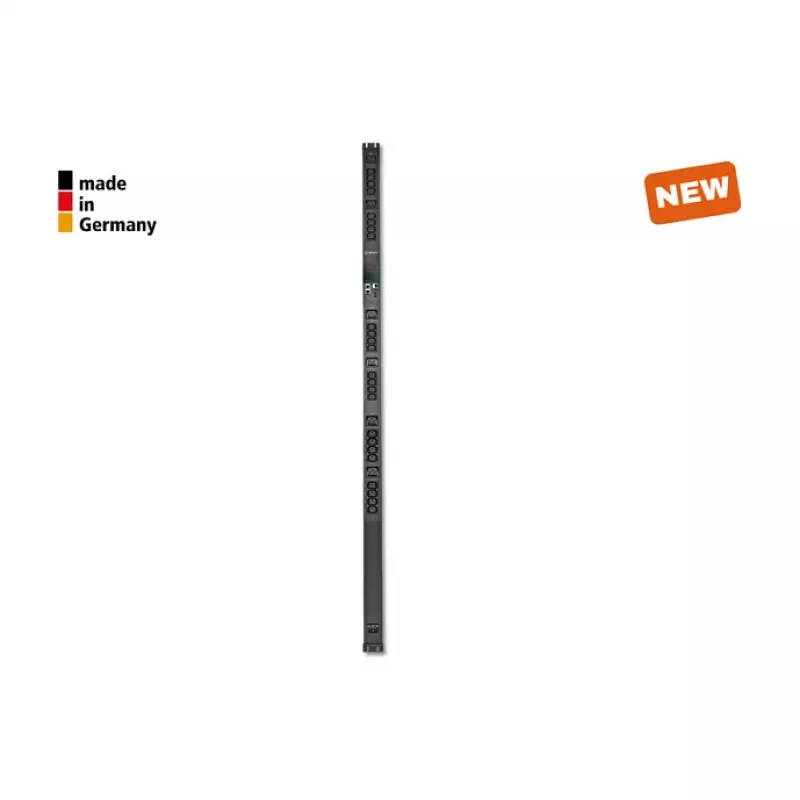

The GüDE EPC 87-1310-18 is a professional switched and metered PDU designed for 19-inch racks. It offers 30 individually switchable outlets (24x IEC C13 and 6x IEC C19) with per-port metering for current, voltage, power factor, active power, and energy. With a 16A input (IEC C20) and integrated circuit breaker, it provides reliable power distribution and remote management via Ethernet.

Advantages

Individual outlet switching and per-port metering allow precise power control and monitoring. The integrated LED display shows real-time data. Two sensor ports support optional temperature/humidity sensors for environmental monitoring. Advanced features include power sequencing, watchdog function, scheduling, and alarms via email or SNMP.

Suitable for

• Data centers and server rooms requiring intelligent power distribution
• IT professionals needing remote power management and monitoring
• Applications with mixed C13 and C19 equipment

Key specifications

• Input: 230V AC, 16A, IEC C20 plug
• Output: 24x IEC C13 + 6x IEC C19, total 16A
• Switching: Individual per outlet
• Metering: Per-port (current, voltage, power factor, active power, energy)
• Network: 1x Ethernet RJ45, protocols: HTTP/HTTPS, SNMPv1/v2c/v3, Telnet, SSH, Modbus/TCP, MQTT, Syslog
• Sensor ports: 2x RJ11
• Form factor: 1U 19-inch rackmount
• Overcurrent protection: Integrated 16A circuit breaker

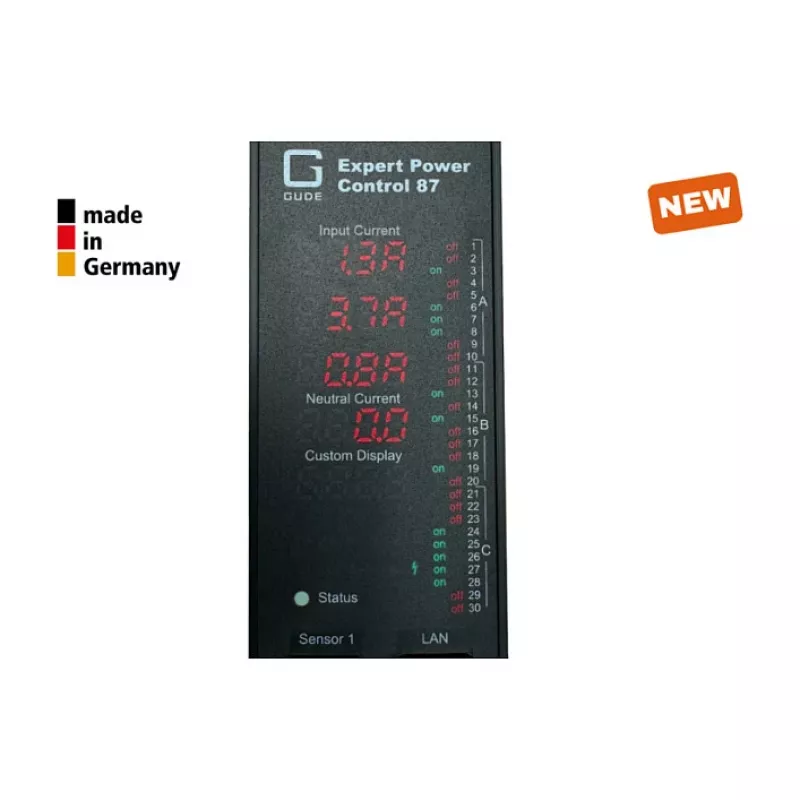

• Display: LED
• Operating temperature: 0 - 50 °C

Recommendations

For optimal performance, use with GüDE temperature/humidity sensors (sold separately). Ensure proper ventilation and do not exceed 16A total load.
