Hager universZ armario de contadores completo 1100x800x205mm trifásico 2 emplazamientos de contador APZ blanco ZB333Q25ENT

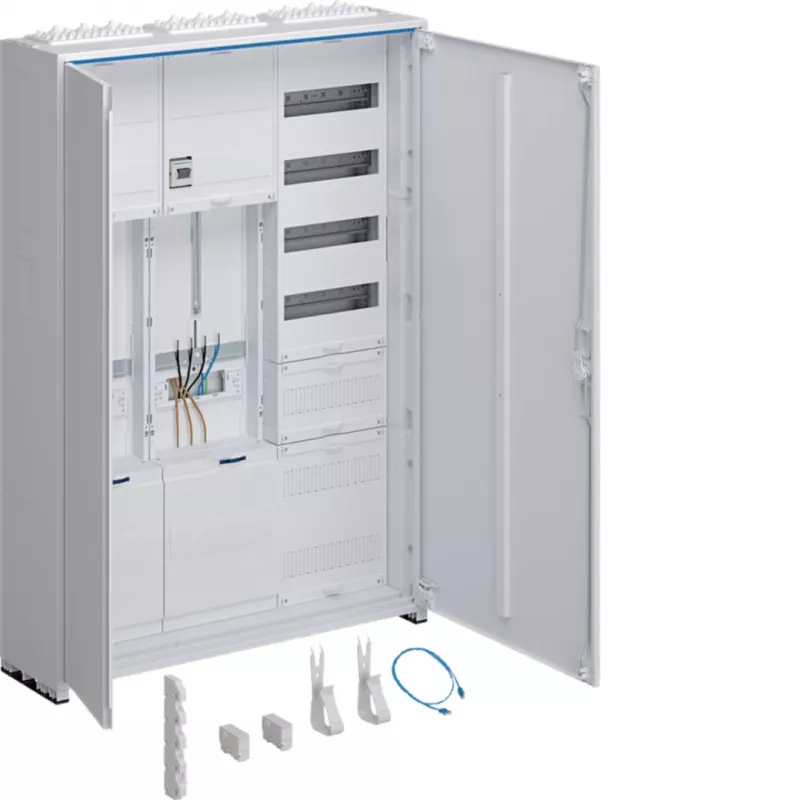

Complete meter cabinet from the Hager universZ series, providing a robust enclosure for electrical distribution with space for two 3-phase meters and an integrated APZ (smart meter gateway) compartment. The cabinet measures 1100 mm high, 800 mm wide, and 205 mm deep, constructed from sheet steel with a white RAL 9010 finish and IP44 protection.

Advantages

This cabinet is designed for flexible installation, suitable for surface or flush mounting with appropriate accessories. It features a lockable steel door, pre-punched cable entries at top and bottom, and a 5-pole main busbar with QuickConnect terminals for efficient wiring. Compliance with VDE-AR-N 4100, DIN VDE 0603-1, and DIN 43870-1 ensures adherence to German grid connection standards.

Suitable for

• Residential and commercial electrical installations requiring a meter cabinet with APZ space
• Three-phase power distribution with up to two meter positions
• Integration of smart meter gateways and additional devices

Key specifications

• Series: universZ
• Number of meter places: 2
• Phases: 3-phase
• APZ (smart meter gateway space): integrated
• Space for additional devices: yes
• Dimensions (H x W x D): 1100 x 800 x 205 mm
• Material: sheet steel
• Colour: white (RAL 9010)
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Protection class: IP44
• Main busbar: 5-pole
• Connection technology: QuickConnect terminals
• Standards: VDE-AR-N 4100, DIN VDE 0603-1, DIN 43870-1

Recommendations

For installations requiring a certified meter cabinet with APZ compartment, this Hager unit offers a reliable and compliant solution. Ensure proper mounting accessories are selected based on installation type.
