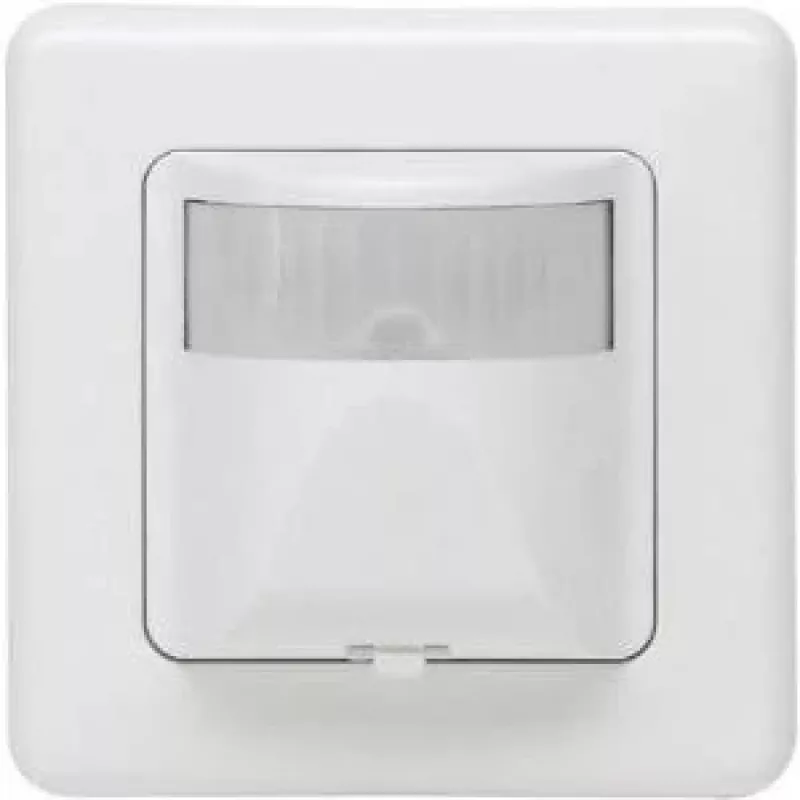

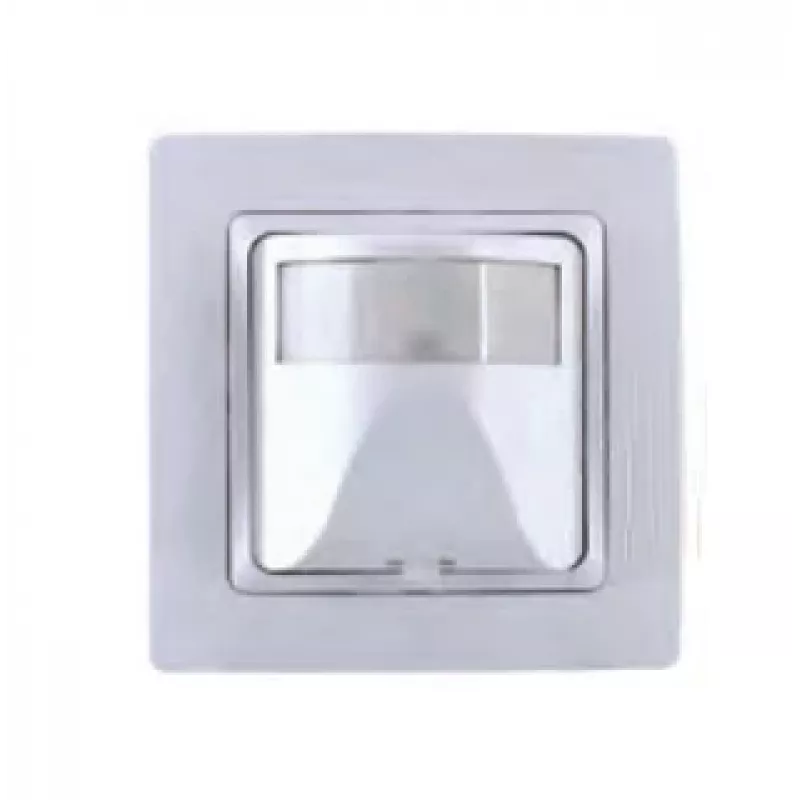

HEINRICH KOPP 808413011 detector de movimiento por infrarrojos, con cable, montaje en pared, blanco, 180° PIR, alcance 12 m, IP44

The HEINRICH KOPP 808413011 stands out with its 180° detection angle and adjustable twilight setting from 3 to 2000 lux, making it suitable for both indoor and outdoor use. Unlike basic motion sensors, it offers a wide detection range of up to 12 meters at a 2.5m mounting height and a time setting from 10 seconds to 7 minutes.

Highlights

• Passive infrared (PIR) sensor with 180° detection angle
• Wired connection, surface-mounted on wall
• IP44 rated for outdoor and indoor use
• Adjustable time and twilight settings
• Switching capacity up to 1000W ohmic load

In daily use

This motion sensor automatically switches lighting on when movement is detected and off after a set time. The twilight sensor ensures it only operates in low light conditions, saving energy. With a standby power consumption below 0.5W, it is efficient for continuous operation.

Full specifications

• Detection angle: 180°
• Detection range: up to 12 m at 2.5 m mounting height
• Mounting type: surface-mounted, wall
• Product colour: white
• International Protection (IP) code: IP44
• Operating voltage: 230V AC, 50Hz
• Max. switching capacity (ohmic load): 1000W
• Max. switching capacity (inductive/LED load): 300W
• Recommended installation height: 1.8 - 2.5 m
• Time setting range: approx. 10 seconds to 7 minutes
• Twilight setting range: approx. 3 to 2000 lux
• Sensor technology: passive infrared (PIR)
• Connection type: wired (3-wire)
• Operating temperature: -20°C to +40°C
• Standby power consumption: < 0.5W
• Housing material: UV-stabilized plastic
• Application area: indoor & outdoor

Final note

For reliable motion-activated lighting in corridors, entrances, or outdoor areas, the HEINRICH KOPP 808413011 offers flexible settings and durable construction.
