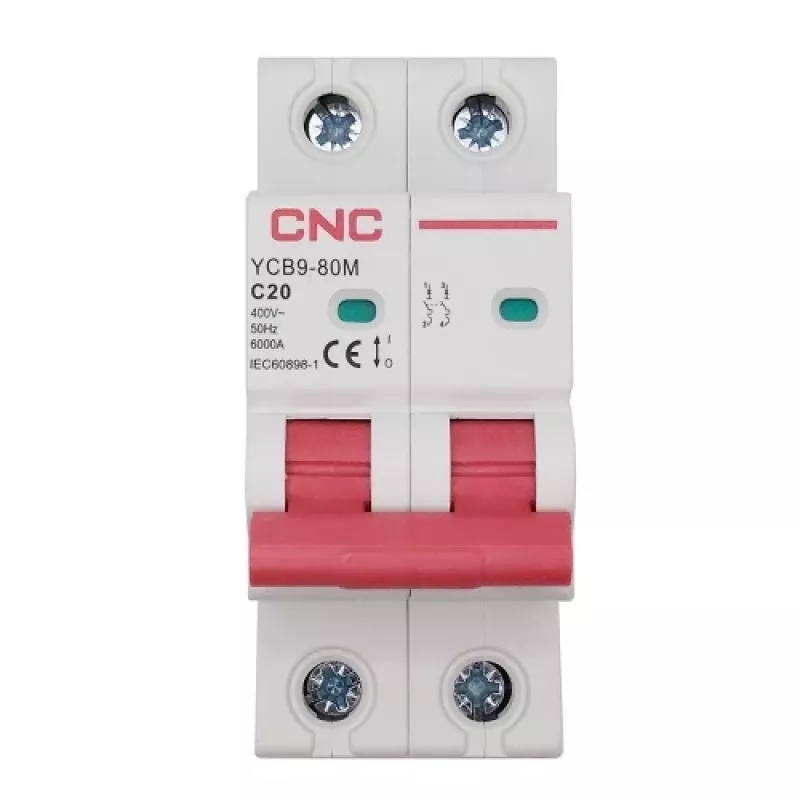

Interruptor automático CNC, 2P, 20A, clase C, 6kA

Interruptor automático CNC, 2P, 20A, clase C, 6kA
Interruptor automático CNC, 2P, 20A, clase C, 6kA
9,17 €
PDF
PDF
Stock 5 Código 2181617 Modelo NV821501 Garantía 3 años

Envíos y devoluciones

Entrega estimada viernes, 27 de noviembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

CNC Circuit Breaker, 2P, 20A, C Class, 6kA

Miniature circuit breaker, 2-pole, 20A, Class C, 6kA. Provides protection against overload and short circuit. Resistant to flame, high temperature and impact. Contact position indication (red shows the contact is closed, green shows it is open). Rated ultimate short-circuit breaking capacity (Icu): 6,000 A.

Genuine CNC product — MPN: NV821501 · EAN: 6942034315405.

Aspectos destacados
  • Residential distribution boards
  • Commercial branch circuit protection
  • Protection of lighting and socket circuits
  • DIN-rail electrical panels where space is limited
  • Number of poles: 2
  • Rated current: 20 A
  • Tripping class: C
  • Rated voltage (Ue): AC 400 V
  • Insulation voltage (Ui): 500 V
  • Rated frequency: 50/60 Hz
  • Rated breaking capacity (Icu): 6000 A
  • Rated impulse withstand voltage (Uimp): 6000 V
  • Mechanical life: 20,000 cycles
  • Electrical life: 8,000 cycles
  • Safety class: IP20
  • Terminal connection type: cable / pin-type busbar
  • Wire/busbar cross-section: up to 25 mm² / 18-3 AWG
  • Connection direction: top and bottom
  • Mounting: DIN-rail EN 60715 (35 mm) with fast clip
  • Operating temperature: -5°C to +40°C (daily average
  • Storage temperature: -25°C to +70°C
  • Dimensions: 85.5 x 78.8 x 36 mm
  • Standards: IEC 60898-1 / EN 60898-1

Especificaciones

Especificaciones
Corriente nominal
20 A
Frecuencia de entrada
50/60 Hz
Número de polos
2
Poder de corte
6 kA
Tensión nominal
AC 400 V
