Interruptor automático CNC, 4P, 32A, curva C, 6kA

Interruptor automático CNC, 4P, 32A, curva C, 6kA
Interruptor automático CNC, 4P, 32A, curva C, 6kA
19,36 €
PDF
PDF
Stock 5 Código 2181632 Modelo NV821624 Garantía 3 años

Envíos y devoluciones

Entrega estimada viernes, 27 de noviembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

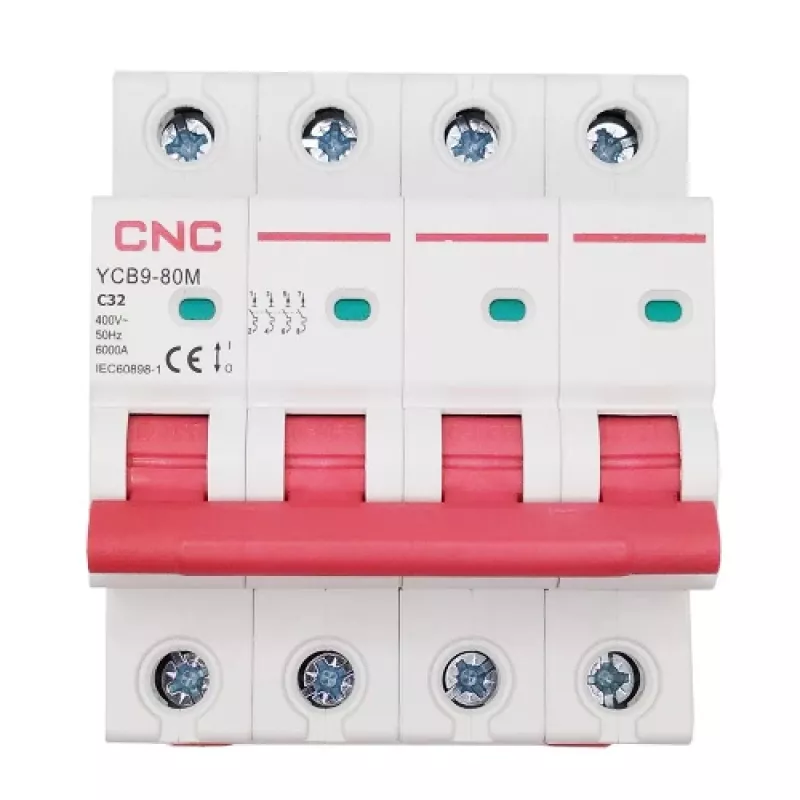

CNC Circuit Breaker, 4P, 32A, C Class, 6kA

Circuit breaker, 4-pole, 32 A, C class, 6 kA. Protection against overload and short circuit. Resistant to flame, high temperature and impact. Contact position indicator (red shows the contact is closed, green shows it is open). Rated short-circuit breaking capacity (Icu): 6000 A.

Genuine CNC product — MPN: NV821624 · EAN: 6942034316150.

Aspectos destacados
  • Residential distribution boards
  • Small commercial electrical panels
  • Light industrial control and distribution circuits
  • Applications requiring simultaneous 4‑pole protection
  • Number of poles: 4
  • Rated current: 32 A
  • Tripping characteristic: Class C
  • Rated operational voltage: AC 400 V
  • Insulation voltage: 500 V
  • Rated breaking capacity (Icu): 6000 A
  • Rated impulse withstand voltage (Uimp): 6000 V
  • Rated frequency: 50/60 Hz
  • Mechanical life: 20,000 cycles
  • Electrical life: 8,000 cycles
  • Protection degree: IP20
  • Terminal types: cable and pin‑type busbar
  • Wire / busbar cross‑section: up to 25 mm² / 18‑3 AWG
  • Installation: DIN rail EN 60715 (35 mm) with fast clip
  • Operating temperature: -5 °C to +40 °C (daily average
  • Storage temperature: -25 °C to +70 °C
  • Dimensions: 85.5 × 78.8 × 71.5 mm
  • Standards: IEC 60898‑1 / EN 60898‑1
  • Warranty: 24 months
