Interruptor automático CNC, 4P, 50A, clase C, 6kA

Interruptor automático CNC, 4P, 50A, clase C, 6kA
Interruptor automático CNC, 4P, 50A, clase C, 6kA
29,39 €
PDF
PDF
Stock 5 Código 2181634 Modelo NV821648 Garantía 3 años

Envíos y devoluciones

Entrega estimada viernes, 27 de noviembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

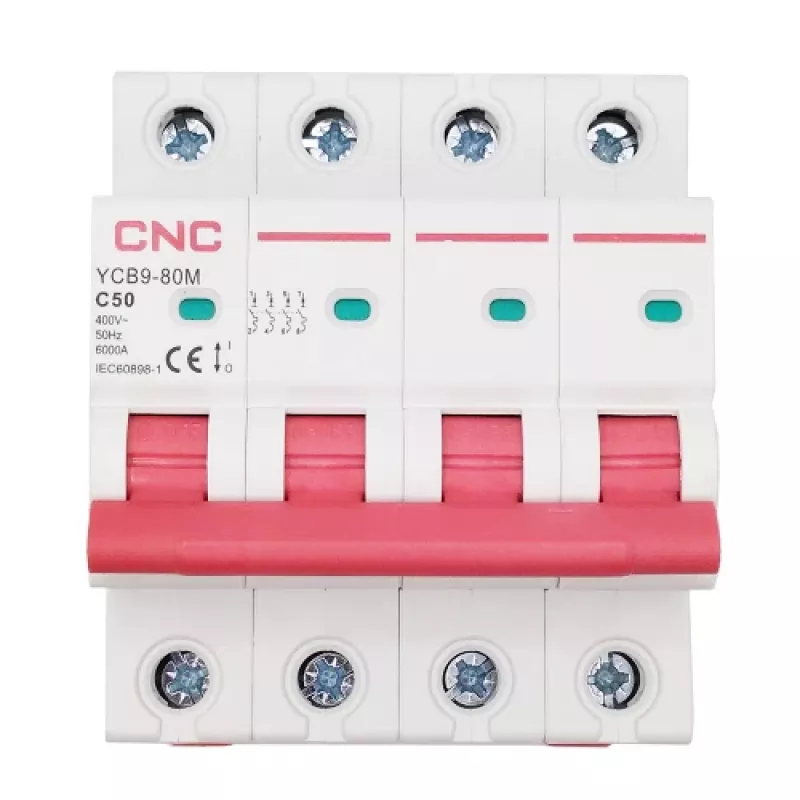

CNC Circuit Breaker, 4P, 50A, C Class, 6kA

Automatic circuit breaker, 4-pole, 50 A, Class C, 6 kA. Provides protection against overload and short circuit. Resistant to flame, high temperature and impact. Contact-position indicator (red shows the contact is closed, green shows it is open). Rated short-circuit breaking capacity (Icu): 6000 A.

Genuine CNC product — MPN: NV821648 · EAN: 6942034316174.

Aspectos destacados
  • Three-phase and multi-pole residential distribution boards
  • Commercial electrical panels requiring 4-pole protection
  • Light industrial installations with compact DIN-rail mounting
  • Poles: 4
  • Rated current (In): 50 A
  • Tripping class: C
  • Rated voltage (Ue): AC 400 V
  • Insulation voltage (Ui): 500 V
  • Rated frequency: 50/60 Hz
  • Rated breaking capacity (Icu): 6000 A
  • Rated impulse withstand voltage (Uimp): 6000 V
  • Mechanical life: 20,000 operations
  • Electrical life: 8,000 operations
  • Safety class: IP20
  • Terminal connection type: cable / pin-type busbar
  • Wire/busbar cross-sectional area: up to 25 mm² / 18-3 AWG
  • Connection: top and bottom
  • Installation: DIN-rail EN 60715 (35 mm) with fast clip
  • Operating temperature: -5°C to +40°C (daily average
  • Storage temperature: -25°C to +70°C
  • Dimensions: 85.5 x 78.8 x 71.5 mm
  • Standards: IEC 60898-1 / EN 60898-1
  • Manufacturer: HiSmart, MPN NV821648, EAN 6942034316174
