Interruptor automático CNC, 3P, 50A, clase C, 6kA

Interruptor automático CNC, 3P, 50A, clase C, 6kA
Interruptor automático CNC, 3P, 50A, clase C, 6kA
11,32 €
PDF
PDF
Stock 5 Código 2181627 Modelo NV821570 Garantía 3 años

Envíos y devoluciones

Entrega estimada jueves, 26 de noviembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

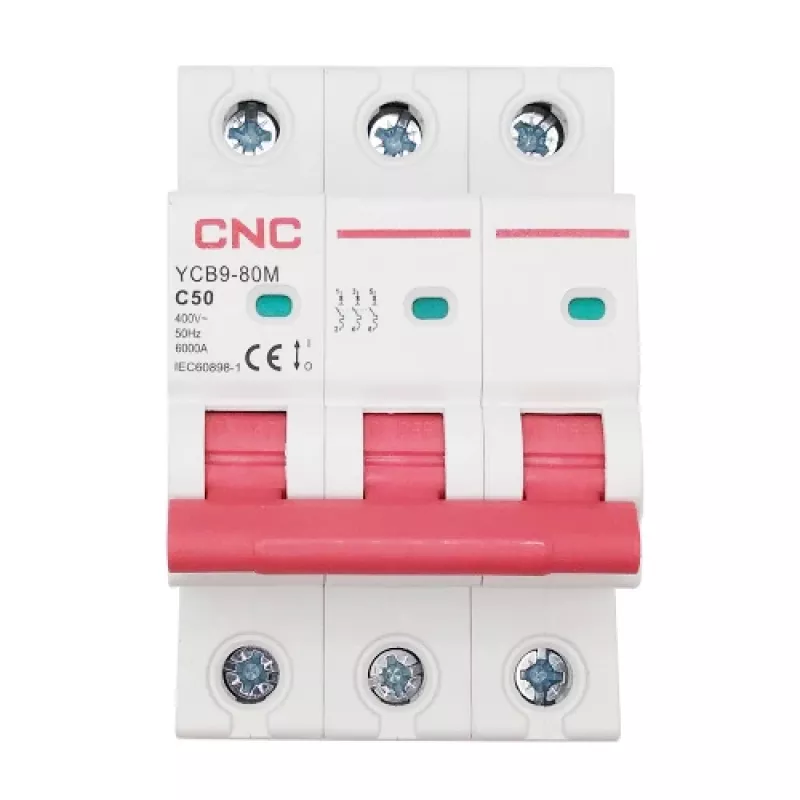

CNC Circuit Breaker, 3P, 50A, C Class, 6kA

An automatic circuit breaker, 3-pole, 50A, Class C, 6kA. Protection against overload and short circuit. Resistant to flame, high temperature and impact. Contact-position indication (red shows the contact is closed, green that it is open). Rated short-circuit breaking capacity (Icu): 6000 A.

Genuine CNC product — MPN: NV821570 · EAN: 6942034315818.

Aspectos destacados
  • Protection of three-phase distribution circuits in residential electrical panels
  • Commercial and light industrial distribution boards
  • DIN-rail mounting installations requiring compact, three-pole protection
  • Number of poles: 3
  • Rated current (In): 50 A
  • Trip class: C
  • Rated operational voltage (Ue): AC 400 V
  • Insulation voltage (Ui): 500 V
  • Rated frequency: 50/60 Hz
  • Rated breaking capacity (Icu): 6000 A
  • Rated impulse withstand voltage (Uimp): 6000 V
  • Mechanical life: 20,000 cycles
  • Electrical life: 8,000 cycles
  • Protection degree: IP20
  • Terminal connection type: cable / pin-type busbar; accepts conductors up to 25 mm² (18–3 AWG)
  • Connection: top and bottom
  • Mounting: DIN rail EN 60715 (35 mm) with fast clip
  • Operating temperature: -5°C to +40°C (daily average
  • Storage temperature: -25°C to +70°C
  • Dimensions: 85.5 × 78.8 × 54 mm
  • Standards: IEC 60898-1 / EN 60898-1
  • Warranty: 24 months
