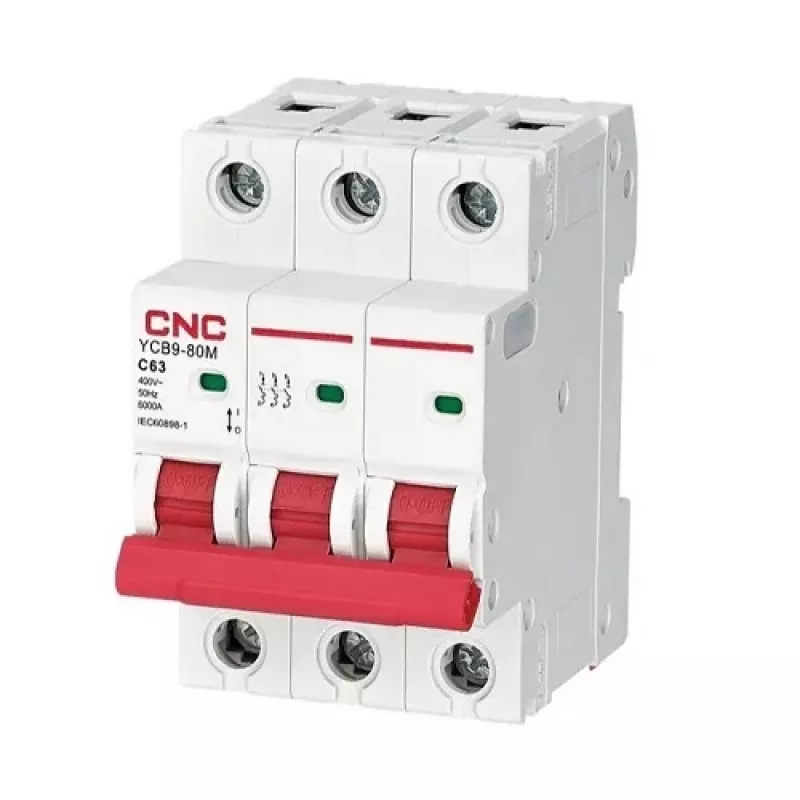

Interruptor automático CNC, 3P, 63A, clase C, 6kA

Interruptor automático CNC, 3P, 63A, clase C, 6kA
Interruptor automático CNC, 3P, 63A, clase C, 6kA
11,32 €
PDF
PDF
Stock 5 Código 2181628 Modelo NV821587 Garantía 3 años

Envíos y devoluciones

Entrega estimada viernes, 27 de noviembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

CNC Circuit Breaker, 3P, 63A, C Class, 6kA

Automatic circuit breaker, 3-pole, 63A, class C, 6kA. Provides protection against overload and short circuit. Resistant to flame, high temperature and impact. Contact position indication (red shows the contact is closed, green shows it is open). Rated short-circuit breaking capacity (Icu): 6000A.

Genuine CNC product — MPN: NV821587 · EAN: 6942034315825.

Aspectos destacados
  • Three‑phase distribution boards in residential buildings
  • Small commercial electrical installations
  • Light industrial circuits with moderate inrush currents
  • Number of poles: 3
  • Rated current (In): 63 A
  • Tripping class: C
  • Rated operational voltage (Ue): AC 400 V
  • Insulation voltage (Ui): 500 V
  • Rated frequency: 50/60 Hz
  • Rated breaking capacity (Icu): 6000 A
  • Rated impulse withstand voltage (Uimp): 6000 V
  • Mechanical life: 20,000 cycles
  • Electrical life: 8,000 cycles
  • Protection degree: IP20
  • Terminal connection: cable or pin‑type busbar, up to 25 mm² / 18‑3 AWG
  • Connection orientation: top and bottom
  • Mounting: DIN rail EN 60715 (35 mm) with fast clip
  • Operating temperature: -5°C to +40°C (daily average
  • Storage temperature: -25°C to +70°C
  • Dimensions (H×W×D): 85.5 × 78.8 × 54 mm
  • Standards: IEC 60898‑1 / EN 60898‑1
  • Rated short‑circuit breaking capacity: 6 kA
