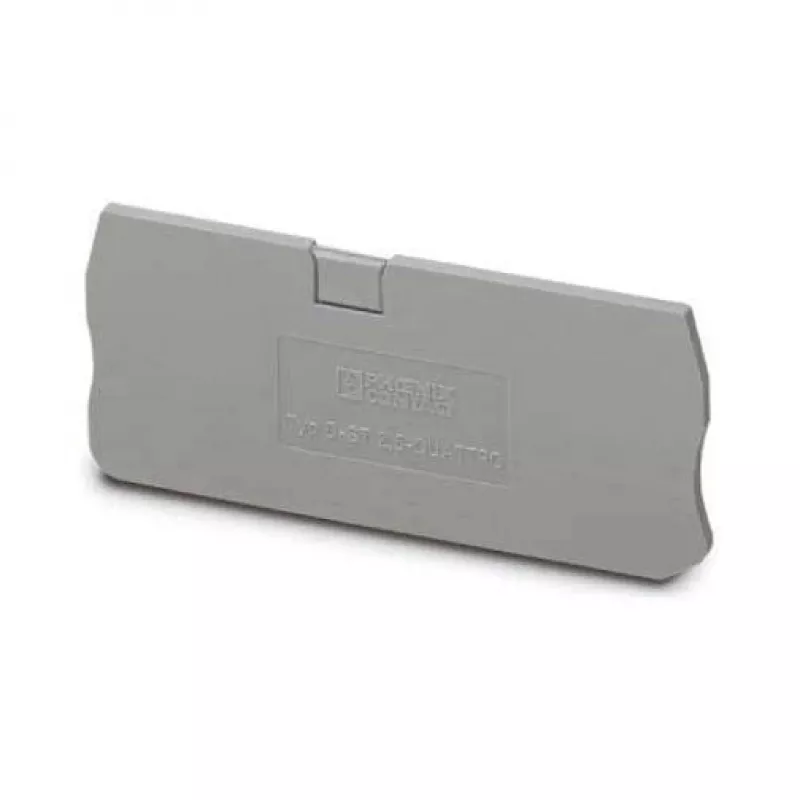

Phoenix Contact D-ST 2,5-QUATTRO Tapa final - Gris, poliamida, UL 94 V0, 2,2 mm de ancho

In industrial control panels and switchgear, open terminal block sides can expose live parts and compromise safety. The Phoenix Contact D-ST 2,5-QUATTRO end cover snaps onto the side of a D-ST 2,5-QUATTRO terminal block, providing visual separation and reliable touch protection. This grey polyamide cover is a small but essential component for maintaining a safe and tidy installation.

Key specifications

• Compatible with D-ST 2,5-QUATTRO terminal blocks
• Material: Polyamide (PA), insulating material group I
• Colour: Grey
• Flammability rating: UL 94 V0
• Operating temperature range: -60 °C to 105 °C
• Dimensions: width 2.2 mm, length 60.5 mm, height 42.5 mm
• Mounting: side, closes open terminal side
• Compliant with RoHS and REACH

Why choose it

This end cover is engineered for durability and safety. The polyamide material offers high mechanical strength and excellent insulating properties, while the UL 94 V0 rating ensures it self-extinguishes in case of fire. Its slim 2.2 mm profile adds minimal width, allowing dense terminal block arrangements without compromising protection. Installation is tool-free: simply press the cover onto the terminal block side.

Ideal use cases

• Terminal block rows in control cabinets
• Motor control centers and distribution boards
• Industrial automation panels
• Any application using D-ST 2,5-QUATTRO terminal blocks

Good to know

Phoenix Contact's CLIPLINE complete system ensures compatibility across a wide range of accessories. The D-ST 2,5-QUATTRO end cover is part of this modular system, allowing you to build safe and organized terminal assemblies. Its grey colour matches standard terminal block housings, providing a uniform appearance.
