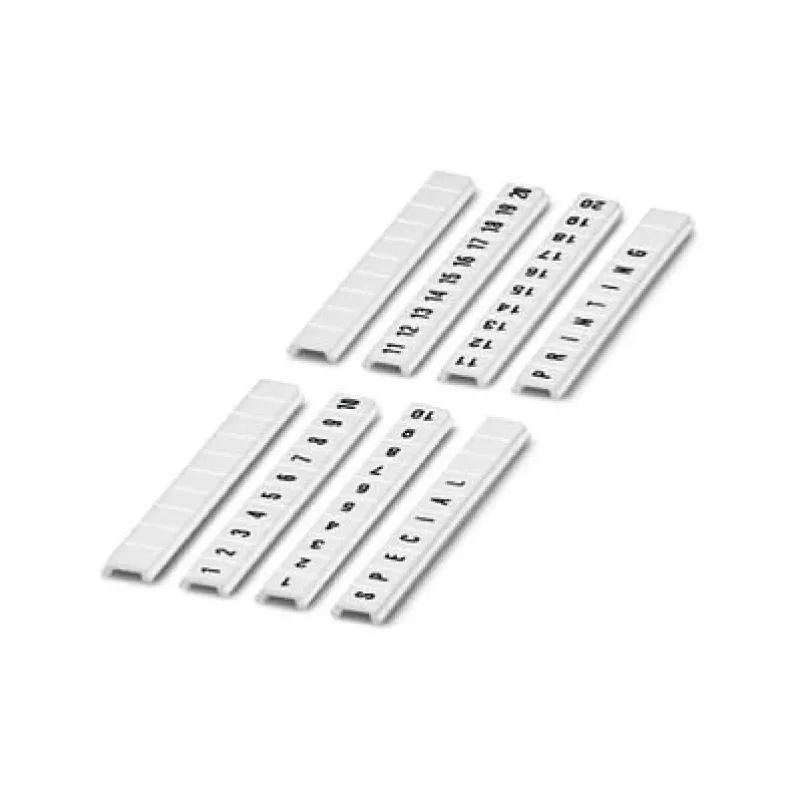

Phoenix Contact ZB 5.2-10 tiras de marcado para bornes, blancas, 10 marcadores, paso 5,2 mm

The Phoenix Contact ZB 5.2-10 is a high-quality terminal block marker strip designed for clear and durable identification of terminal blocks with a 5.2 mm pitch. This pre-printed strip features consecutive numbers 1 to 10, making it ideal for systematic wiring and maintenance. Made from polyamide (PA), the markers offer excellent resistance to wiping, UV radiation, and solvents, ensuring long-lasting legibility in industrial environments.

Advantages

• Pre-printed with consecutive numbers for quick and consistent labeling
• Snap-on mounting for easy installation without tools
• Wipe-resistant, UV resistant, and solvent resistant for durability
• Wide operating temperature range from -40 °C to 100 °C
• UL 94 V2 flammability rating for safety
• RoHS compliant for environmental responsibility

Suitable for

• Terminal block marking in control cabinets and distribution boards
• Device and component identification in industrial automation
• Wire and cable labeling in electrical installations

Key specifications

• Marker Type: Zack Marker Strip
• Legend: Consecutive Numbers 1-10
• Color: White
• Material: Polyamide (PA)
• Marker Width: 5.2 mm
• Marker Height: 10.5 mm
• Strip Length: 49.5 mm
• Number of Markers per Strip: 10
• Mounting Type: Snap-on
• Print Direction: Horizontal
• Operating Temperature Range: -40 °C to 100 °C
• Flammability Rating: UL 94 V2
• Resistance: Wipe-resistant, UV resistant, Solvent resistant
• Compatibility: Universal for terminal blocks with 5.2 mm pitch
• Application: Terminal block marking, device marking
• Environmental Compliance: RoHS compliant
• Product Series: ZB
• Pitch: 5.2 mm
• Printing Method: Pre-printed
• Packaging Unit: 1 strip (10 markers)

Recommendations

For optimal results, use with Phoenix Contact terminal blocks of 5.2 mm pitch. Ensure the mounting surface is clean and dry before snap-on installation. Store in a cool, dry place away from direct sunlight.
