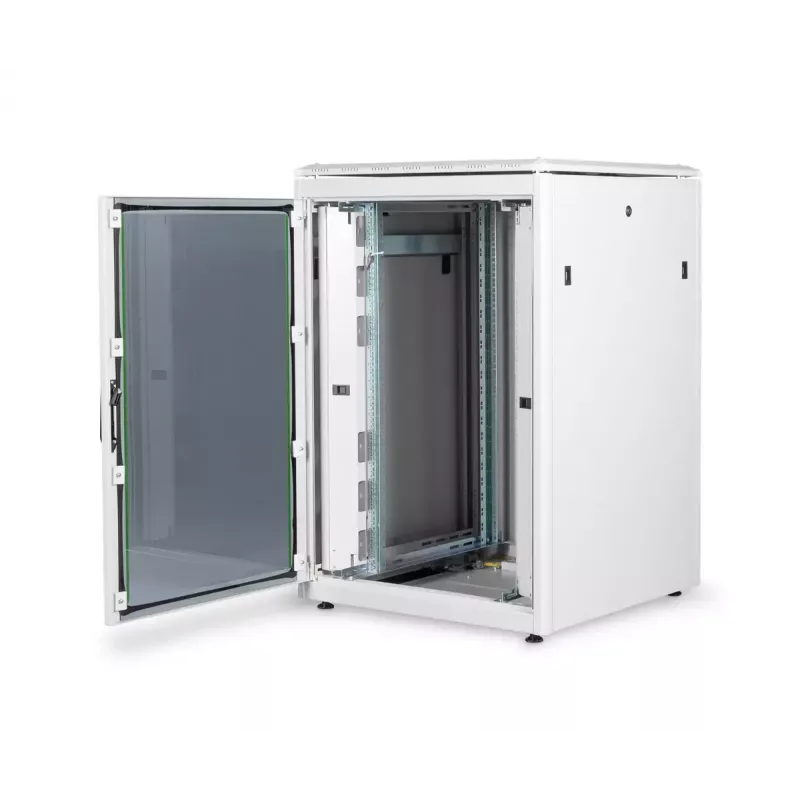

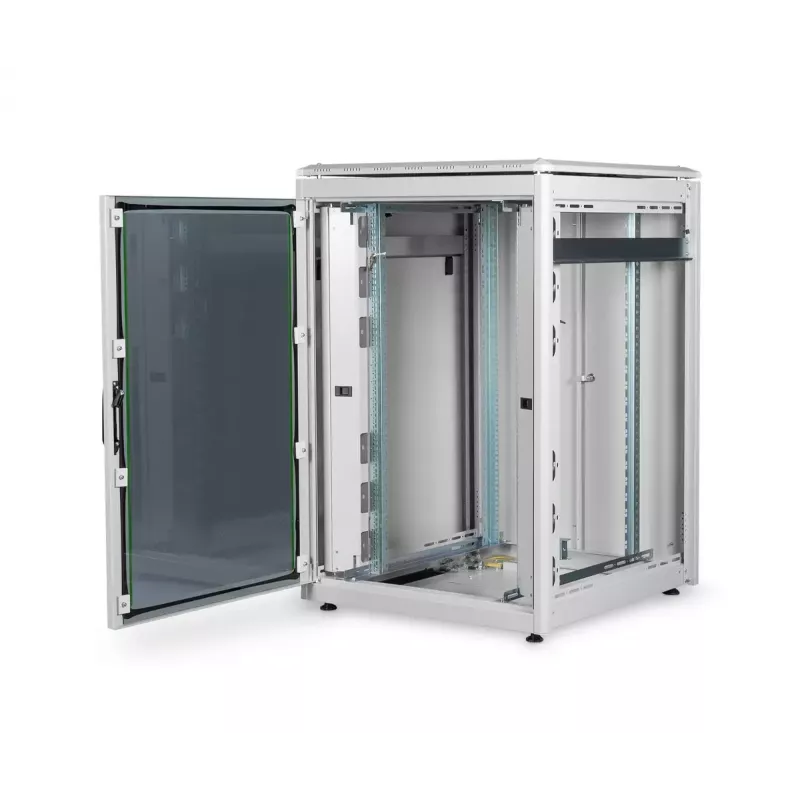

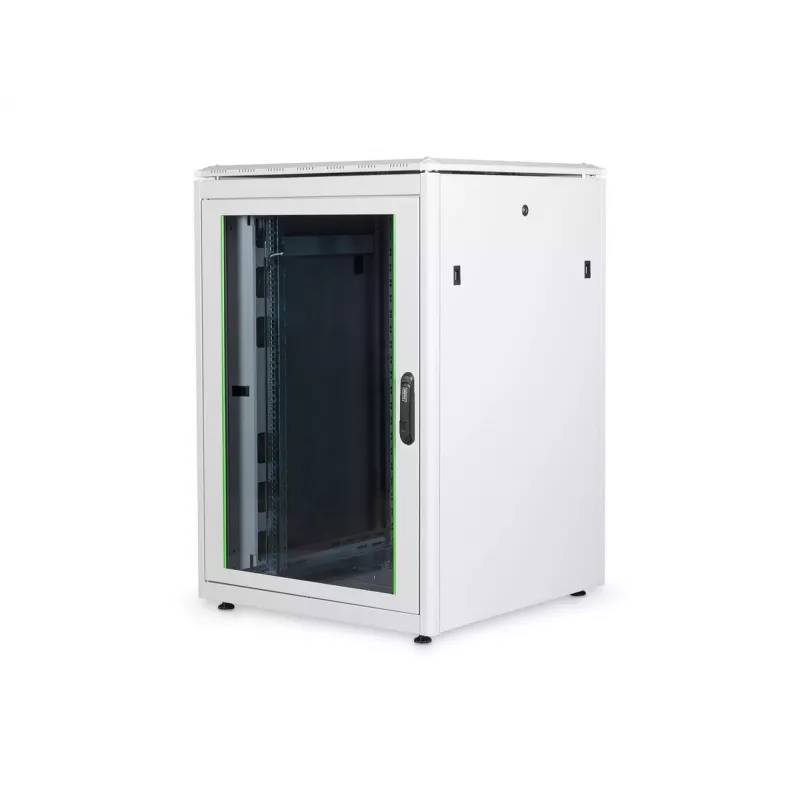

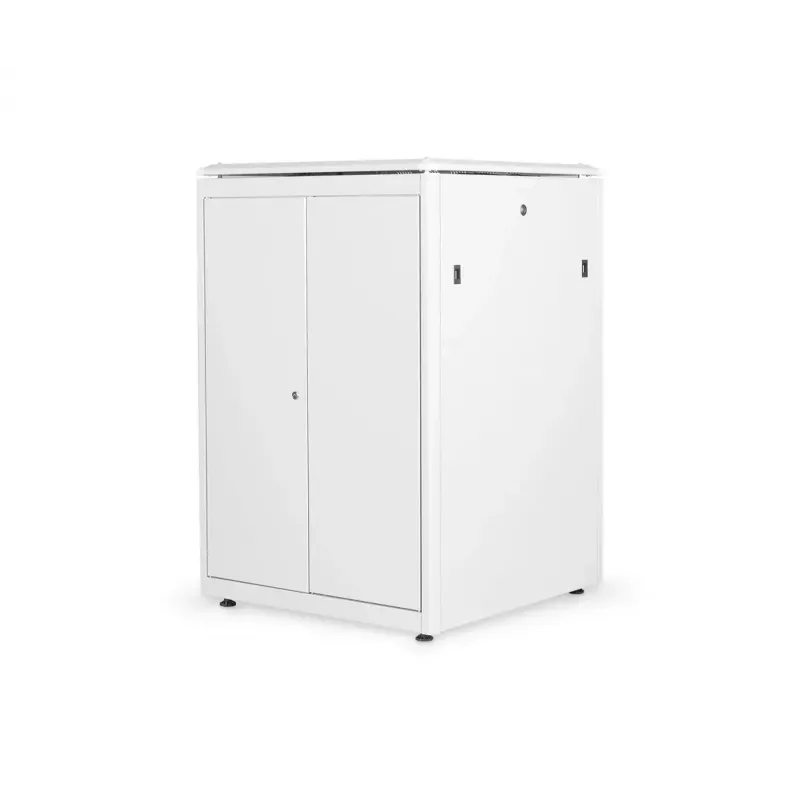

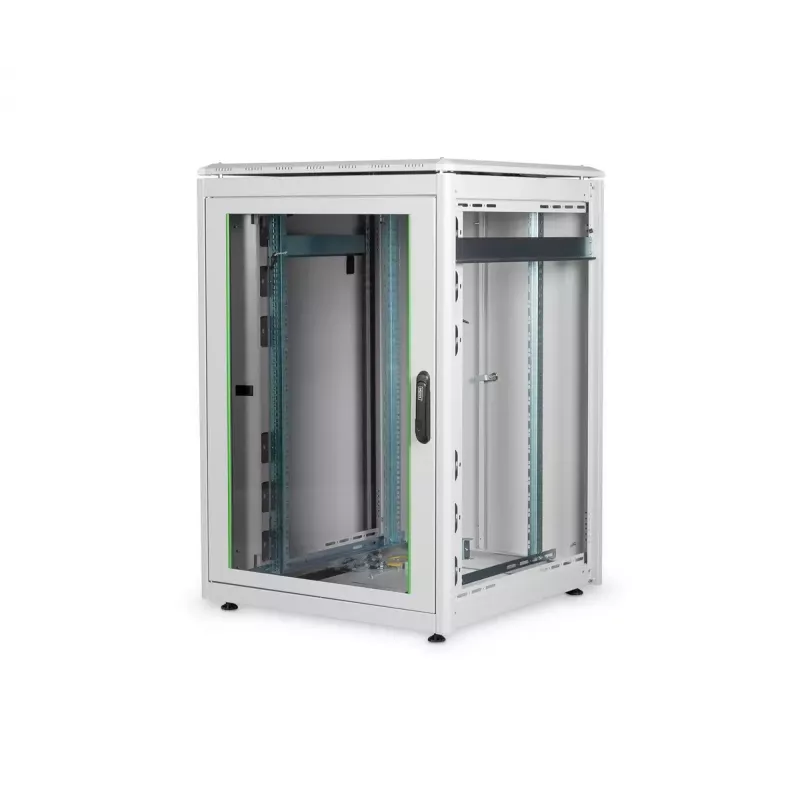

Rack independiente Digitus DN-19 22U-8/8-1

The Freestanding rack Digitus DN-19 22U-8/8-1 from the DIGITUS® Unique Series is a 22U network cabinet with external dimensions 800 x 800 mm (WxD) and a height of 1164 mm. Built from up to 1.5 mm thick sheet steel and finished in grey (RAL 7035), this IP20-rated freestanding rack supports up to 800 kg and is designed for indoor IT infrastructure installations that require durable, modular and accessible cabling and equipment mounting.

Advantages

The cabinet features a special removable roof cover with ventilation slits and a dedicated construction for easy installation of a fan unit, a front door lock with pivot lever prepared for a profile half cylinder (adapter included) and removable, switchable hinges for flexible access. Cable management is facilitated by sliding cable entries with rubber sealing at the base, brush-equipped inlets in roof and floor (from 26U models upward), foam rubber sealed sliding floor inlets and brush management panels on the rear door area. Two pairs of galvanized 483 mm (19”) profile rails with rack unit markings readable in both directions are depth-adjustable and supported by additional depth bars.

Suitable for

• Server and network equipment installation in office or data-room environments
• Structured cabling and patch panel mounting
• Medium-density rack deployments requiring up to 22U of equipment
• Indoor IT infrastructure where IP20 protection and robust steel construction are sufficient

Key specifications

• Model: Digitus DN-19 22U-8/8-1
• Series: DIGITUS® Unique Series
• Capacity: 22U
• Dimensions (WxD): 800 x 800 mm
• Height: 1164 mm
• Material: Sheet steel up to 1.5 mm
• Max load: 800 kg
• IP rating: IP20 (indoor use)
• Finish: Grey (RAL 7035)
• 19" profile rails: two pairs of galvanized 483 mm rails, depth-adjustable

How to use

Place the freestanding rack on a level, stable floor inside a dust-controlled, indoor environment. Fit equipment into the 19" profile rails and adjust rail depth to suit mount depth, securing devices with appropriate rack screws. Use the sliding cable entry and rubber-sealed base inlet for routing power and network cabling; use brush-equipped roof and floor inlets where available to maintain cable organization and reduce dust ingress. Install the optional fan module into the removable roof cover area if additional ventilation is required. Lock or remove side panels and doors as needed for installation and maintenance; door hinges can be switched to change opening direction.

Recommendations

For best performance and safety, install the rack in a dedicated, ventilated equipment room with appropriate cooling and access control. Avoid exposure to moisture and corrosive environments consistent with the IP20 rating. Distribute heavy equipment evenly and secure racks to the floor or ancillary support if local regulations or site conditions require additional stabilization.
