Switch gestionado L3 Gigabit Ethernet PLANET SGS-6310-48T6X 48 puertos 1U

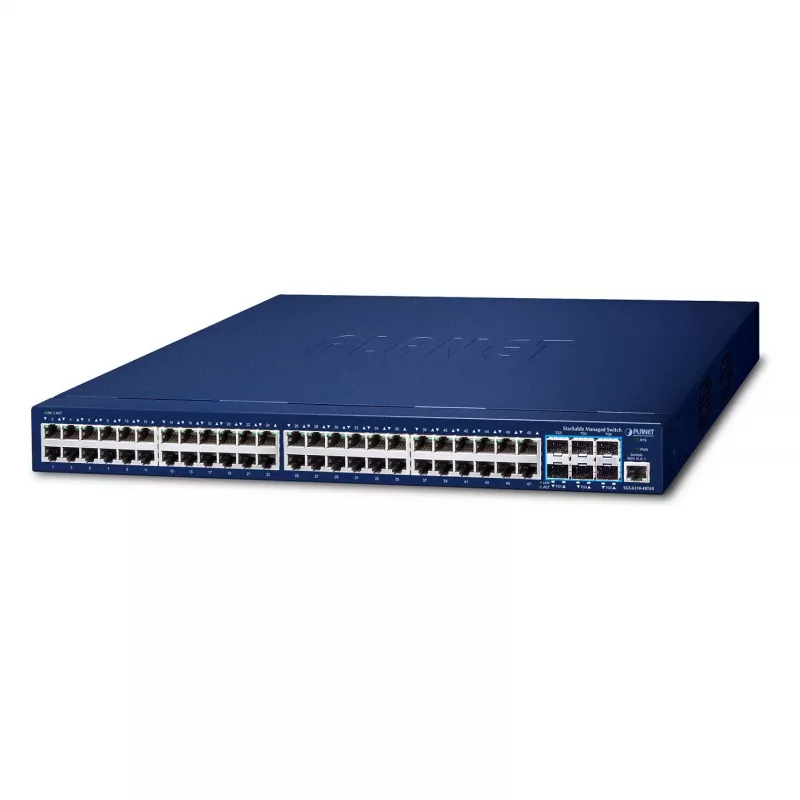

The PLANET SGS-6310-48T6X is a managed Layer 3 gigabit Ethernet switch in a 1U rack-mountable chassis, offering 48 10/100/1000BASE-T RJ45 ports and six 1G/10G SFP+ uplink ports. With a 216 Gbit/s switching capacity and support for IPv4/IPv6 routing, dynamic routing (RIP, OSPF), ERPS ring protection and rich Layer 2–4 features, the SGS-6310-48T6X is designed for enterprise, service provider and campus networks that require high port density, flexible uplink options and resilient stacking capabilities.

Advantages

The switch delivers non-blocking wire-speed performance across its SFP+ and RJ45 ports, flexible dual-speed SFP+ support (10G/1G), centralized hardware stacking using SFP+ uplinks, and redundant ring protection with fast recovery. It provides extensive Layer 2 functionality (VLAN, Q-in-Q, link aggregation, MSTP, IGMP snooping), comprehensive Layer 3 routing options, advanced multicast handling, full IPv6 support and integrated security features including ACLs, 802.1X, DHCP snooping, IP Source Guard and Dynamic ARP Inspection.

Suitable for

• Enterprise access and aggregation layers
• Campus and school network backbones
• Service provider and telecom aggregation sites
• Environments requiring redundant ring topologies and fast failover

Key specifications

• Ports: 48 x 10/100/1000BASE-T RJ45, 6 x 1G/10G SFP+
• Switching capacity: 216 Gbit/s
• MAC address table: 16,000 entries
• Layer 3: IPv4/IPv6 static routing, RIP, OSPF
• Layer 2: 802.1Q VLAN, Q-in-Q, MSTP, IGMP snooping, MVR, link aggregation (up to 64 groups, 8 ports/group)
• Redundancy: ITU-T G.8032 ERPS, MSTP
• Security: L2–L4 ACL, 802.1X, RADIUS, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
• Management: Web GUI, CLI (console/Telnet), SNMPv3, SSH v1/v2, TLSv1.2
• SFP diagnostics: DDM (SFP-DDM) support
• Dimensions/weight: 1U rack, weight approx. 4.3 kg

How to use

Install the SGS-6310-48T6X in a standard 19-inch rack and connect access devices to the RJ45 ports while using the SFP+ ports for uplinks or stacking links. Configure basic switch settings via the web-based GUI or the command-line interface; set VLANs, link aggregation and QoS according to your network design. For routed environments, enable static routes or configure RIP/OSPF as required. Use SFP+ ports with compatible SFP/SFP+ transceivers (1G or 10G) matched to the required distance and media type.

Recommendations

Use two SFP+ ports to form hardware stacks or redundant uplinks for higher bandwidth and centralized management. Enable ERPS or MSTP in ring topologies for sub-10 ms recovery where low downtime is required. Regularly monitor SFP-DDM readings and enable SNMPv3/SSH for secure remote management.
