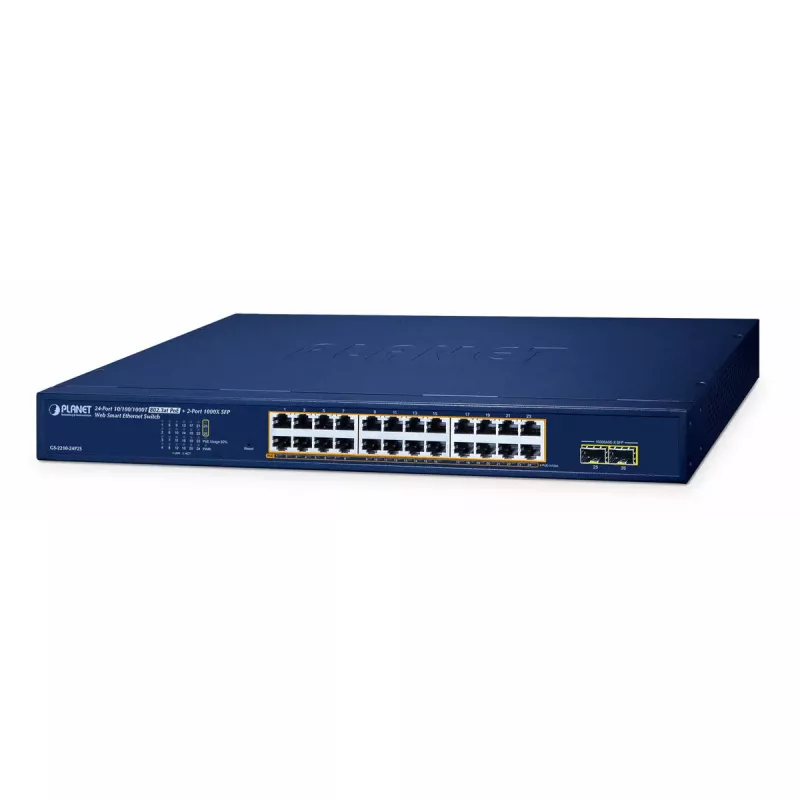

Switch gestionado PLANET GS-2210-24P2S 24 puertos 10/100/1000T PoE 260W

The PLANET GS-2210-24P2S is a managed Layer 2 Ethernet switch with 24 Gigabit 10/100/1000BASE-T ports, two Gigabit SFP slots and a total PoE budget of up to 260 W. Designed for small and medium businesses and enterprises, it supports PoE+ (802.3at) on RJ-45 ports to power IP cameras, wireless access points and VoIP phones while offering VLAN, IGMP, QoS, link aggregation and other L2 management features for reliable network operation. Integrated with PLANET’s UNI-NMS and NMSViewerPro, the switch enables centralized and remote device monitoring, configuration and power management via local GUI, mobile app or cloud-based NMS agents.

Advantages

The GS-2210-24P2S combines high PoE power (260 W) and 24 Gigabit ports with advanced Layer 2 functions and remote management, allowing centralized control of up to large deployments through UNI-NMS and convenient local management using NMSViewerPro. Built-in PoE management tools include PD alive check, PoE schedule, PoE priority, power limit and usage monitoring. Additional features such as ONVIF device discovery, SFP fiber extension and robust VLAN/IGMP support improve flexibility and simplify deployment for surveillance, wireless and enterprise networks.

Suitable for

• IP camera surveillance systems and NVR/ONVIF deployments
• Wireless access point backhaul and campus Wi‑Fi
• VoIP phones and unified communications
• Small-to-medium enterprise network cores and distribution

Key specifications

• Ports: 24 x 10/100/1000BASE-T RJ-45, 2 x Gigabit SFP slots
• PoE: IEEE 802.3at PoE+, 32 W per port (max), total budget up to 260 W
• Switching capacity: 52 Gbit/s
• Layer 2 features: 802.1Q VLAN, IGMP snooping, QoS, link aggregation, MSTP
• Management: Web GUI, SNMP/UNI-NMS, NMSViewerPro mobile/cloud support
• ONVIF: IP camera discovery and control via GUI (up to 24 PLANET ONVIF IP cameras)
• Weight and color: approx. 2.5 kg, blue

How to use

Install the switch in a rack or on a flat surface and connect uplink fiber or Ethernet to the backbone using the SFP or RJ-45 ports. Connect PoE-powered devices (IP cameras, APs, VoIP phones) to the RJ-45 ports. Access the web management interface or NMSViewerPro app to configure VLANs, QoS, link aggregation and PoE settings. For remote centralized management, register and pair the switch with PLANET UNI-NMS by scanning the NMS agent QR code in the mobile application or adding the device in the NMS console.

Recommendations

For reliable operation, plan PoE budget per port and overall power usage to avoid over-commitment. Use PoE schedule to disable ports outside business hours for energy savings and increased security. When deploying cameras over long distances, use appropriate SFP transceivers (multi-mode or single-mode) for the required fiber span and enable PD alive check to automatically reset unresponsive devices.
