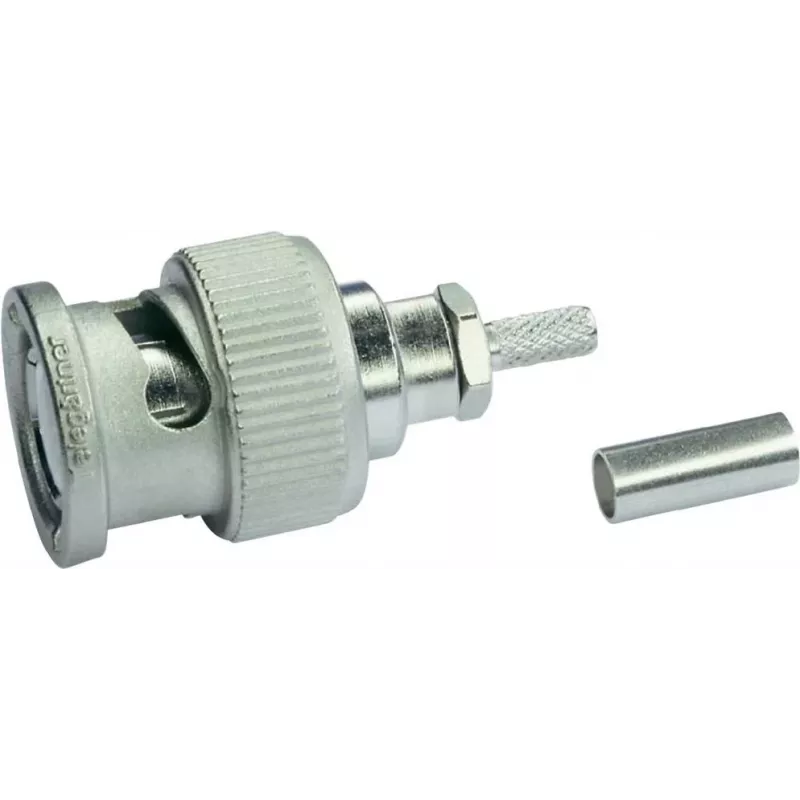

Telegärtner Conector macho BNC para cable crimp G07 / G29 50 ohmios, Professional, para RG-316/U y 0,45/1,4, 1 unidad J01000A1294

This BNC plug from Telegärtner's Professional series is engineered for reliable crimp termination on two specific cable groups: G07 (RG-316/U) and G29 (0.45/1.4). Unlike generic BNC connectors, it is impedance-matched to 50 Ohm and built with a gold-plated centre contact and nickel-plated brass body for consistent signal integrity up to 4 GHz.

Highlights

• Male BNC connector for coaxial cables
• 50 Ohm impedance, Professional series
• Crimp termination for inner and outer conductor
• Compatible with RG-316/U (G07) and 0.45/1.4 (G29)
• Gold-plated centre contact, nickel-plated brass body
• PTFE dielectric for stable high-frequency performance
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V peak
• Operating temperature: -40 °C to +85 °C
• Durability: ≥500 mating cycles

In daily use

The crimp/crimp design ensures a secure, repeatable connection when installed with the appropriate crimp tool. The connector is suitable for laboratory, broadcast, and RF applications where a dependable 50 Ohm BNC interface is required. The gold-plated centre contact minimises contact resistance and corrosion over time.

Full specifications

• Connector type: BNC male (plug)
• Impedance: 50 Ohm
• Termination: Crimp (inner and outer)
• Cable groups: G07 (RG-316/U), G29 (0.45/1.4)
• Body material: Brass, nickel-plated
• Centre contact: Gold-plated brass
• Dielectric: PTFE
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V peak
• Insulation resistance: ≥5 GΩ
• Contact resistance inner: ≤1.5 mΩ
• Contact resistance outer: ≤1 mΩ
• Mating cycles: ≥500
• Operating temperature: -40 °C to +85 °C
• RoHS compliant: Yes

Final note

For professional RF installations where precise impedance matching and reliable crimp termination are critical, this Telegärtner BNC plug delivers consistent performance.
