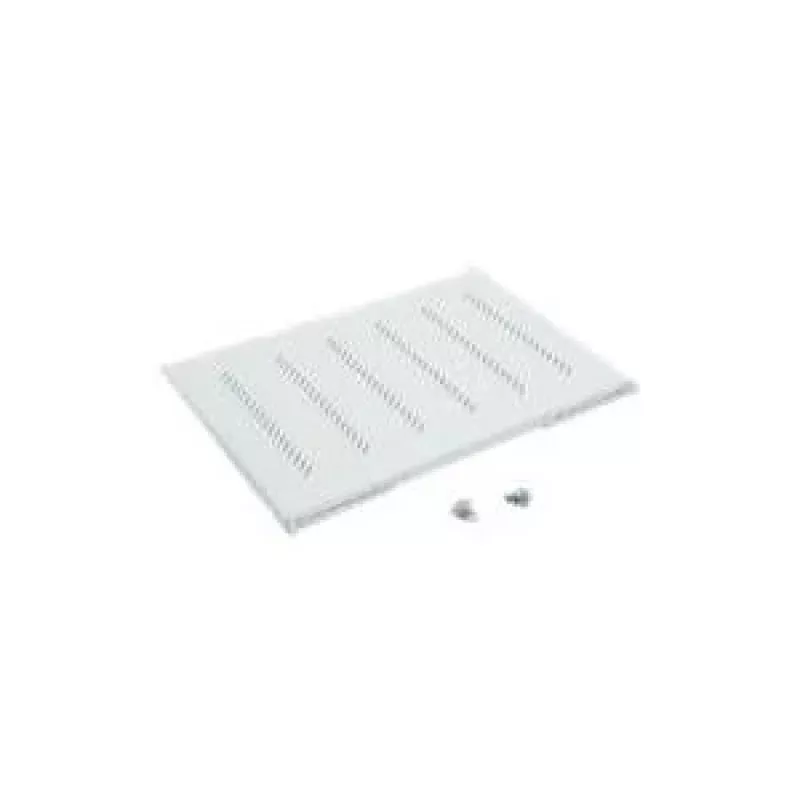

TRITON RAC-UP-950-H4 Bandeja de 19 pulgadas Heavy Duty, 1U, 950mm de profundidad, 150kg de capacidad, gris (RAL7035)

The TRITON RAC-UP-950-H4 is a robust 19-inch heavy-duty shelf designed to provide a stable base for heavy equipment such as servers, UPS units, and other devices that cannot be directly mounted to the 19-inch rack. With a load capacity of up to 150 kg and a depth of 950 mm, this shelf is ideal for deep cabinets and demanding installations.

Advantages

High load capacity of 150 kg allows safe placement of heavy equipment. Fixed design ensures stability and reliability. Compatible with standard 19-inch racks and cabinets. Includes all necessary mounting hardware for quick installation.

Suitable for

• Servers and server racks
• UPS systems
• Network devices
• Heavy equipment that cannot be rack-mounted directly

Key specifications

• Rack Size: 19 inch
• Rack Unit Height: 1U
• Depth: 950 mm
• Load Capacity: 150 kg
• Colour: Grey (RAL7035)
• Material: Sheet steel, powder coated
• Mounting: Fixed to front and rear 19" profile rails
• Distance between front/rear profile rail: 495 to 1050 mm
• Included Accessories: 8 screws M6x10, 8 plastic washers, 8 cage nuts M6, 4 screws M5x12
• Compliance: EIA-310-D

Recommendations

Ensure your rack cabinet has sufficient depth to accommodate the 950 mm shelf. Verify that the distance between front and rear mounting rails is within the adjustable range (495-1050 mm). For optimal stability, distribute weight evenly on the shelf.
