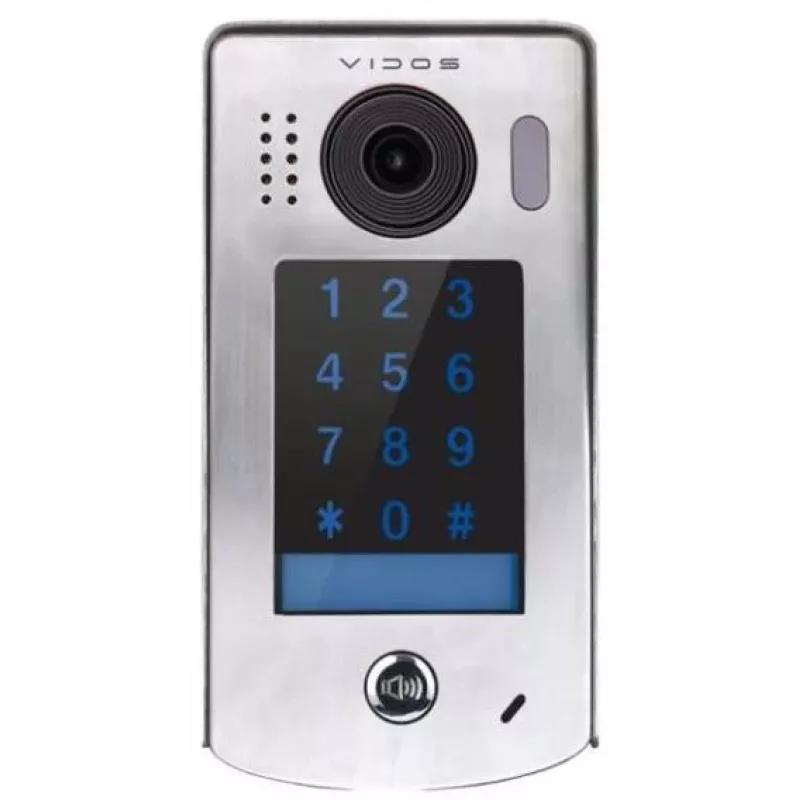

VIDOS DUO IP S302 Videoportero con RFID, cámara gran angular 2MP, IP65 acero inoxidable, montaje en superficie

Instead of forcing you to combine separate camera, intercom, and access modules, the VIDOS DUO IP S302 merges a 2MP wide-angle camera, built-in RFID reader, and dual relay outputs into one vandal-resistant stainless steel station. It runs on the 2-wire DUO bus for simple wiring and adds IP connectivity for flexible integration with your existing network.

Highlights

• 2.0 Mpx CMOS sensor with 170° wide-angle lens captures full HD video
• Integrated 125kHz RFID reader supports up to 1000 users
• Two relay outputs independently control gate and door locks
• IP65 weatherproof and IK07 impact-rated stainless steel front panel
• Backlit call button and nameplate ensure visibility at night
• Two-way audio with echo cancellation for clear communication

In daily use

At the gate, visitors press the illuminated call button; residents see and speak with them via the DUO indoor monitor. For frequent users, a simple RFID tag grants access without a key. The station operates from -30°C to +50°C, and its surface-mount design simplifies retrofits. Power is supplied directly from the DUO system (DC 24V), eliminating extra wiring.

Full specifications

• Product Type: Video Door Station / Gate Station
• System Compatibility: VIDOS DUO (2-wire non-polarized)
• Connectivity: IP (Ethernet RJ45)
• Camera Resolution: 2.0 Mpx (1080p)
• Camera Sensor: CMOS
• Lens: Wide-angle, 2.8mm
• Viewing Angle: 170°
• Night Vision: IR LEDs
• Access Control: Built-in RFID reader (125kHz), up to 1000 users
• Relay Outputs: 2 (for gate/door control)
• Housing Material: Stainless steel front panel
• Ingress Protection: IP65
• Impact Protection: IK07
• Mounting Type: Surface mount
• Power Supply: DC 24V (from DUO system)
• Operating Temperature: -30°C to +50°C
• Audio: Two-way audio, echo cancellation
• Buttons: 1 backlit call button, backlit nameplate

Final note

With its all-in-one design and robust construction, the VIDOS DUO IP S302 is a practical choice for secure entry control in residential or commercial settings.
