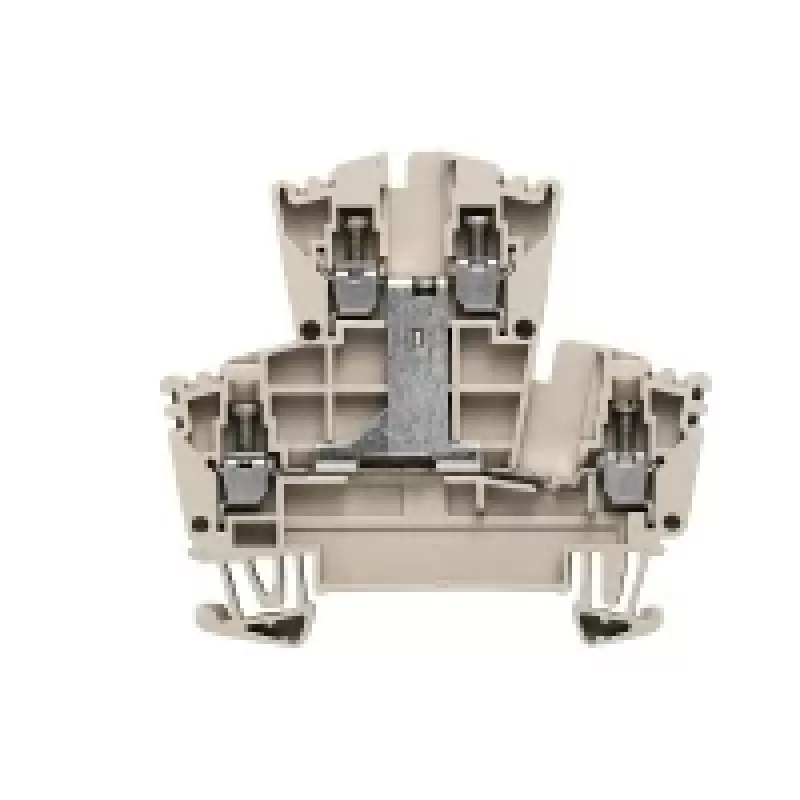

Weidmüller 1022300000 Borne pasante, 2 pisos, conexión por tornillo, 500 V, 24 A, 4 mm², beige oscuro

The Weidmüller 1022300000 is a high-quality feed-through terminal block designed for reliable electrical connections in industrial applications. With a double-level design and screw connection technology, it provides secure and durable wiring for solid and fine-stranded conductors up to 4 mm². Rated for 500 V and 24 A, this terminal block is ideal for use in control cabinets, distribution boards, and automation systems.

Advantages

This terminal block offers several benefits: double-level design saves space on the DIN rail, screw connection ensures vibration-proof and maintenance-free connections, and the Wemid insulation material provides excellent thermal and mechanical resistance. The wide operating temperature range from -50 °C to +120 °C makes it suitable for harsh environments.

Suitable for

• Industrial control panels and switchgear
• Building automation and distribution systems
• Machine and plant engineering
• Power supply and signal wiring

Key specifications

• Terminal Type: Feed-Through Terminal Block
• Number of Levels: 2 (Double-level)
• Number of Connections: 4
• Connection Technology: Screw Connection
• Rated Voltage (IEC): 500 V
• Rated Current (IEC): 24 A
• Rated Impulse Voltage: 6 kV
• Solid Conductor Cross-Section: 0.5 mm² to 4 mm²
• Fine-Stranded Conductor Cross-Section: 0.5 mm² to 4 mm²
• Wire Stripping Length: 10 mm
• Screw Thread: M 2.5
• Tightening Torque: 0.4 - 0.8 Nm
• Mounting Type: DIN Rail TS 35
• Insulation Material: Wemid
• Color: Dark Beige
• Operating Temperature: -50 °C to +120 °C
• Flammability Rating: UL 94 V-0
• Pollution Degree: 3

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. Always follow local electrical codes and manufacturer guidelines for installation.
