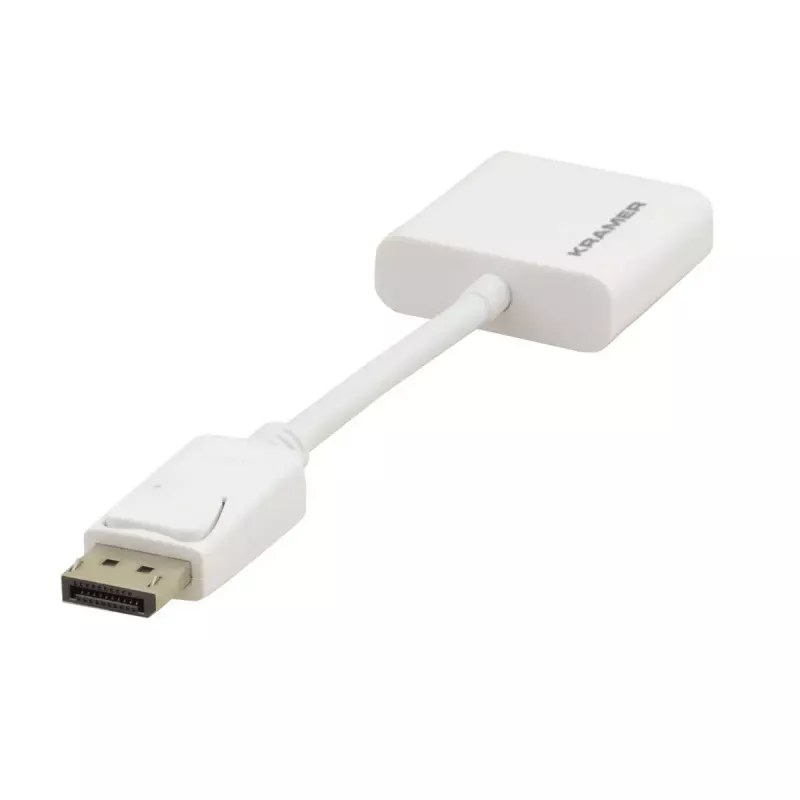

Adaptador de cable de vídeo DisplayPort HDMI Type-A Kramer Electronics ADC-DPM/HF/UHD

Kramer ADC−DPM/HF/UHD is an active DisplayPort-to-HDMI Type A adapter that enables connection of a DisplayPort-equipped PC or laptop to an HDMI display. The adapter performs true conversion when the source does not support DP++ and operates with either DisplayPort single-mode or dual-mode outputs. It supports UHD video up to 4K@60Hz (4:4:4) and HDCP 2.2 for protected content playback.

Advantages

This Kramer DisplayPort to HDMI adapter provides reliable signal conversion from a male DisplayPort connector to a standard HDMI Type A output. As an active converter it ensures compatibility with sources that lack DP++ support, preserves high-resolution video up to 4K@60Hz (4:4:4), and supports HDCP 2.2 for content protection. Its compact design facilitates straightforward connectivity between laptops, desktops, and HDMI displays.

Suitable for

• Connecting DisplayPort-equipped laptops to HDMI monitors or TVs
• Connecting desktop PCs with DisplayPort outputs to HDMI projectors
• Workstations or media players that require HDCP 2.2 compatibility

Key specifications

• Brand: Kramer
• Model: ADC−DPM/HF/UHD
• MPN: 99-97220002
• EAN: 7291063086503
• Input: Male DisplayPort
• Output: HDMI Type A (Standard)
• Video support: up to 4K@60Hz (4:4:4)
• HDCP: 2.2
• Converter type: Active DisplayPort to HDMI

How to use

Insert the male DisplayPort connector into the source device's DisplayPort output. Connect an HDMI cable from the adapter's HDMI Type A output to the HDMI input of the display. Power is provided by the DisplayPort source when supported; if additional power is required follow the manufacturer's instructions. Configure the source's display settings to the desired resolution and refresh rate — the adapter supports up to 4K@60Hz (4:4:4).

Recommendations

Use high-quality HDMI cables rated for UHD bandwidth to ensure full 4K@60Hz performance. If the source or display has firmware or driver updates available, apply them to ensure optimal compatibility. Verify that the source output is set to a resolution and refresh rate supported by the display.
