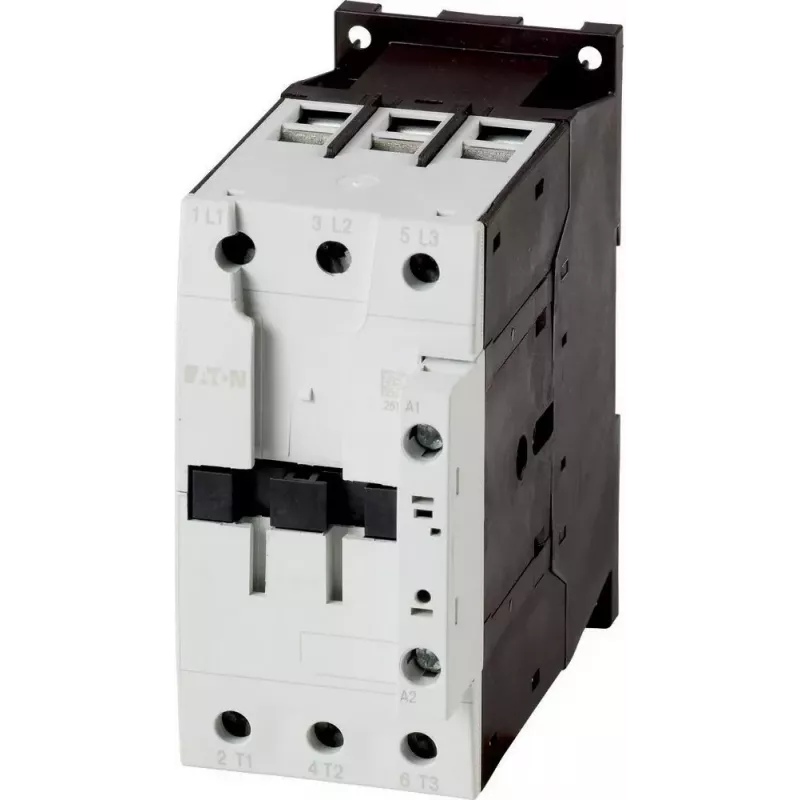

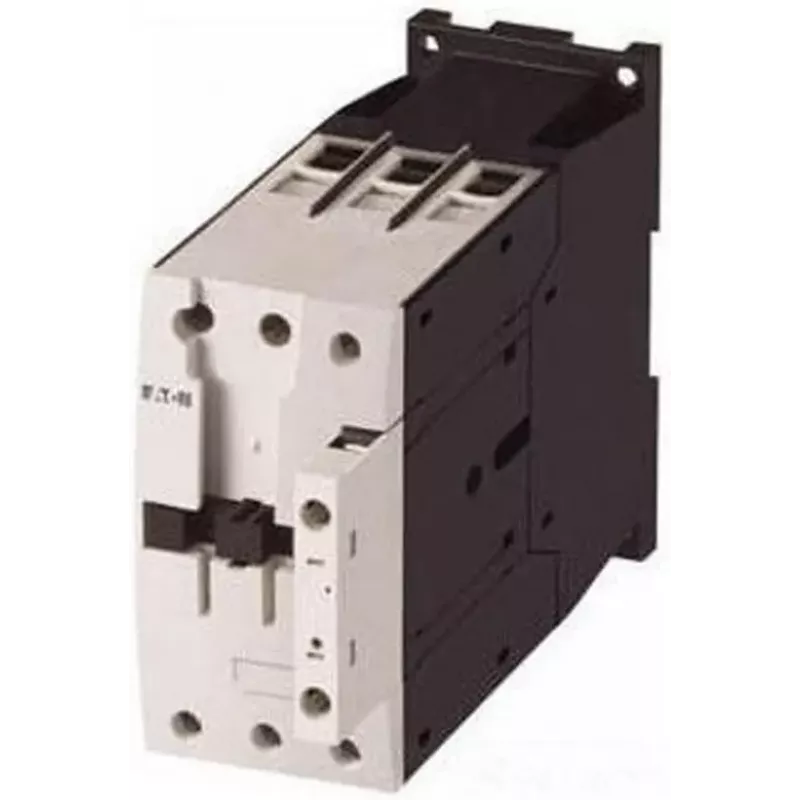

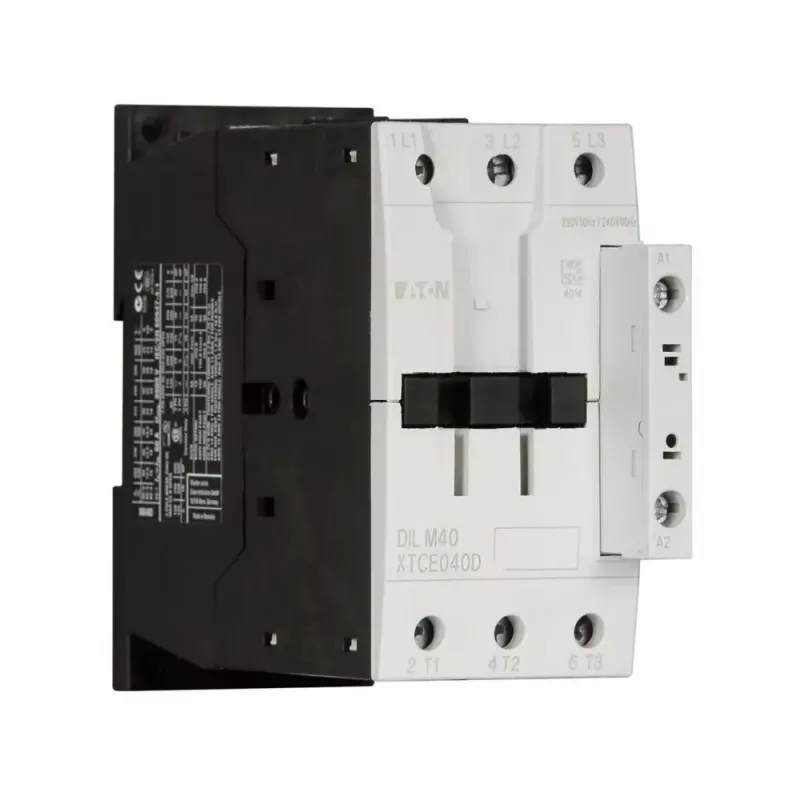

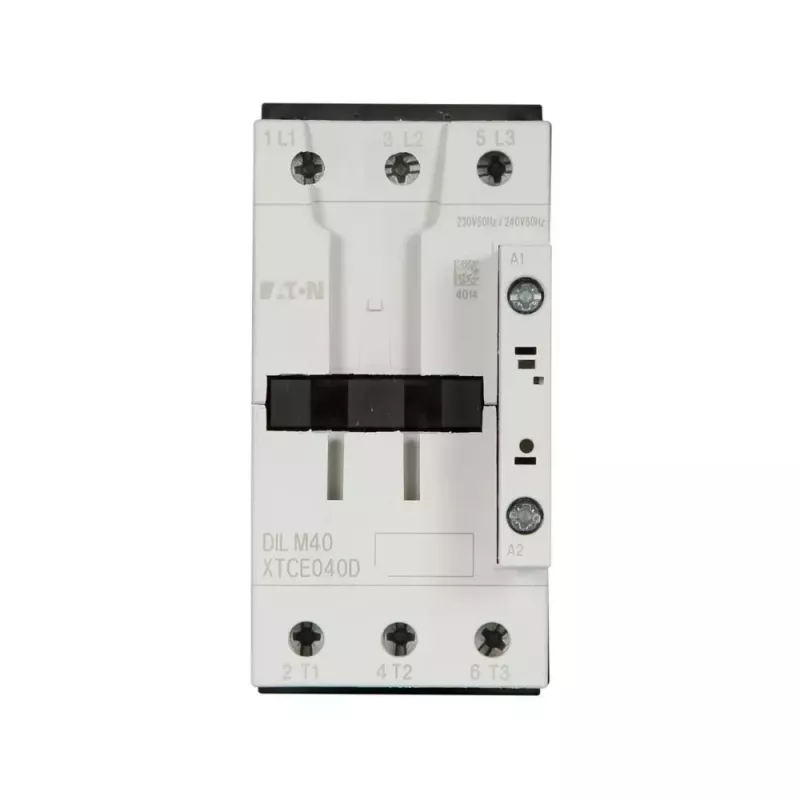

Contactor tripolar Eaton DILM40, bobina 230 V 50 Hz / 240 V 60 Hz, 18,5 kW AC-3 400 V, 1NO+1NC

Panel builders and maintenance technicians in motor control centers, HVAC systems, and pump stations rely on the Eaton DILM40 contactor for dependable switching of three-phase motors up to 18.5 kW at 400 V AC-3. Its coil accepts 230 V at 50 Hz or 240 V at 60 Hz, making it suitable for both European and North American control circuits. The 3-pole main contacts handle 40 A AC-3, while one normally open and one normally closed auxiliary contact provide status feedback or interlocking. Screw terminals and DIN rail or screw mounting simplify installation.

Key specifications

• Rated operational current: 40 A (AC-3, 400 V)
• Rated operational power: 18.5 kW (AC-3, 400 V)
• Coil voltage: 230 V AC (50 Hz) / 240 V AC (60 Hz)
• Utilization category: AC-3
• Number of poles: 3
• Auxiliary contacts: 1 NO + 1 NC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Degree of protection: IP20
• Mounting: DIN rail or screw
• Terminal type: screw terminals
• Standards: IEC/EN 60947

Why choose it

The DILM40 combines proven Eaton contactor technology with a wide coil voltage tolerance, ensuring reliable pull-in even with voltage fluctuations. Its compact footprint and flexible mounting options reduce panel space and wiring time. High mechanical and electrical endurance—10 million mechanical operations and 1.5 million electrical operations at AC-3—translate to long service life in demanding applications.

Ideal use cases

• Motor starting and stopping in industrial machinery
• HVAC compressors and fans
• Pump control

Good to know

This contactor is compliant with IEC/EN 60947 and offers a rated operational current of 60 A in AC-1 category at 690 V. For short-circuit protection, a 63 A gG/gL fuse is recommended in AC-3 applications. The operating temperature range is -25 to +60 °C.
