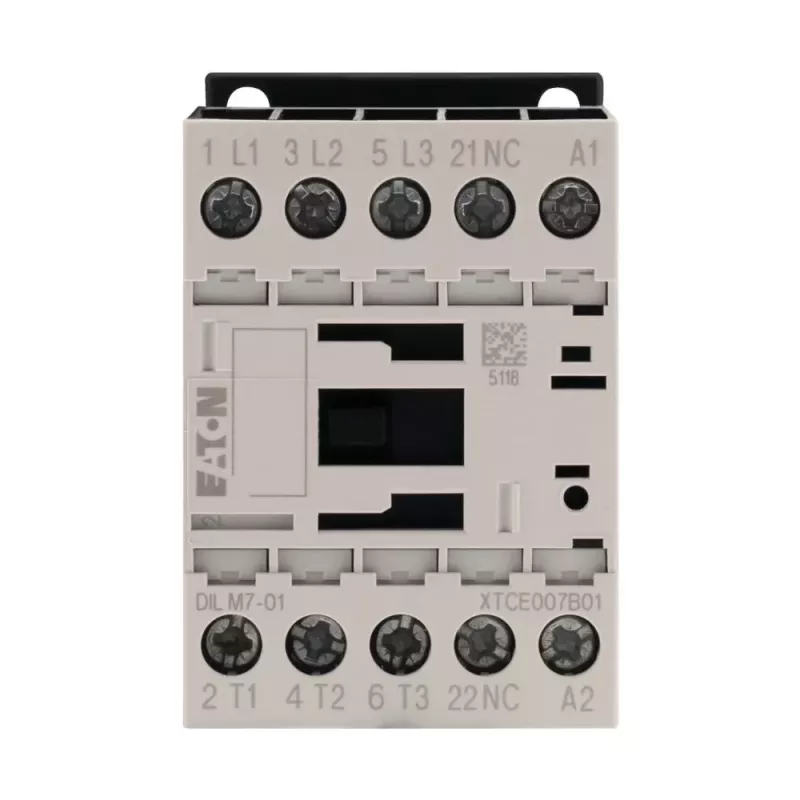

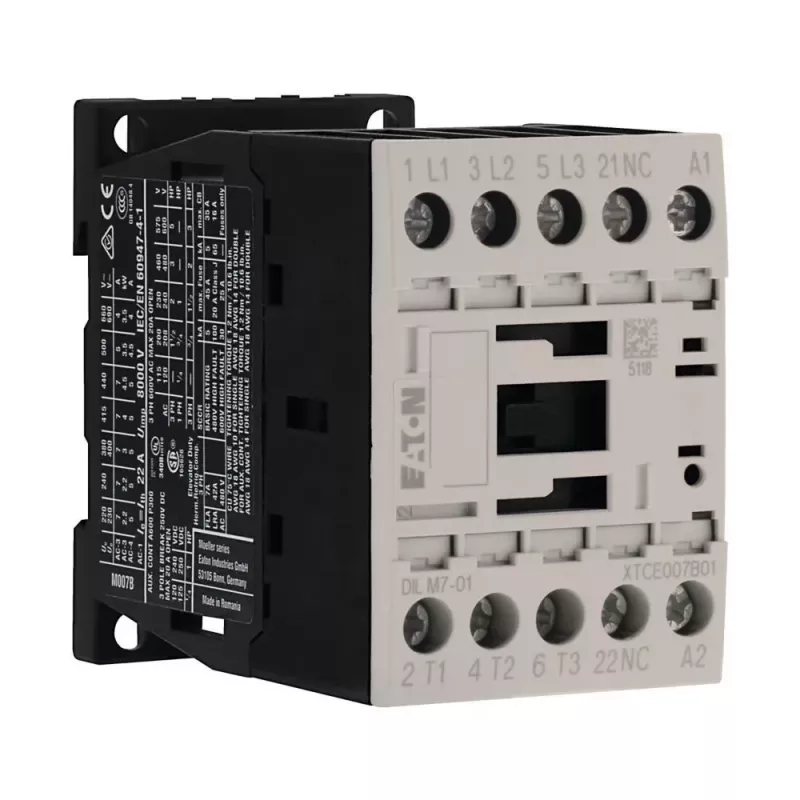

Eaton DILM7-01 contactor, tripolar, 7 A, bobina 230 V AC 50 Hz / 240 V AC 60 Hz, 1 contacto auxiliar NC 276585

With a rated operational current of 7 A at AC-3 (400 V), the Eaton DILM7-01 contactor delivers reliable switching for motors up to 3 kW. Its coil accepts 230 V AC at 50 Hz or 240 V AC at 60 Hz, making it suitable for a wide range of industrial control circuits.

Overview

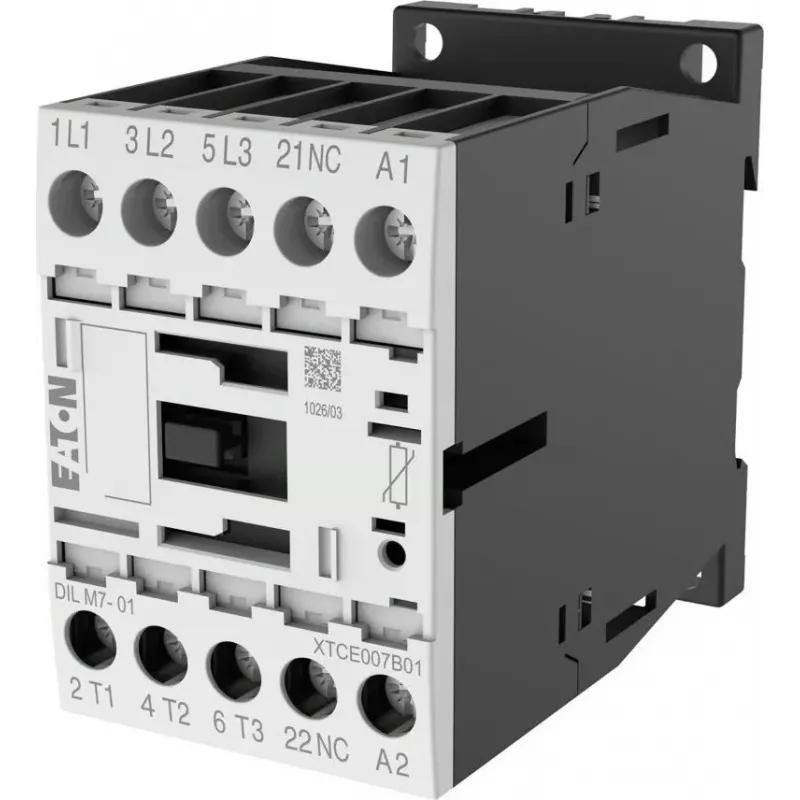

The Eaton DILM7-01 is a 3-pole contactor from the DILM series, featuring three normally open main contacts and one normally closed auxiliary contact. It is designed for DIN rail or screw mounting and uses screw terminals for secure wiring. The contactor complies with IEC/EN 60947 standards.

What stands out

• 3 NO main poles and 1 NC auxiliary contact for flexible control schemes.
• Rated insulation voltage of 690 V and impulse withstand voltage of 6 kV for robust insulation.
• Wide operating temperature range from -25 °C to +60 °C.
• Mechanical durability of 10 million operations for long service life.

Technical details

• Rated operational current (AC-3, 400 V): 7 A
• Rated operational power (AC-3, 400 V): 3 kW
• Rated operational current (AC-1, 400 V): 22 A
• Coil voltage: 230 V AC (50 Hz) / 240 V AC (60 Hz)
• Degree of protection: IP20
• Mounting: DIN rail or screw
• Terminals: Screw
• Short-circuit protective device (gG/gL): 20 A

Our verdict

A dependable contactor for small motor loads, the DILM7-01 offers solid performance and easy installation in industrial environments.
