EMITER EM/AH6506 Armario de red de pared 19" 6U, puerta de cristal templado, 600×550×370 mm, negro

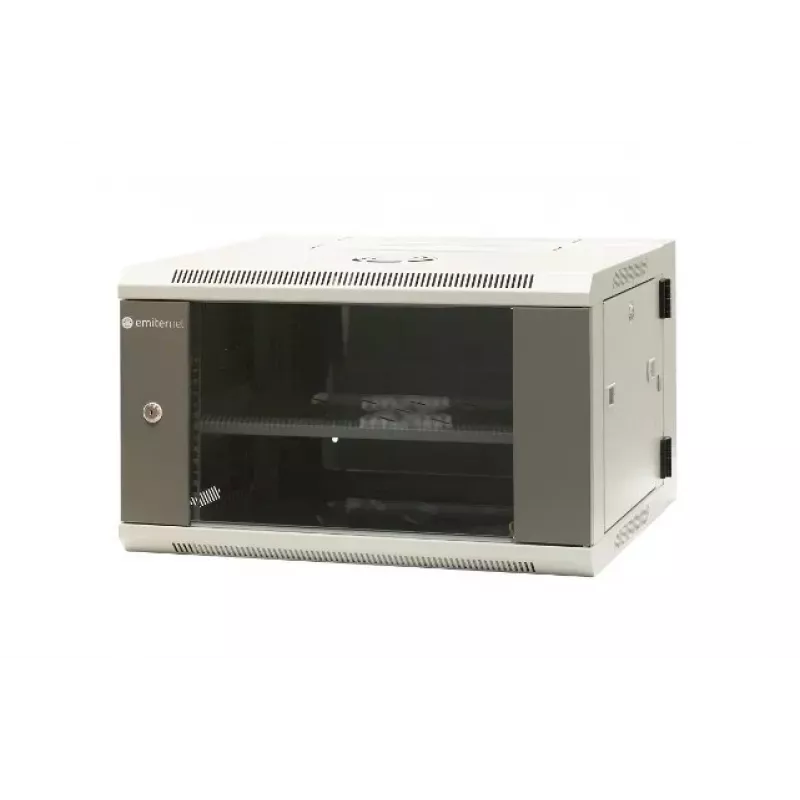

With a robust 60 kg static load capacity, this 6U wall-mount cabinet secures your networking gear in a compact, well-ventilated footprint. The EMITER EM/AH6506 combines a tempered glass front door with a solid steel body, offering both visibility and protection for patch panels, switches, and small servers.

Overview

The EM/AH6506 is a 19-inch wall-mount cabinet with 6 rack units of space. Its external dimensions are 600 mm wide, 550 mm deep, and 370 mm high, making it suitable for shallow network equipment. The cabinet is pre-assembled, so you can mount it and start installing hardware right away.

What stands out

• Tempered glass front door with lock – see status LEDs at a glance while keeping unauthorized access out.

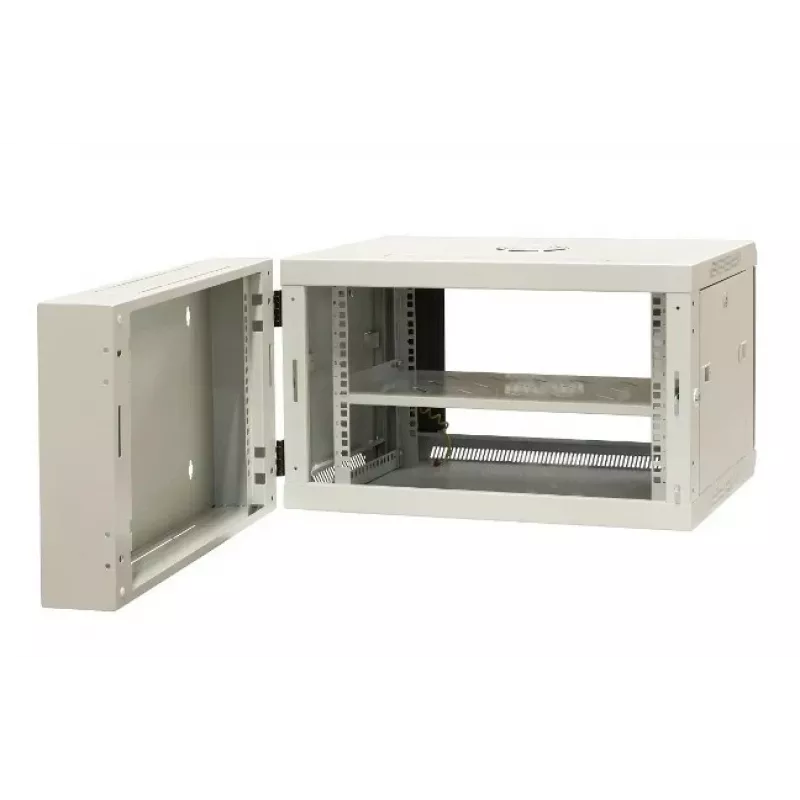

• Removable solid steel side panels – easy access for cabling and maintenance.
• Top and bottom cable entry with brush strips – clean cable routing without dust ingress.
• Passive ventilation with fan cutouts on top – add active cooling if needed.
• Powder-coated SPCC cold rolled steel – durable finish in black (RAL 9004).

Technical details

• Rack standard: 19 inch
• Rack units: 6U
• External dimensions (W × D × H): 600 × 550 × 370 mm
• Material: SPCC cold rolled steel
• Front door: tempered glass with lock
• Side panels: removable, solid steel
• Surface finish: powder coated
• Color: black (RAL 9004)
• Max static load capacity: 60 kg
• Cable entry: top and bottom with brush strips
• Ventilation: passive, fan cutouts on top
• Mounting: wall-mounted
• IP rating: IP20
• Assembly: pre-assembled

Our verdict

A solid, pre-assembled wall-mount cabinet that balances security, visibility, and ventilation for compact network installations.
