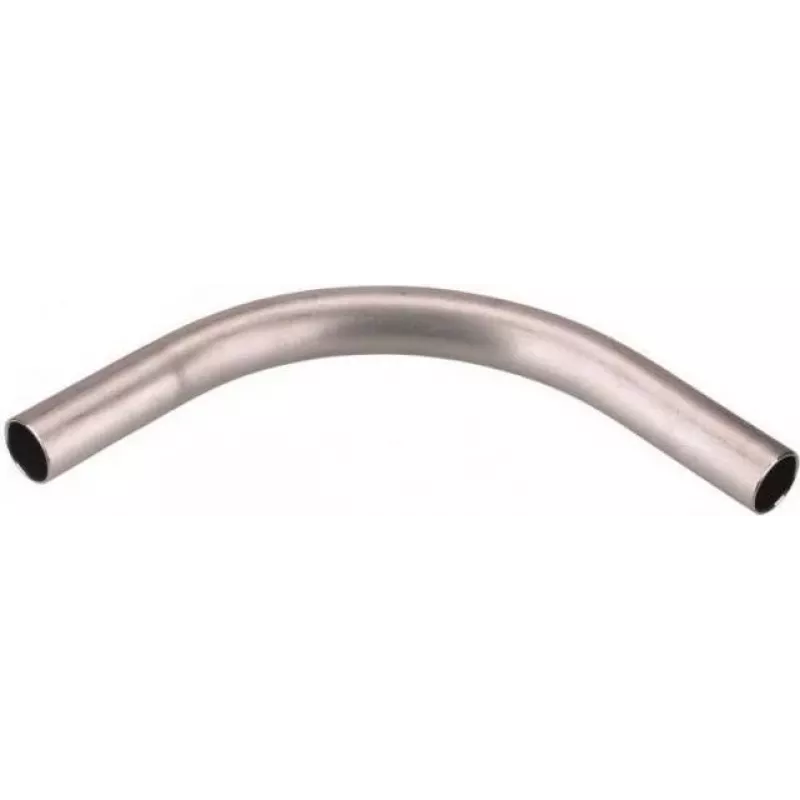

FRAENKISCHE codo de empalme de aluminio ABS-E 25, M25, 90° para tubo de 25 mm

Electricians and panel builders routing rigid aluminium conduits in industrial plants or outdoor installations often face the challenge of changing direction without compromising protection. The FRAENKISCHE ABS-E 25 aluminium plug-in bend provides a robust 90° elbow for conduits with a 25 mm outer diameter. Its M25 threaded entries accept standard fittings, and the plug-in design speeds up assembly on site or in the workshop. The metallic aluminium body matches the conduit, ensuring a consistent appearance and high mechanical strength.

Key specifications

• Type: 90° conduit bend / elbow
• Nominal diameter: M25
• Compatible conduit outer diameter: 25 mm
• Material: Aluminium
• Connection: Plug-in (Steck)
• Protection class: IP67 when installed with suitable conduits and accessories
• Temperature range: -45 °C to +250 °C
• Halogen-free, UV-resistant, high corrosion resistance
• Standard compliance: EN 61386-21

Why choose it

The ABS-E 25 bend is built for demanding environments. Its aluminium construction withstands high compression and impact loads, while the wide temperature range covers both freezing cold and extreme heat. The plug-in connection reduces installation time and eliminates the need for special tools. Because it is halogen-free and UV-resistant, it is safe for use in public buildings and outdoor areas exposed to sunlight.

Ideal use cases

• Routing rigid aluminium conduits around corners in machine tools and production lines
• Outdoor cable protection on building facades or industrial equipment
• Panel building where space is limited and reliable bends are required

Good to know

The ABS-E 25 is part of the FRAENKISCHE aluminium conduit system and is designed to work seamlessly with other components such as conduits, couplings, and fittings. Its metallic finish provides a professional appearance and ensures long-term durability even in harsh environments.
