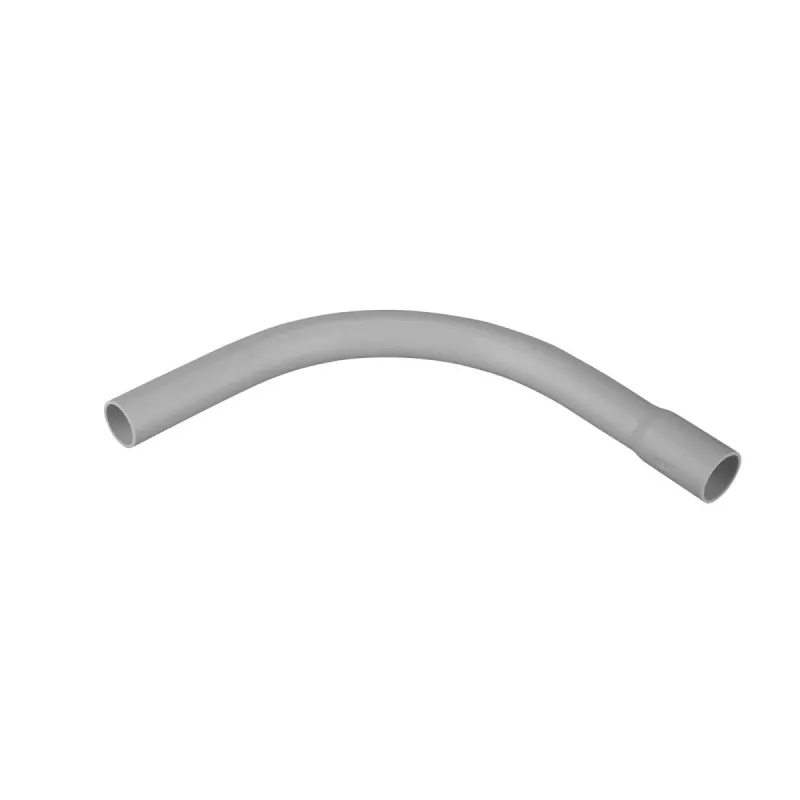

FRAENKISCHE SBSKu-EM 16 codo de tubo de plástico gris 90° para sistemas FPKu-EM-f y SBSKu-EM

This 90° plastic conduit bend from FRAENKISCHE ROHRWERKE provides a secure push-fit connection for 16 mm corrugated conduits, specifically engineered for FPKu-EM-f and SBSKu-EM systems. Its grey polypropylene construction ensures reliable cable routing in electrical installations, combining quick assembly with robust mechanical protection.

Advantages

The SBSKu-EM 16 bend offers tool-free installation thanks to its push-fit design, significantly reducing assembly time on site. The halogen-free plastic material is flame retardant and withstands temperatures from -5°C to +60°C, making it suitable for a wide range of indoor environments. Its compact 90° angle allows for neat directional changes without compromising the conduit's protective function.

Suitable for

• Electrical installation in residential and commercial buildings
• Routing of cables in FRAENKISCHE FPKu-EM-f and SBSKu-EM conduit systems
• Indoor applications where a flame-retardant, impact-resistant bend is required
• Use with 16 mm nominal diameter corrugated conduits

Key specifications

• Nominal diameter: 16 mm
• Bend angle: 90°
• Material: Plastic (polypropylene)
• Colour: Grey
• Connection type: Push-fit / plug-in
• Compatible conduits: FPKu-EM-f, SBSKu-EM
• Temperature resistance: -5°C to +60°C
• Flame retardant: Yes
• Halogen-free: No
• Standard: EN 61386-21
• Mounting type: Plug-in

Recommendations

For optimal performance, pair this bend with FRAENKISCHE FPKu-EM-f or SBSKu-EM conduits of the same nominal diameter. Ensure the conduit ends are cut cleanly before insertion to maintain a secure connection.
