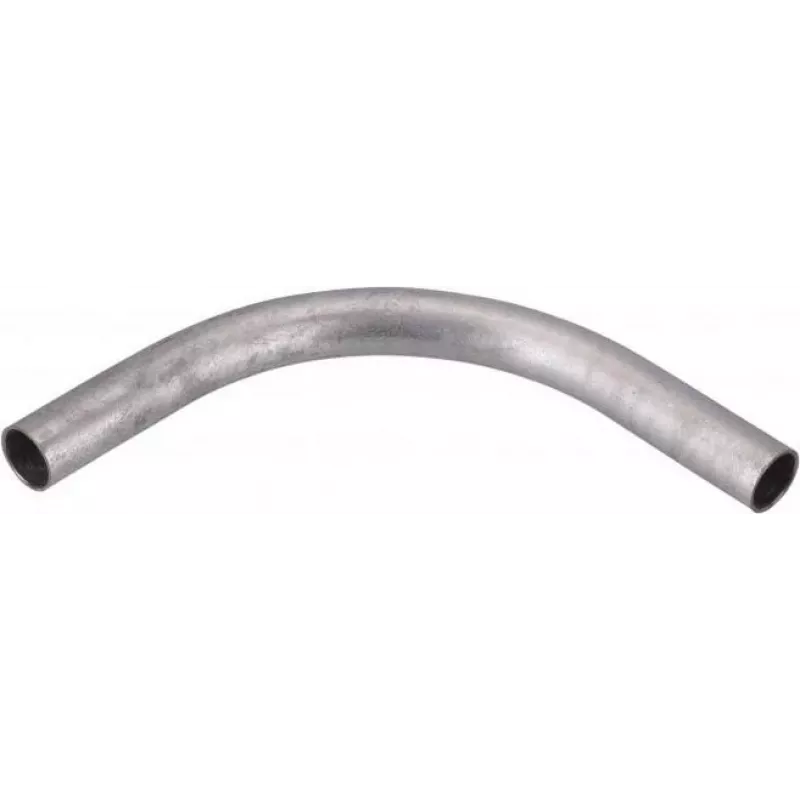

FRAENKISCHE STARO codo de tubo de acero SBS-E-V 25 galvanizado en caliente M25 20560025

On a heavy machinery production line, cable routing faces constant vibration, impact, and exposure to corrosive atmospheres. The FRAENKISCHE STARO Steel Conduit Bend SBS-E-V 25 provides a rugged 90° direction change for M25 steel conduits, maintaining system integrity under extreme conditions. Electricians and panel builders trust its hot-dip galvanized steel construction to protect cables in the harshest industrial environments.

Key specifications

• Nominal size: M25 (DN 25 mm)
• Bend angle: 90° with radius 100 mm
• Material: Steel, hot-dip galvanized
• Connection: Plug-in for STARO rigid steel conduit system
• Compression strength class 5 (>4000 N)
• Impact resistance class 5 (>20 J)
• Corrosion protection class 4 (very high)
• Temperature range: -45°C to +400°C
• Halogen-free and flame retardant
• Standard: DIN EN 61386-21

Why choose it

The SBS-E-V 25 is engineered for the harshest electrical environments. Its heavy-gauge steel construction and hot-dip galvanizing provide outstanding corrosion resistance, while the very heavy compression and impact ratings ensure the conduit run remains intact even under severe mechanical stress. The plug-in connection speeds installation without compromising on a secure, durable joint.

Ideal use cases

• Heavy industrial machinery and production lines
• Outdoor cable management in corrosive atmospheres
• Infrastructure projects requiring high mechanical protection
• Retrofitting or extending existing STARO conduit systems

Good to know

This bend is part of the STARO steel conduit system, designed for reliable performance in demanding applications. Its compliance with DIN EN 61386-21 ensures quality and compatibility.
